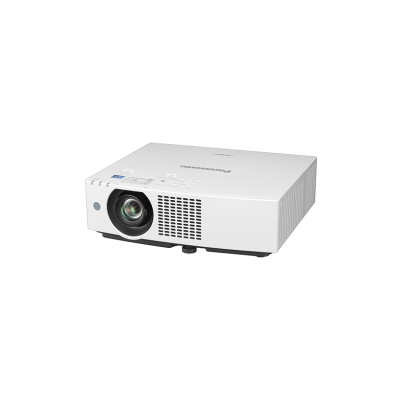

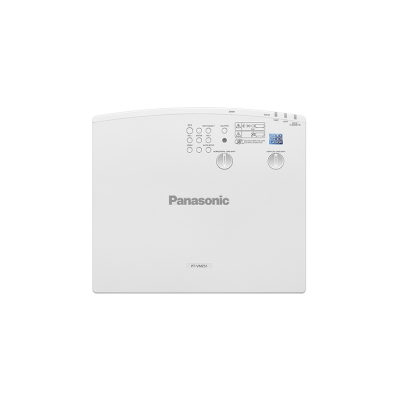

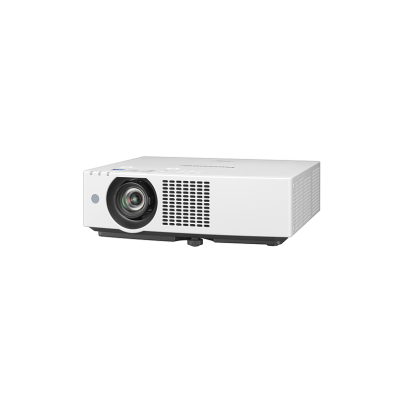

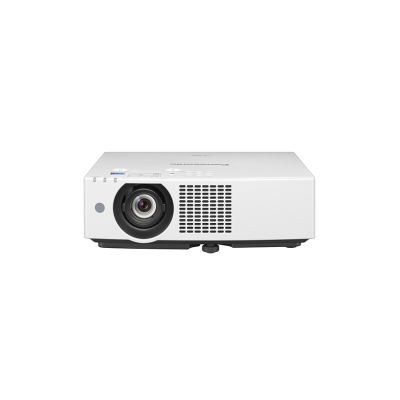

Projector Panasonic PT-VMZ51 WUXGA LCD Laser 5,200lm (White)

Brand : Panasonic

Description : LCD Laser Projector 5,200lm, WUXGA

SKU : PT-VMZ51

Projector type : LCD projectors

Size : 16.3 mm (0.64 in) diagonal (16:10 aspect ratio)

Display system : Transparent LCD panel (x 3, R/G/B)

Drive method : Active matrix

Pixels : 2,304,000 (1920 x 1200) pixels

Light source : Laser diodes

Light output : 5,200 lm / 5,200 lm (ANSI) / 5,500 lm (Center)

Time until light output declines to 50 % : 20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)

Resolution : WUXGA (1920 x 1200 pixels)

Contrast ratio : 3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)

Screen size (diagonal) : 0.76–7.62 m (30–300 in), 16:10 aspect ratio

Center-to-corner zone ratio : 85 %

Lens : 1.6x manual zoom (throw ratio: 1.09–1.77:1), manual focus lens, F 1.60–2.12, f 15.30–24.64 mm

Digital Zoom Extender : Throw Ratio 1.09–2.21:1 (Corresponding value. When used together with optical zoom.)

Lens shift (from center of screen) : Vertical +44 %, Horizontal ±20 %

Keystone correction range : Vertical: ±25 °, Horizontal: ±35 °

Installation : Ceiling/floor, front/rear, free 360-degree installation

HDMI™ 1/2 IN : HDMI™ 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p signal input), CEC supported

COMPUTER 1/2 IN : D-sub 15-pin (female) x 2 (RGB/YPBPR/YCBCR)

AUDIO 1/2 IN : M3 stereo mini-jack x 2

VARIABLE AUDIO OUT : M3 stereo mini-jack x 1

SERIAL IN : D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)

LAN/DIGITAL LINK : RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], HDCP, Deep Color, 4K/30p signal input)

LAN : RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ [Class 2]

USB (VIEWER/WIRELESS/DC OUT) : USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A)

Protocol versions : IPv4, IPv6

Power supply : AC 100 V–240 V, 50/60 Hz

Maximum power consumption : 305 W (3.1–1.3 A) (310 VA) (Power consumption is 295 W at 200–240 V)

On-mode power consumption (Light Power) : [NORMAL]270 W (100–120 V), 255 W (200–240 V) [ECO]195 W (100–120 V), 185 W (200–240 V) [QUIET]190 W (100–120 V), 180 W (200–240 V)

Built-in speaker : 10 W monaural

Cabinet materials : Molded plastic

Filter : Included (Estimated maintenance time: approx. 20,000 hours)

Operation noise : 36 dB (NORMAL/ECO), 26 dB (QUIET)

Dimensions (W x H x D) : 399 mm x 115 mm x 348 mm (15 23/32˝ x 4 17/32˝ x 13 11/16˝ ) (not including protruding parts) 399 mm x 133 mm x 348 mm (15 23/32˝ x 5 1/4˝ x 13 11/16˝ ) (with feet at shortest position)

Weight with supplied lens : Approx. 6.5 kg (14.33 lbs)

Operating environment : Operating temperature: 0–45 °C (32–113 °F), Operating humidity: 20–80 % (no condensation)

Applicable software : Multi Monitoring & Control Software, Logo Transfer Software, Presenter Light Software for Windows, Wireless Projector App for iOS/Android™

Warranty : 3 Years
