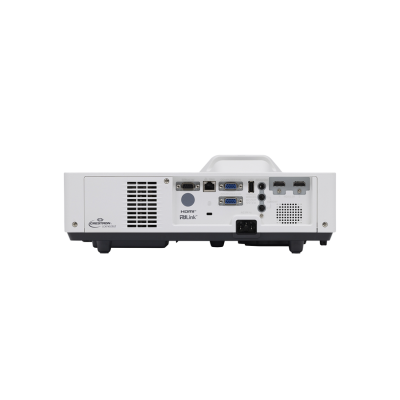

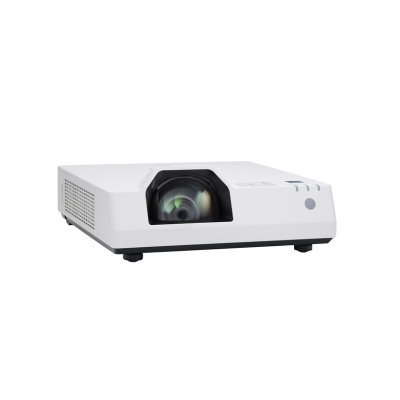

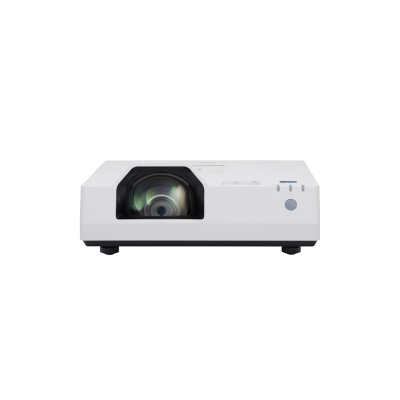

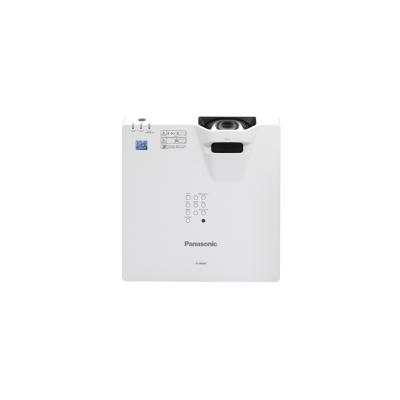

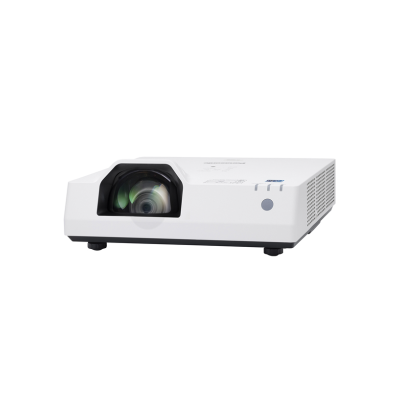

Projector Panasonic PT-TMX380 XGA LCD Laser 3,800lm (White)

Brand : Panasonic

Description : LCD Laser Projector 3,800lm, XGA

SKU : PT-TMX380

Projector Type : LCD projector

LCD Panel : 16.0 mm (0.63 in) diagonal (4:3 aspect ratio)

Pixels : 786,432 (1024 x 768) pixels

Light Source : Laser diodes

Light Output : 3,800 lm / 3,800 lm (ANSI) / 4,100 lm (Center)

Time Until Light Output Declines to 50% : 20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)

Resolution : XGA (1024 x 768 pixels)

Contrast Ratio : 3,000,000:1 (Full On/Full Off), (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)

Screen Size (diagonal) : 1.27–2.67 m (50–105 in), 4:3 aspect ratio

Lens : Fixed zoom, manual focus lens, F = 1.8, f = 6.08 mm,, throw ratio: 0.46:1 (Projection distance: 0.75 m [2.46 ft] for 80-inch image)

Digital Zoom Extender : Throw ratio: 0.46–0.58:1 (Corresponding value)

Keystone Correction Range : Vertical: ±15 ° (Auto, Manual),, Horizontal: ±15 ° (Manual)

Installation : Ceiling/floor, front/rear, free 360-degree installation

HDMI 1/2 IN : HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p signal input), CEC supported

COMPUTER 1 IN : D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)

COMPUTER 2 IN : D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)

AUDIO 1/2 IN : M3 stereo mini-jack x 2

AUDIO OUT : M3 stereo mini-jack x 1

SERIAL IN : D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)

LAN : RJ-45 x 1 for network control, 10Base-T, 100Base-TX

USB (VIEWER/WIRELESS/DC OUT) : USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module,, power supply (DC 5 V, maximum 2 A)

Power Supply : AC 100 V–240 V, 50/60 Hz

Maximum Power Consumption : 230 W

Built-in Speaker : 10 W monaural

Cabinet Materials : Molded plastic

Filter : Included (Estimated maintenance time: approx. 20,000 hours)

Operation Noise : 35 dB (NORMAL/ECO), 24 dB (QUIET)

Dimensions (W x H x D) : 349 mm x 138 mm x 370 mm (13 3/4˝ x 5 7/16˝ x 14 9/16˝ ) (with feet at shortest position)

Weight : 4.9 kg (10.8 lbs)

Operating Environment : Operating temperature: 0–45 °C (32–113 °F), Operating humidity: 20–80 % (no condensation)

Applicable Software : Multi Monitoring & Control Software, Logo Transfer Software, Presenter Light Software for Windows®,, Wireless Projector App for iOS/Android™

Control Function via LAN : PJLink™ [Class 2], Crestron Connected™, AMX Device Discovery

Warranty : 3 Years
