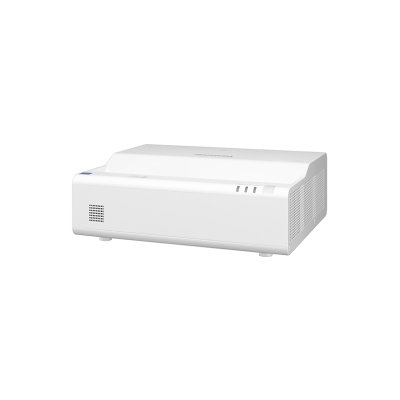

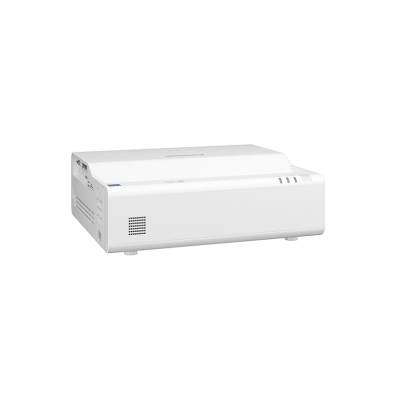

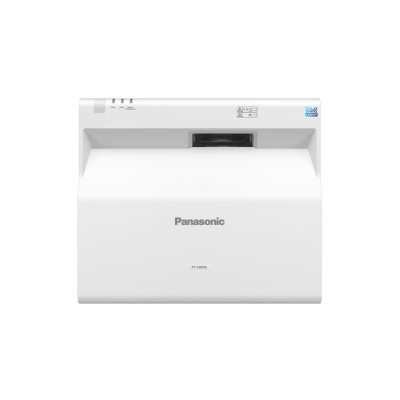

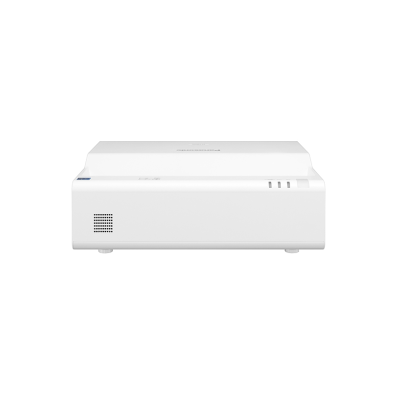

Projector Panasonic PT-CMZ50 WUXGA LCD Laser Ultra Short Throw 5,200lm (White)

Brand : Panasonic

Description : LCD Laser Projector UST, 5,200lm, WUXGA

SKU : PT-CMZ50

Projector Type : LCD projector

LCD Panel : 16.3 mm (0.64 in) diagonal (16:10 aspect ratio)

Pixels : 2,304,000 (1920 x 1200 pixels)

Light Source : Laser diodes

Light Output : 5,200 lm / 5,200 lm (ANSI) / 5,700 lm (Center)

Time Until Light Output Declines to 50% : 20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)

Resolution : WUXGA (1920 x 1200 pixels)

Contrast Ratio : 3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)

Screen Size (diagonal) : 2.03–3.05 m (80–120 in) (16:10 aspect ratio)

Lens : Fixed zoom, powered focus lens, F = 1.7, f = 2.81 mm, throw ratio: 0.235:1 (16:10 aspect ratio), (Projection distance: 1 cm [1/3 in] for 80-inch image)

Digital Zoom Extender : Throw ratio 0.235–0.288:1 (16:10 aspect ratio) (Corresponding value)

Keystone Correction Range : Vertical: ±3 °, Horizontal: ±3 °

Installation : Ceiling/floor, front/rear, free 360-degree installation

HDMI IN 1/IN 2 : HDMI™ 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p signal input), CEC supported

HDMI OUT : HDMI™ 19-pin x 1 (Compatible with HDCP 1.4, Deep Color, 4K/30p signal output)

COMPUTER IN : D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)

AUDIO IN : M3 stereo mini-jack x 1

VARIABLE AUDIO OUT : M3 stereo mini-jack x 1

SERIAL IN : D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)

LAN/DIGITAL LINK : RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], HDCP, Deep Color, 4K/30p signal input)

LAN : RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ [Class 2]

USB (VIEWER/WIRELESS/DC OUT) : USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module,, power supply (DC 5 V, maximum 2 A)

Power Supply : AC 100–240 V, 50/60 Hz

Maximum Power Consumption : 325 W (3.4–1.4 A) (330 VA) (Power consumption is 310 W at AC 200–240 V)

Built-in Speaker : 10 W monaural

Cabinet Materials : Molded plastic

Filter : Included (Estimated maintenance time: approx. 20,000 hours)

Operation Noise : 34 dB (NORMAL/ECO), 25 dB (QUIET)

Dimensions (W x H x D) : 495 mm x 160 mm x 421 mm (19 1/2˝ x 6 19/64˝ x 16 37/64˝) (excluding feet and protrusions),, 495 mm x 176 mm x 421 mm (19 1/2˝ x 6 15/16˝ x 16 37/64˝) (with feet at shortest position)

Weight : Approx. 9.5 kg (20.9 lbs)

Operating Environment : Operating temperature: 0–45 °C (32–113 °F), Operating humidity: 20–80 % (no condensation)

Applicable Software : Multi Monitoring & Control Software, Logo Transfer Software, Projector Network Setup Software,, Presenter Light Software for Windows®, Wireless Projector App for iOS/Android™

Control Function via LAN : PJLink™ [Class 2], Crestron Connected™, AMX Device Discovery

Warranty : 3 Years

*ผิด ตก ยกเว้น Errors and omissions excepted (E&OE)*

หมายเหตุ  จำนวนสินค้าในสต๊อกมีการเปลี่ยนแปลงทุกวัน กรุณาตรวจสอบจำนวนสินค้า และราคาก่อนการสั่งซื้อนะคะ

Datasheet
