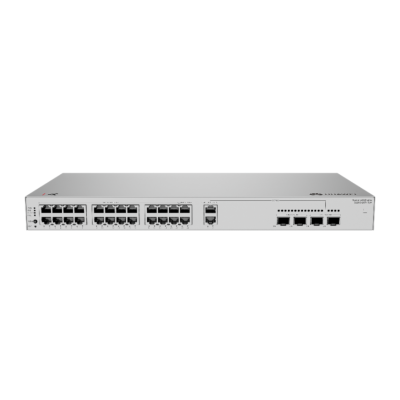

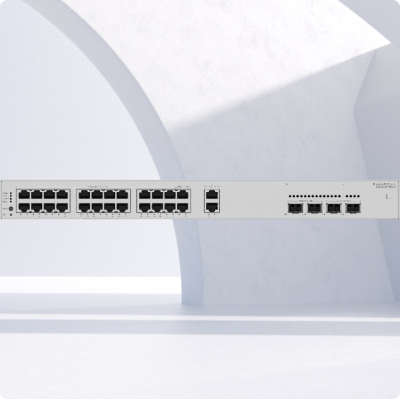

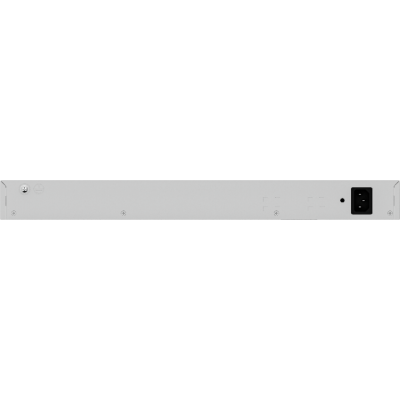

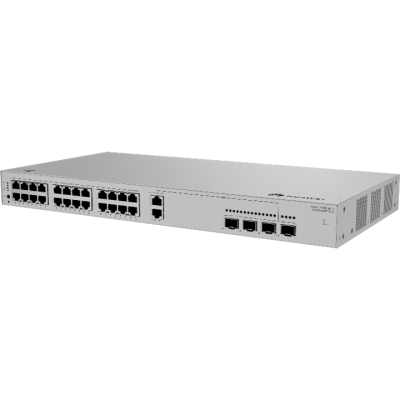

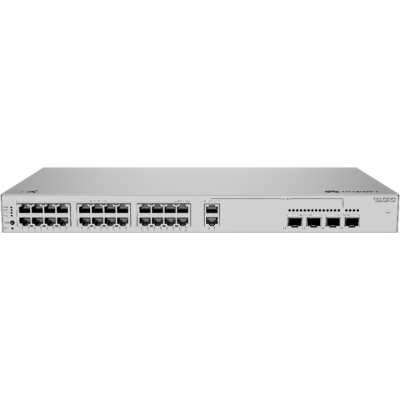

Huawei S220S-Series - S220S-26PN4JX Switch

Brand
 Huawei

Description
 Huawei S220S-Series : 22 x 10/100/1000BASE-T PoE+ Budget 400W ports, 2 x 10/100/1000BASE-T ports, 2 x 10/100/1000/2.5GBASE-T Combo(PoE+), 2 x 10GE SFP+ ports

SKU
 S220S-26PN4JX

Switching capacity
 98 Gbit/s

Packet forwarding rate
 73 Mpps

GE RJ45
 24 (22 PoE+) (1G/100M/10M)

2.5GE Combo (RJ45 + SFP)
 2 (RJ45: 2.5G/1G/100M/10M; PoE+) (SFP: 2.5G/1G/100M)

10G SFP+
 2 (10G/1G/100M)

PoE
 Supported

Maximum PoE power consumption [W]
 400

Certification
 EMC certification Safety certification Manufacturing certification

Chassis material
 Metal

Static power consumption [W]
 19.56

Typical power consumption [W]
 34.14

Installation type
 Rack mounting,Desk mounting,Wall mounting

Maximum power consumption [W]
 - Without PoE: 39.40 W - Full PoE load: 484.27 W (PoE: 400 W)

Number of fans modules
 2

Power supply mode
 AC built-in

Input voltage range [V]
 - AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz - High-voltage DC input: 190 V DC to 290 V DC

Power supply surge protection [kV]
 Differential mode: ±6 kV; common mode: ±6 kV

Heat dissipation mode
 Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction
 Air intake from left and front, air exhaustion from right

Dimensions
 without packaging (H x W x D) [mm(in.)]
 Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442 mm x 220 mm (1.72 in. x 17.40 in. x 8.66 in.)
 Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 227 mm
 (1.72 in. x 17.40 in. x 8.94 in.)

 Dimensions with packaging (H x W x D) [mm(in.)]
 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)

Weight
 without packaging [kg(lb)]
 2.81 kg (6.2 lb)

 with packaging [kg(lb)]
 3.72 kg (8.2 lb)

Warranty
 3 Years
