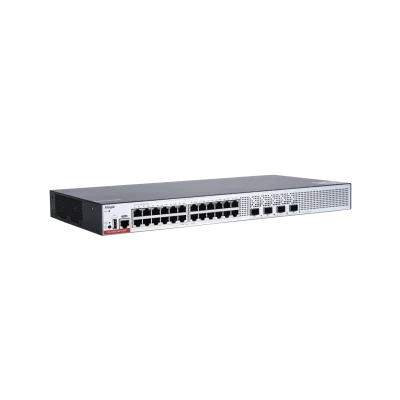

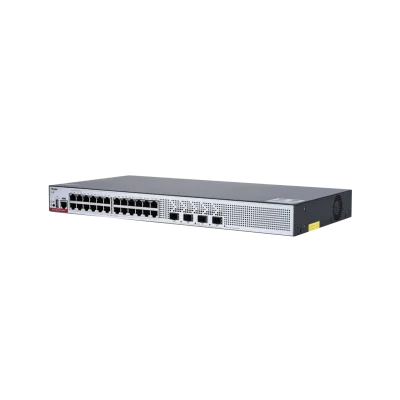

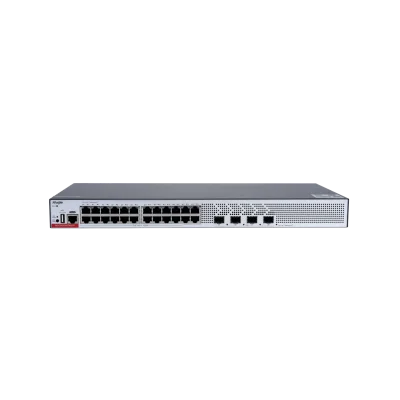

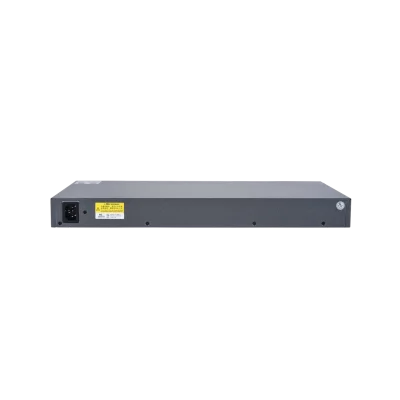

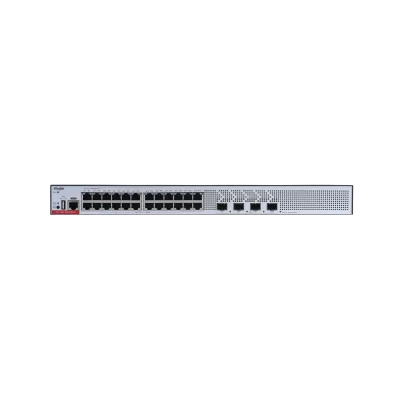

Reyee RG-CS83-24GT4XS-P, 24-Port 1GE RJ45 Layer 3 Managed Access Switch with PoE+, 4-Port 10GE Uplink

Brand
 Ruijie

Description
 Reyee RG-CS83-24GT4XS-P, 24-Port 1GE RJ45 Layer 3 Managed Access Switch with PoE+, 4-Port 10GE Uplink

SKU
 RG-CS83-24GT4XS-P

Port Specifications
 Fixed service ports
 24 x 10/100/1000BASE-T ports, supporting PoE/PoE+
 4 x 1GE/10GE SFP+ ports

 Fixed management port
 1 x RJ45 console port

 USB
 1 x USB 2.0 port (No capacity limit, 2G/4G/8G capacity tested)

System Specifications
 Packet forwarding rate : 96 Mpps
 Switching capacity : 128 Gbps
 CPU : Dual-core CPU, each core with the clock speed of 1.0 GHz
 Flash memory : 512 MB (storing boot software for 1+1 boot redundancy)
 Memory : 1 GB
 Switch buffer : 1.5 MB
 MAC address table size : 16,000

Power supply and Consumption
 Power supply : 1 x fixed power supply
 Power input
 AC input
 - Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz
 - Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz
 - Maximum input current: 6 A

 PoE port : All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply
 PoE power cable pairs : Mode A (1-2, 3-6 pairs)
 PoE output power : Each PoE port provides up to 30 W of power The maximum power is 370 W

Power supply and Consumption
 Maximum power consumption : Built-in power supply: 409 W
 Energy saving : Supported

Fan
 1 x fixed fan module

Dimensions
 Unit dimensions (W x D x H) : 442 mm x 220 mm x 43.6mm (17.40 in. x 8.66 in. x 1.72 in.)
 Shipping dimensions (W x D x H) : 540 mm x 338 mm x 154 mm (21.26 in. x 13.31 in. x 6.06 in.)

Weight
 Unit weight : 3.4 kg (7.50 lbs)
 Shipping weight : 4.25 kg (9.37 lbs)

Warranty
 3 Years
