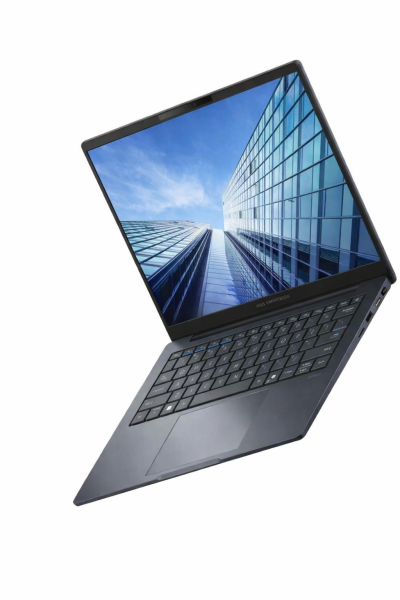

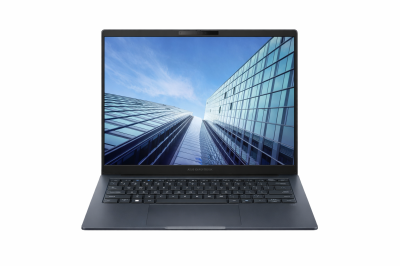

ASUS ExpertBook B3405CCA-LY1875X Ultra 7 255H/16GB/512GB SSD/14.0″/Win11Pro

Brand
ASUS

Description
Asus Com NB Model : B5605CCA-MB0437X (90NX08F1-M00FR0) Intel Core Ultra 5 Processor 225H 1.7 GHz/16GB DDR5 SO-DIMM/512GB M.2 2280 SSD/16.0-inch/Win11Pro/Backpack+Wireless optical mouse(Included in the Box)/3YOSS

Part No

90NX08F1-M00FR0

Sales Model Name
B5605CCA-MB0437X

Office
1-month trial for new Microsoft 365 customers. Credit card required.

Panel Size
16.0-inch

Backlit
LED Backlit

Brightness
300nits

Resolution
WUXGA (1920 x 1200) 16:10

Glare
Anti-glare display

Color gamut
NTSC: 45%

View angle(H/V)
178/178

Response time(Typ/Max) (ms)
25/30

Refresh rate
60Hz

Contrast  (Typ)
1000:1

Touch Panel
Non-touch screen

Screen-to-body ratio
85 %

IPS-level
Wide view

Processor
Intel® Core™ Ultra 5 Processor 225H 1.7 GHz (18MB Cache, up to 4.9 GHz, 14 cores, 14 Threads); Intel® AI Boost NPU up to 13 TOPS

Neural processor
Intel® AI Boost NPU

Chipset
N/A

Discrete/Share
Share

Integrated GPU
Intel® Arc™ Graphics(available for Intel® Core™ Ultra H 5/7/9 with dual channel memory)

VRAM
N/A

Expansion Slot(includes used)
2x DDR5 SO-DIMM slots

DIMM Memory
16GB DDR5 SO-DIMM

Total System Memory
DDR5 16GB

Storage
512GB M.2 2280 NVMe™ PCIe® 4.0 SSD, TCG Opal 2.0 self-encrypting drive (SED)
SSD Housing for storage expansion

Front-facing camera
1080p FHD camera with IR function to support Windows Hello
With privacy shutter

Wireless
Wi-Fi 7(802.11be) (Triple band) 2*2 + Bluetooth® 5.4 Wireless Card

NumberPad
N/A

FingerPrint
FingerPrint

Keyboard type
Backlit Chiclet Keyboard

I/O ports
2x USB 3.2 Gen 1 Type-A
2x Thunderbolt™ 4, compliant with USB4, supports display / power delivery
1x HDMI 2.1 TMDS
1x 3.5mm Combo Audio Jack
1x RJ45 Gigabit Ethernet
Micro SD card reader

Audio
Audio by Dirac

Battery
63WHrs, 3S1P, 3-cell Li-ion

AC Adapter
TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100~240V AC 50/60Hz universal

Required charging power
Min: 55W
Max: 65W
*The indicated wattage is for demonstrating the system’s support capability as required by EU regulations. For optimal system performance, please use the standard-wattage adapter or higher.

Dimension (WxHxD)
35.84 x 25.39 x 1.75 ~ 1.79 cm (14.11" x 10.00" x 0.69" ~ 0.70")

Weight (with Battery)
1.77 kg (3.90 lbs)

Weight (w/o Battery)
1.55 kg (3.42 lbs)

Security
Fingerprint sensor integrated with Power Key
Kensington Nano Security Slot™(6x 2.5mm)
BIOS Booting User Password Protection
BIOS Integrity Measurement Support
BIOS Self Recovery
BIOS setup user password
CSME BIOS Redundancy Assistance
Enhanced Password Strength
HDD User Password Protection and Security
Intel CSME Firmware Resilience
Intel® BIOS Guard
Intel® Boot Guard
Microsoft Security Level 2
Support Absolute Persistence 2.0 (Computrace)
Trusted Platform Module (TPM) 2.0
N/A

Antivirus
McAfee® 1 year

MyASUS feature
System diagnosis
Battery health charging
Fan Profile
Splendid
Tru2Life
Function key lock
WiFi SmartConnect
AppDeals
Link to MyASUS

Built-in Apps

MyASUS
AI ExpertMeet (AI features need devices with 12GB RAM or more)

Included in the Box
Backpack
Wireless optical mouse

Operating System
Windows 11 Pro

Base Warranty
1Y OnSite Service; Accidental Damage Protection + 2Y OnSite Service

*ผิด ตก ยกเว้น Errors and omissions excepted (E&OE)*

หมายเหตุ  จำนวนสินค้าในสต๊อกมีการเปลี่ยนแปลงทุกวัน กรุณาตรวจสอบจำนวนสินค้า และราคาก่อนการสั่งซื้อนะคะ

Datasheet
