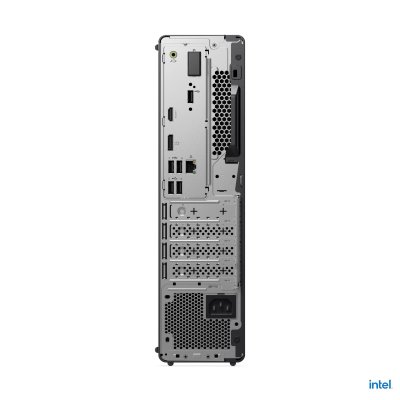

Lenovo ThinkCentre Neo 50s G6 SFF Ultra 5 235/16GB/512GB SSD/Win11Pro

Brand
Lenovo

Description
Neo50s G6 U5-235 16G SSD512G W11P - Intel

SKU
13DM0052TB

Processor
Intel Core™ Ultra 5 235, 14C (6P + 8E) / 14T, Max Turbo up to 5.0GHz, 24MB Intel® Smart Cache

AI PC Category
AI PC

Graphics
Integrated Intel® Graphics

Chipset
Intel® B860 Chipset

Memory
1x 16GB UDIMM DDR5-5600

Memory Slots
Two DDR5 UDIMM slots, dual-channel capable

Max Memory
Up to 64GB DDR5-5600

Storage
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe®

Max Storage Support
Up to three drives, 1x 3.5" HDD + 2x M.2 SSD
• 3.5" HDD up to 2TB
• M.2 SSD up to 1TB each, To install a HDD storage, 3.5'' HDD screw and grommet kit is needed.

Card Reader
3-in-1 Card Reader

Optical
None

Audio Chip
High Definition (HD) Audio, Realtek® ALC623-CG codec, 24-bit DAC supports 44.1K/48K/96K sample rate, 2 channel DAC supports 16/20/24-bit PCM format for independent two stereo channel or 2.1 audio playback, 24-bit ADC supports 44.1K/48K/96K sample rate, 2 channel ADC supports 16/20/24-bit PCM format for independent two stereo channel audio inputs

Speakers
1Wx1

Power Supply
200W 90%

Keyboard
USB, Calliope, Black, Thai

Mouse
USB Calliope Mouse, Black

Expansion Slots
One PCIe® 4.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm, One PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm, Three M.2 slots (one for WLAN, two for SSD)

Case Color
Raven Black

Stand
None

Pen
Pen Not Supported

Form Factor
SFF (8.2L)

Dimensions (WxDxH)
92.5 x 291.7 x 339.5 mm (3.6 x 11.5 x 13.4 inches)

Weight
Around 4.62 kg (10.19 lbs)

WLAN + Bluetooth
Intel® Wi-Fi® 6 AX203, 802.11ax 2x2 + BT5.2

WWAN
WWAN Not Supported

Ethernet
Integrated 100/1000M

Front Ports
1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging, 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), 1x headphone / microphone combo jack (3.5mm), 1x microphone (3.5mm)

Rear Ports
2x USB-A (Hi-Speed USB / USB 2.0), 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On, 1x HDMI® 2.1 TMDS, 1x DisplayPort™ 1.4, 1x Ethernet (RJ-45), 1x line-out (3.5mm)

Optional Rear Ports (configured)
1x Parallel, 1x Serial

Monitor Cable
None

Security Chip
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified

Physical Locks
Kensington Security Slot™, 3 x 7 mm, Padlock Loop

Smart Cable Clip
None

Chassis Intrusion Switch
Chassis Intrusion Switch

Additional Security
None

System Management
Non-vPro®

Operating System
Windows® 11 Pro, English

Warranty
 3 Years

*ผิด ตก ยกเว้น Errors and omissions excepted (E&OE)*

หมายเหตุ  จำนวนสินค้าในสต๊อกมีการเปลี่ยนแปลงทุกวัน กรุณาตรวจสอบจำนวนสินค้า และราคาก่อนการสั่งซื้อนะคะ

Datasheet
