Lenovo ThinkCentre Neo 50t G5 Tower i5-14500/16GB/512GB SSD/Win11Home

Brand
Lenovo

Description
Neo50t G6 i5-14500 16G SSD512G W11H - Intel

SKU
12UB0064TH

Processor
Intel Core™ i5-14500, 14C (6P + 8E) / 20T, P-core 2.6 / 5.0GHz, E-core 1.9 / 3.7GHz, 24MB Intel® Smart Cache

Graphics
Integrated Intel® UHD Graphics 770

Chipset
Intel® B760 Chipset

Memory
1x 16GB UDIMM DDR5-4800

Memory Slots
Two DDR5 UDIMM slots, dual-channel capable

Max Memory
Up to 64GB DDR5-5600

Storage
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe®

Max Storage Support
Up to three drives, 1x 3.5"HDD + 1x 2.5"HDD + 1x M.2 SSD
• 3.5" HDD up to 2TB
• M.2 SSD up to 1TB
• 2.5" HDD bay is only for customer self upgrade

Card Reader
3-in-1 Card Reader

Optical
None

Audio Chip
High Definition (HD) Audio, Realtek® ALC623-CG codec

Speakers
2Wx1

Power Supply
260W 90%

Keyboard
USB Calliope Keyboard, Black, Thai

Mouse
USB Calliope Mouse, Black

Optional Bay
None

Expansion Slots
One PCIe® 3.0 x16, full-height, length ≤ 233.6mm, height ≤ 117.5mm, One PCIe® 3.0 x1, full-height, (length ≤ 185mm, height ≤ 100mm) or (length ≤ 118mm, height ≤ 110mm), Two M.2 slots (one for WLAN, one for SSD)

Case Color
Black

System Fan
None

Toolless Chassis Screw
Toolless Chassis Screw

Pen
Pen Not Supported

Form Factor
Tower (13.6L)

Dimensions (WxDxH)
145 x 294 x 340 mm (5.71 x 11.57 x 13.39 inches)

Weight
Around 5.6 kg (12.35 lbs)

WLAN + Bluetooth
Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 + BT5.2

WWAN
WWAN Not Supported

Ethernet
RTL8111K, 1x RJ-45

Front Ports
1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with data transfer and 15W charging, 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), 1x headphone / microphone combo jack (3.5mm), 1x microphone (3.5mm)

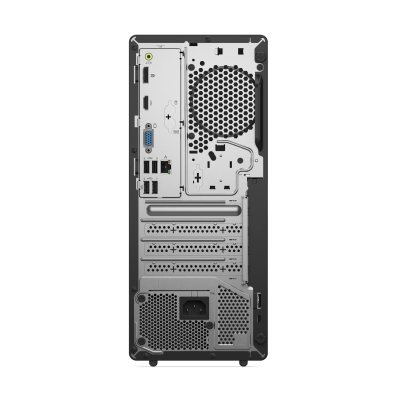

Rear Ports
4x USB-A (Hi-Speed USB / USB 2.0), one supports Smart Power On, 1x HDMI® 2.1 TMDS, 1x DisplayPort™ 1.4a (HBR2), 1x VGA, 1x Ethernet (RJ-45), 1x line-out (3.5mm)

Optional Rear Ports (configured)
Parallel, Serial

Security Chip
Discrete TPM 2.0, TCG certified

Physical Locks
Smart Cable Clip, Kensington Security Slot™, Padlock Loop

Smart Cable Clip
Smart Cable Clip

Chassis Intrusion Switch
None

Warranty
 3 Years

*ผิด ตก ยกเว้น Errors and omissions excepted (E&OE)*

หมายเหตุ  จำนวนสินค้าในสต๊อกมีการเปลี่ยนแปลงทุกวัน กรุณาตรวจสอบจำนวนสินค้า และราคาก่อนการสั่งซื้อนะคะ


Datasheet
