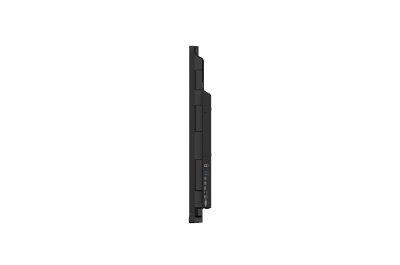

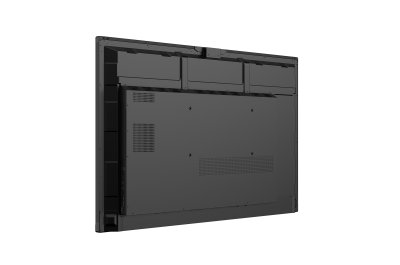

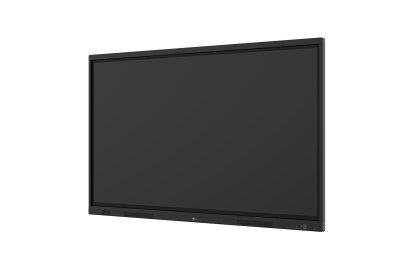

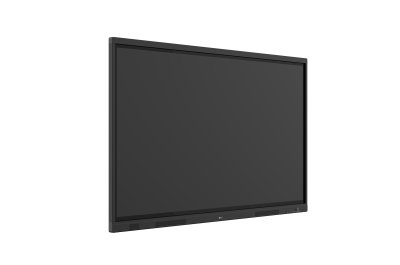

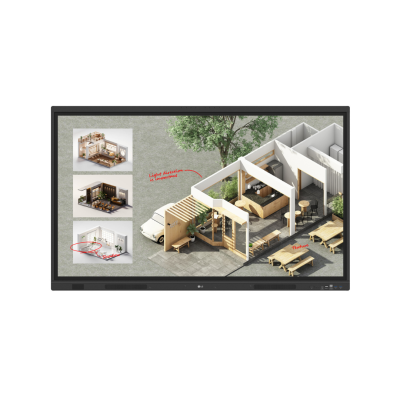

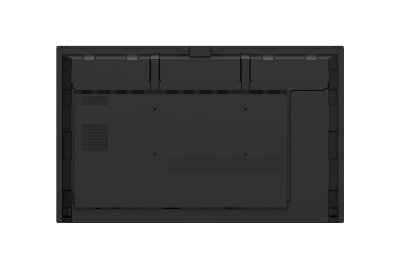

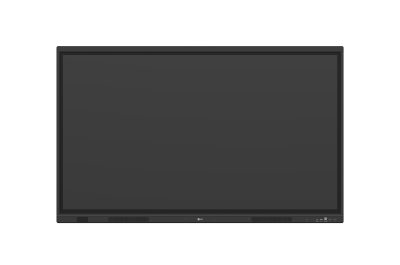

LG TV CreateBoard Standard (86 Inch) (86TR3DQ)

Brand
 LG

Description
 LG TV Interactive Board LG 86 inch with Smart Feature (86TR3DQ)

SKU
 86TR3DQ

Panel
 Screen size (inches)                           86"
 Panel technology                              VA
 Backlight Type                                 Direct
 Aspect Ratio                                    16:9
 Resolution                                       3840 x 2160 (UHD)
 Refresh Rate                                    60 Hz
 brightness                                       400nit (typ.)
 Contrast ratio                                   1200:1
 Dynamic CR                                     5000:1
 Color range                                     NTSC 72%
 Angle of view (H x V)                        178 x 178
 Color depth (number of colors)           8bit+FRC, 1.07G

Connection
 HDMI In                                           O(3, Front1/Back2)
 DP In                                              O(1)
 RGB In                                            O(1, VGA)
 Audio In                                          O(1)
 RS232C In                                        O(1)
 RJ45(LAN) In                                     O(1)
 USB In                                             USB3.0 Type A(5) - Front2/Back2/Top1 USB2.0 Type A(1), USB Type-C(2, For the front 1, PD 65W without OPS/ DP-Alt ) - Front1/Back1
 HDMI Out                                        O(1)
 Audio Out                                       O(1), Optical O(1, SPDIF)
 Touch USB                                       O(3, Front1/Back2)
 RJ45(LAN) Out                                  O(1)

Mechanical specifications
 Dimensions (W × H × D)                        1957 x 1170.8 x 99.7mm
 Packaging Dimensions                         2110 x 1291 x 225mm
 Weight                                             54.1Kg
 Packaging Weight                               70.7Kg
 VESA Mount                                      800x600mm
 Screen bezel width                             T/R/L/B：25.6/15/15/43.5mm

Features – Hardware
 Internal memory (eMMC)                      64GB

Features - Software
 OS version (webOS)                            Android14(EDLA)

Power
 power supply                                     AC 100-240V~, 50/60Hz
 Types of energy                                 Built-In Power

Power consumption
 Typ.                                                 235W(measured:215W)
 maximum                                          400W(measured:370W)
 BTU (British Thermal Unit)                     TBD
 Power off                                          0.5W

Sound
 Speaker (Built-in)                                speaker：O (20Wx2 + 20W) output：O (18Wx2 + 18W)"

Warranty
 3 Years onsite
