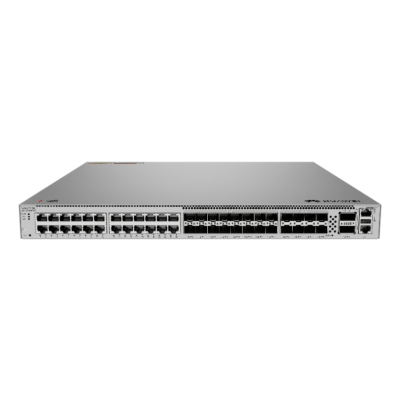

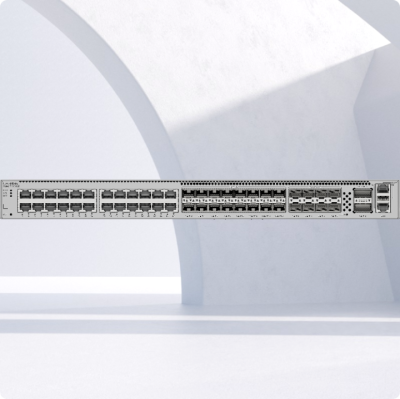

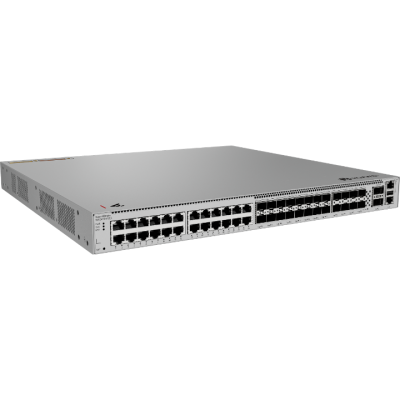

Huawei S600-Series - S620-24T16X8Y2CZ Switch

Brand
 Huawei

Description
 Huawei S600-Series : 24 x 10/100/1000M BASE-T ports, 16 x 10GE SFP+ ports, 8 x 25GE SFP28 ports, 2 x 40GE/100GE QSFP28

SKU
 S620-24T16X8Y2CZ

Switching capacity
 1568 Gbit/s

Packet forwarding rate
 1167 Mpps

GE RJ45
 24 (1G/100M/10M)

10G SFP+
 16 (10G/2.5G/1G/100M)

25G SFP28
 8 (25G/10G/2.5G/1G)

100G QSFP28
 2 (100G/40G)

iStack
 Up to 9 switches of the same series in a stack

Certification
 EMC certification Safety certification Manufacturing certification

Static power consumption [W]
 77

Typical power consumption [W]
 30% traffic under the ATIS standard and dual power modules: - 122 W (with two 180 W AC power modules) - 118 W (with two 240 W DC power modules)

Installation type
 Rack mounting,Desk mounting

Maximum power consumption [W]
 100% traffic under the ATIS standard and dual power modules: - 127 W (with two 180 W AC power modules) - 123 W (with two 240 W DC power modules)

Number of fans modules
 2

Power supply mode
 Pluggable power supply

Input voltage range [V]
 - AC input: 90 V AC to 290 V AC; 45 Hz to 66 Hz - High-voltage DC input: 190 V DC to 290 V DC - DC input: -38.4 V DC to -72 V DC

Power supply surge protection [kV]
 - Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode - Configured with DC power modules: ±2 kV in differential mode
 and ±4 kV in common mode

Types of fans
 Pluggable

Heat dissipation mode
 Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction
 Air intake from front and right and air exhaust from rear

Dimensions
 Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)

 Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 454.0 mm
 (1.72 in. x 17.4 in. x 17.87 in.)

 Dimensions with packaging (H x W x D) [mm(in.)]
 145.0 mm x 650.0 mm x 550.0 mm (5.71 in. x 25.59 in. x 21.65 in.)

Weight
 Weight without packaging [kg(lb)]
 6.31 kg (13.91 lb)

 Weight with packaging [kg(lb)]
 8.76 kg (19.31 lb)

Warranty
 3 Years
