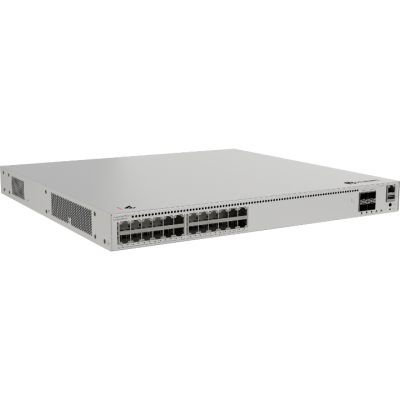

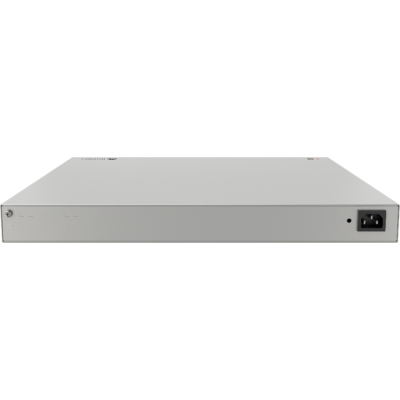

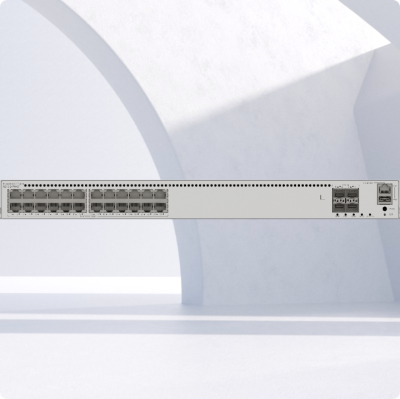

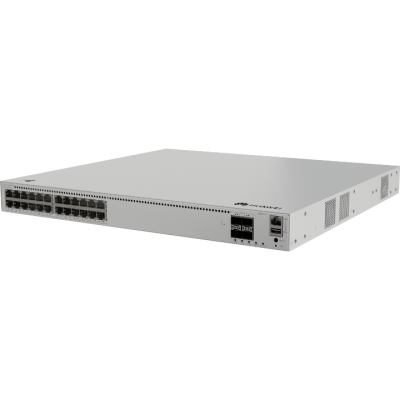

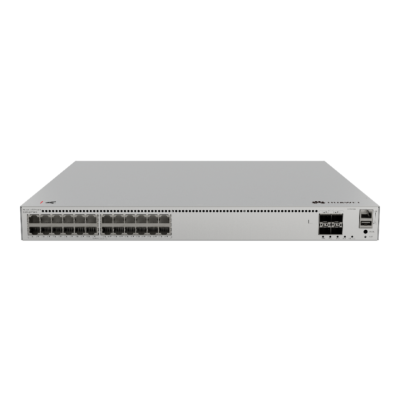

Huawei S310-Series - S310-24PN4X Switch

Brand
 Huawei

Description
 Huawei S310-Series : 24 x 10/100/1000/2.5GBASE-T ports PoE+ Budget 400W, 4*10GE SFP+ ports | Built-in AC power

SKU
 S310-24PN4X

Switching capacity
 200 Gbit/s

Packet forwarding rate
 144 Mpps

2.5GE RJ45
 24 (PoE+) (2.5G/1G/100M/10M)

10G SFP+
 4 (10G/1G)

PoE
 Supported

Maximum PoE power consumption [W]
 400

iStack
 Up to 4 switches of the same series in a stack

Certification
 EMC certification Safety certification Manufacturing certification

Static power consumption [W]
 37.1

Typical power consumption [W]
 54.8

Installation type
 Rack mounting,Desk mounting

Maximum power consumption [W]
- Without PoE: 77.70 W - Full PoE load: 517.30 W (PoE: 400 W)

Number of fans modules
 2

Power supply mode
 AC built-in

Input voltage range [V]
 - AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz - High-voltage DC input: 190 V DC to 290 V DC

Power supply surge protection [kV]
 Differential mode: ±6 kV; common mode: ±6 kV

Types of fans
 Built-in

Heat dissipation mode
 Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction
 Air intake from left and front, air exhaustion from right

Dimensions
 without packaging (H x W x D) [mm(in.)]
 Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.54 in.)

 Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.56 in.)

 Dimensions with packaging (H x W x D) [mm(in.)]
 185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.)

Weight
 without packaging [kg(lb)]
 4.71 kg (10.38 lb)

 with packaging [kg(lb)]
 6.89 kg (15.19 lb)

Warranty
 3 Years
