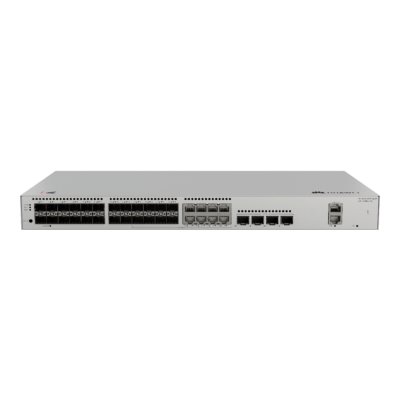

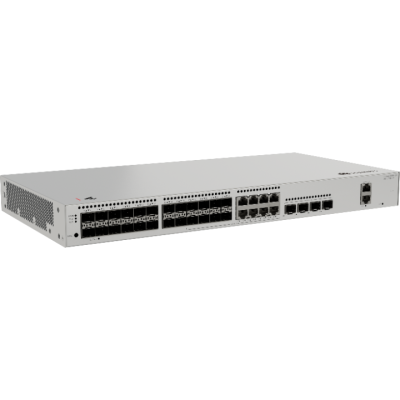

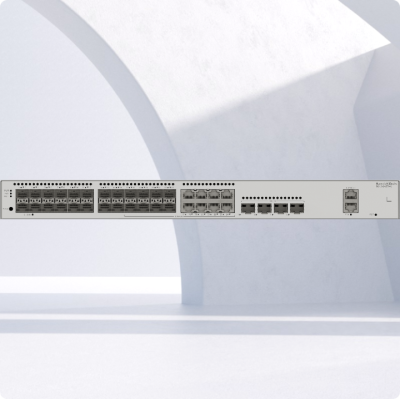

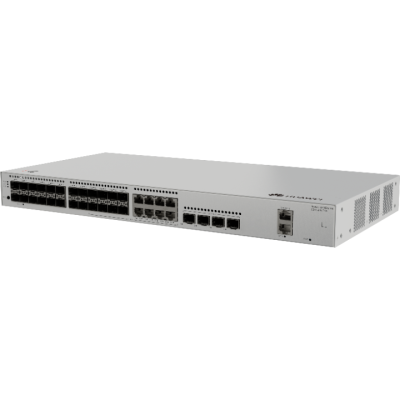

Huawei S310-Series - S310-24ST4X Switch

Brand
 Huawei

Description
 Huawei S310-Series : 24 x GE SFP ports, 8 of which are dual-purpose 10/100/1000 or SFP, 4*10GE SFP+ ports | built-in AC power

SKU
 S310-24ST4X

Switching capacity
 128 Gbit/s

Packet forwarding rate
 96 Mpps

GE Combo (RJ45 + SFP)
 8 (RJ45: 1G/100M/10M) (SFP: 1G/100M)

GE SFP
 16 (1G/100M)

iStack
 Up to 4 switches of the same series in a stack

Certification
 EMC certification Safety certification Manufacturing certification

Static power consumption [W]
 17.57

Typical power consumption [W]
 32.6

Installation type
 Rack mounting,Desk mounting,Wall mounting

Maximum power consumption [W]
41.7

Number of fans modules
 2

Power supply mode
 AC built-in

Input voltage range [V]
 - AC input: 90 V AC to 264 V AC; 47 Hz to 63 Hz - High-voltage DC input: 88 V DC to 300 V DC

Power supply surge protection [kV]
 Differential mode: ±6 kV; common mode: ±6 kV

Types of fans
 Built-in

Heat dissipation mode
 Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction
 Air intake from left and air exhaust from right

Dimensions
 without packaging (H x W x D) [mm(in.)]
 Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
 Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)

 Dimensions with packaging (H x W x D) [mm(in.)]
 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)

Weight
 without packaging [kg(lb)]
 2.9 kg (6.39 lb)

 with packaging [kg(lb)]
 3.55 kg (7.83 lb)

Warranty
 3 Years

*ผิด ตก ยกเว้น Errors and omissions excepted (E&OE)*
