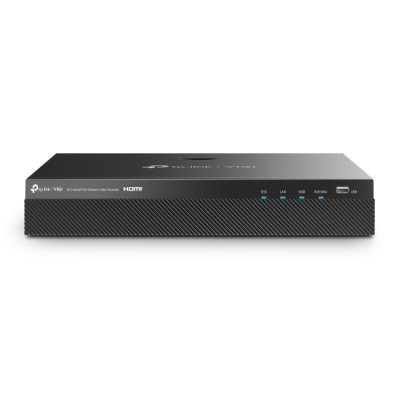

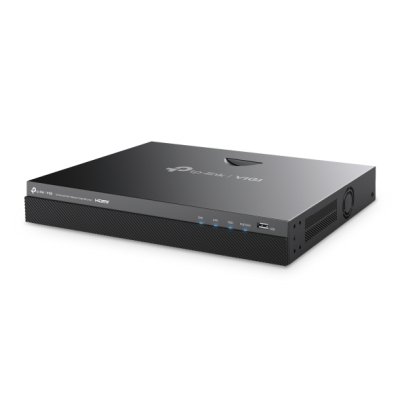

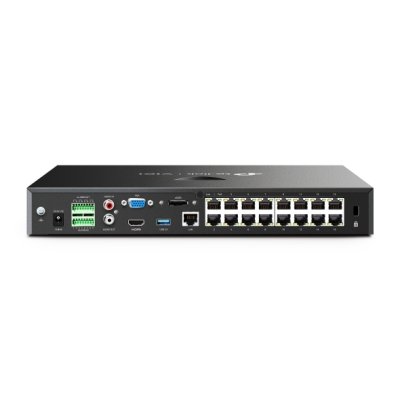

TP-Link (NVR2016H-16P) 16CH POE+ NETWORK VIDEO RECORDER 90W

Brand
 TP-Link

Description
 TP-Link (NVR2016H-16P) 16CH POE+ NETWORK VIDEO RECORDER 90W

SKU
 NVR2016H-16P

video and audio
 IP Video Input : 16-Channel
 Incoming Bandwidth : 160 Mbps
 Outgoing Bandwidth : 160 Mbps
 HDMI Output Resolution : 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
 VGA Output Resolution : 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
 Video Output Mode : HDMI/VGA Simultaneous Output
 Multi-View Display : 1/4/6/8/9/16

Decoding
 Audio Compression : G.711A/G.711U/G.726
 Video Compression : H.265+/H.265/ H.264+/H.264
 Record Resolution : 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/

2CIF/CIF/QCIF
 Synchronous Playback : 16-Channel†
 Capability : 25fps:
                 10-ch @ 1080P
                 30fps:
                 2-ch@8MP, 4-ch@5MP, 5-ch@4MP, 6-ch@3MP

Record management
 Record Mode : Manual Recording, Scheduling Recording, Motion Detection Recording
 Playback Mode : Instant Playback, Regular Playback, Tag Playback, Event Playback
 Backup Mode : Regular Backup, Video Clip Backup
 Playback Function : Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

 Network
 Protocol : UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
 Mobile Phone Access : Android, iOS
 Web Browser : Chrome (57+), Firefox (52+), Edge (91+)
 Interoperability : ONVIF Profile S, CGI

Hard Disk
 SATA 2 SATA : Interfaces
 Capacity : Up to 16 TB Capacity for Each HDD*

Power
 Power Supply
 53.5V DC/2.43A

 Max. Power Consumption
 6.2 W (Without Disk)
 40 W (With Disk)

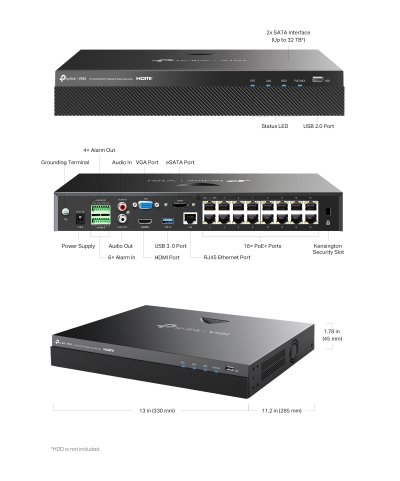

Dimensions (W x D x H)
 13.0 × 11.2 × 1.8 in (330 × 285 × 45 mm)

Warranty
 limited lifetime

Datasheet : 16 Channel PoE+ Network Video Recorder
