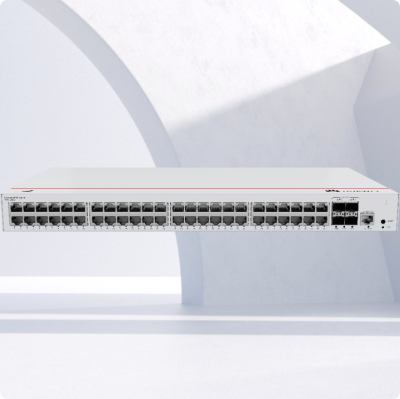

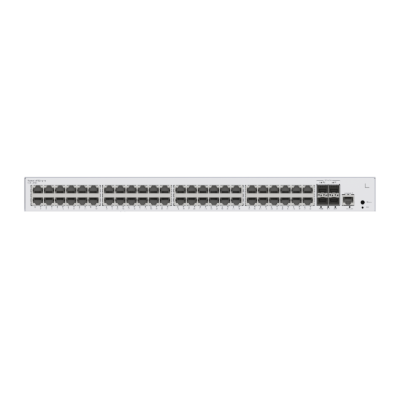

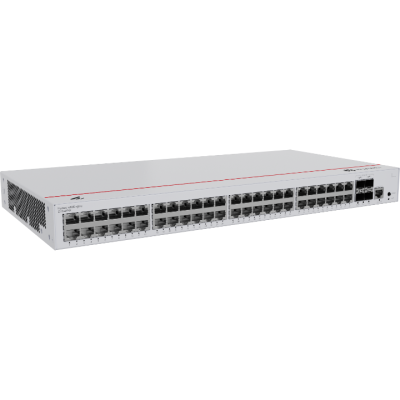

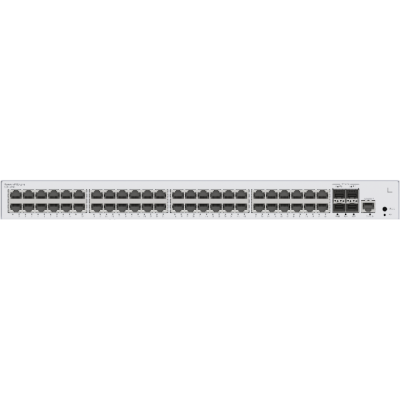

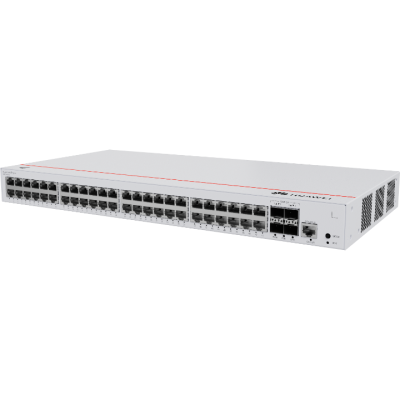

Huawei S220-Series - S220-48P4X Switch

Brand
 Huawei

Description
 Huawei S220-Series : 48 x 10/100/1000BASE-T ports PoE+ Budget 380W, 4 x 10GE SFP+ ports | built-in AC power

SKU
 S220-48P4X

Switching capacity
 176 Gbit/s

Packet forwarding rate
 131 Mpps

GE RJ45
 48 (PoE+) (1G/100M/10M)

PoE
 Supported

Maximum PoE power consumption [W]
 380

Certification
 EMC certification Safety certification Manufacturing certification

Chassis material
 Metal

Static power consumption [W]
 34.04

Typical power consumption [W]
 49.44

Installation type
 Rack mounting,Desk mounting,Wall mounting

Maximum power consumption [W]
 - Without PoE: 64.7 W - Full PoE load: 462.80 W (PoE: 380 W)

Number of fans modules
 2

Power supply mode
 AC built-in

Types of fans
 Built-in

Input voltage range [V]
 - AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz - High-voltage DC input: 190 V DC to 290 V DC

Power supply surge protection [kV]
 Differential mode: ±6 kV; common mode: ±6 kV

Heat dissipation mode
 Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction
 Air intake from left and air exhaust from right

Dimensions
 without packaging (H x W x D) [mm(in.)]
 Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
 Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm
 (1.72 in. x 17.4 in. x 8.94 in.)

 Dimensions with packaging (H x W x D) [mm(in.)]
 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)

Weight
 without packaging [kg(lb)]
 3.24 (7.14)

 with packaging [kg(lb)]
 4.29 kg (9.46 lb)

Warranty
 3 Years
