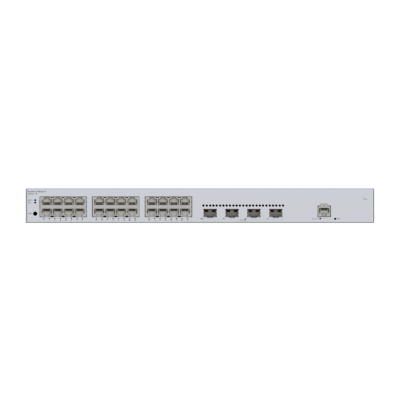

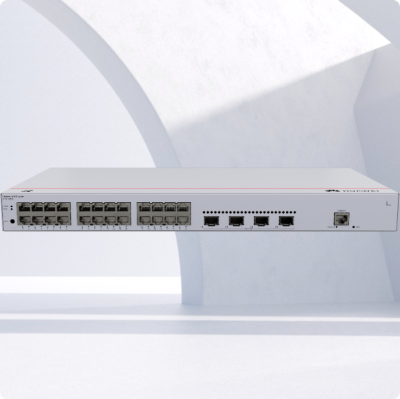

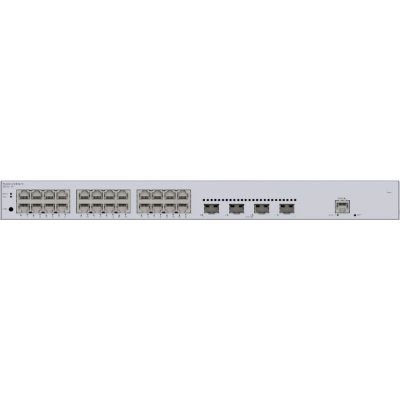

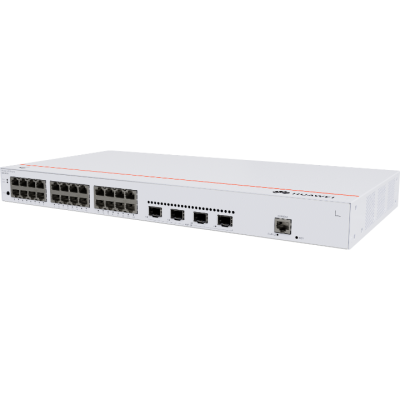

Huawei S220-Series - S220-24T4X Switch

Brand
 Huawei

Description
 Huawei S220-Series : 24 x 10/100/1000BASE-T ports, 4 x 10GE SFP+ ports | built-in AC power

SKU
 S220-24T4X

Switching capacity
 128 Gbit/s

Packet forwarding rate
 95 Mpps

GE RJ45
 24 (1G/100M/10M)

GE SFP
 4 (10G/1G)

Certification
 EMC certification Safety certification Manufacturing certification

Chassis material
 Metal

Static power consumption [W]
 19.00

Typical power consumption [W]
 27.27

Installation type
 Rack mounting,Desk mounting,Wall mounting

Maximum power consumption [W]
 35.04

Number of fans modules
 1

Power supply mode
 AC built-in

Types of fans
 Built-in

Input voltage range [V]
 AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz

Power supply surge protection [kV]
 Differential mode: ±6 kV; common mode: ±6 kV

Heat dissipation mode
 Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction
 Air cooling for heat dissipation, intelligent fan speed adjustment

Dimensions
 without packaging (H x W x D) [mm(in.)]
 Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
 Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm
 (1.72 in. x 17.4 in. x 8.94 in.)

 Dimensions with packaging (H x W x D) [mm(in.)]
 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)

Weight
 without packaging [kg(lb)]
 2.32 kg (5.11 lb)

 with packaging [kg(lb)]
 3.44 kg (7.58 lb)

Warranty
 3 Years
