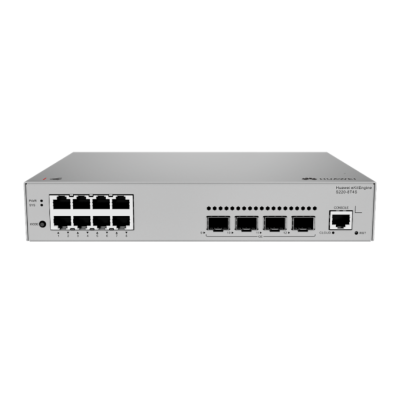

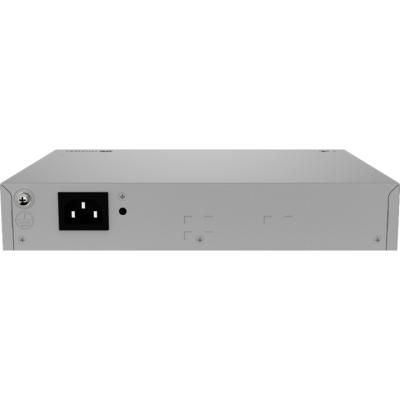

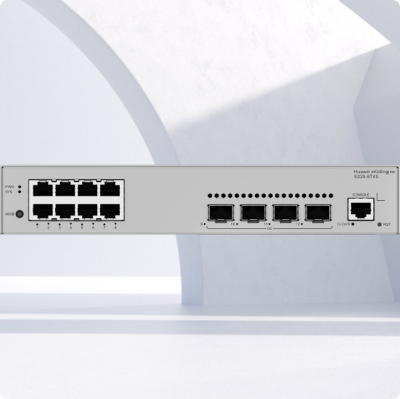

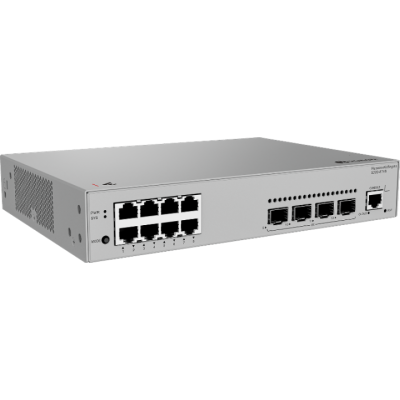

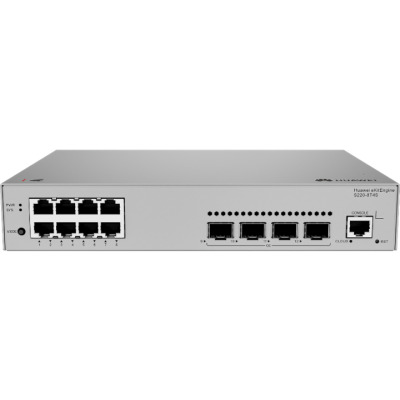

Huawei S220-Series - S220-8T4S Switch

Brand
 Huawei

Description
 Huawei S220-Series : 8 x 10/100/1000BASE-T，4 x GE SFP ports ports | built-in AC power

SKU
 S220-8T4S

Switching capacity
 24 Gbit/s

Packet forwarding rate
 18 Mpps

GE RJ45
 8 (1G/100M/10M)

GE SFP
 4 (1G)

Certification
 EMC certification Safety certification Manufacturing certification

Chassis material
 Metal

Static power consumption [W]
 10.52

Typical power consumption [W]
 15.95

Installation type
 Rack mounting,Desk mounting,Wall mounting

Maximum power consumption [W]
 21.52

Number of fans modules
 1

Power supply mode
 AC built-in

Input voltage range [V]
 AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz

Power supply surge protection [kV]
 Differential mode: ±6 kV; common mode: ±6 kV

Heat dissipation mode
 Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction
 Air intake from left and front, air exhaustion from right

Dimensions
 without packaging (H x W x D) [mm(in.)]
 Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 250.0 mm x 180.0 mm (1.72 in. x 9.84 in. x 7.09 in.)
 Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 250.0 mm x 187.0 mm (1.72 in. x 9.84 in. x 7.36 in.)

 Dimensions with packaging (H x W x D) [mm(in.)]
 90.0 mm x 370.0 mm x 380.0 mm (3.54 in. x 14.57 in. x 14.96 in.)

Weight
 without packaging [kg(lb)]
 1.41 kg (3.11 lb)

 with packaging [kg(lb)]
 2.22 kg (4.89 lb)

Warranty
 3 Years
