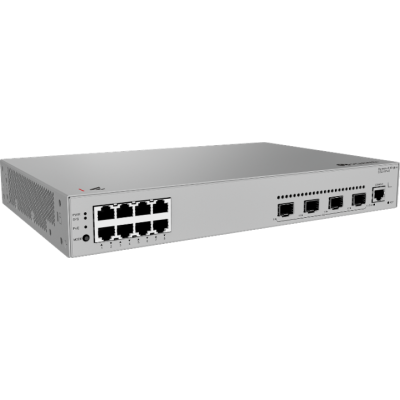

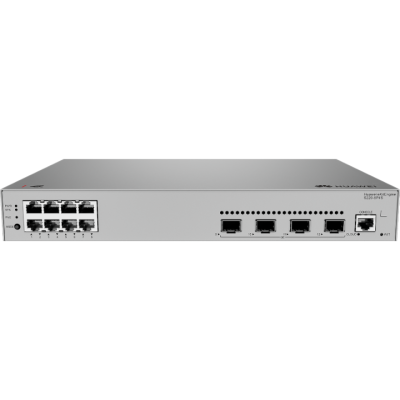

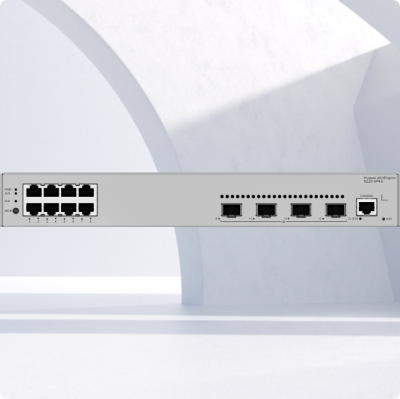

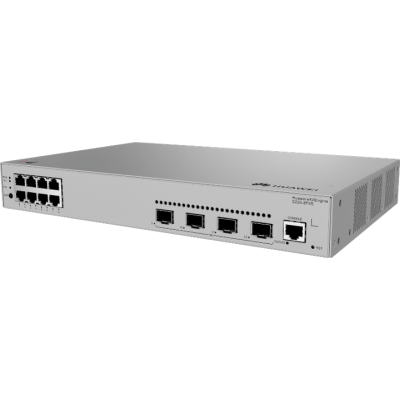

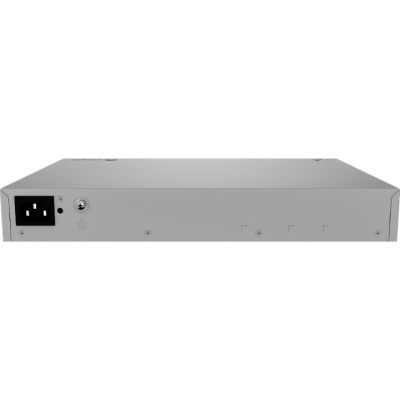

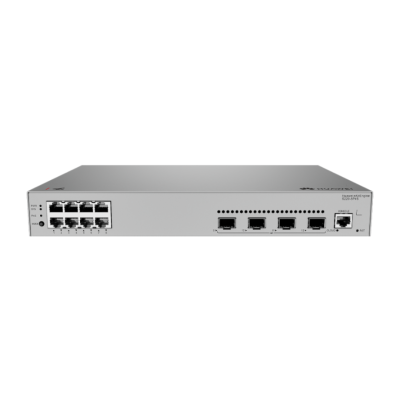

Huawei S220-Series - S220-8P4S Switch

Brand
 Huawei

Description
 Huawei S220-Series : 8 x 10/100/1000BASE-T，4 x GE SFP ports ports PoE+ Budget 124W | built-in AC power

SKU
 S220-8P4S

Switching capacity
 24 Gbit/s

Packet forwarding rate
 18 Mpps

GE RJ45
 8 (PoE+) (1G/100M/10M)

GE SFP
 4 (1G)

Certification
 EMC certification Safety certification Manufacturing certification

Chassis material
 Metal

Static power consumption [W]
 17.19

Typical power consumption [W]
 19.99

Installation type
 Rack mounting,Desk mounting,Wall mounting

Maximum power consumption [W]
 - Without PoE: 25.09 W - Full PoE load: 166.65 W (PoE: 125 W)

Number of fans modules
 1

Power supply mode
 AC built-in

Input voltage range [V]
 AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz

Power supply surge protection [kV]
 Differential mode: ±6 kV; common mode: ±6 kV

Heat dissipation mode
 Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction
 Air intake from left and front, air exhaustion from right

Dimensions
 without packaging (H x W x D) [mm(in.)]
 Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320.0 mm x 210.0 mm (1.72 in. x 12.6 in. x 8.27 in.)
 Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 320.0 mm x 217.0 mm
 (1.72 in. x 12.6 in. x 8.54 in.)

 Dimensions with packaging (H x W x D) [mm(in.)]
 90.0 mm x 465.0 mm x 380.0 mm (3.54 in. x 18.31 in. x 14.96 in.)

Weight
 without packaging [kg(lb)]
 2.5 (5.51)

 with packaging [kg(lb)]
 3.05 kg (6.72 lb)

Warranty
 3 Years
