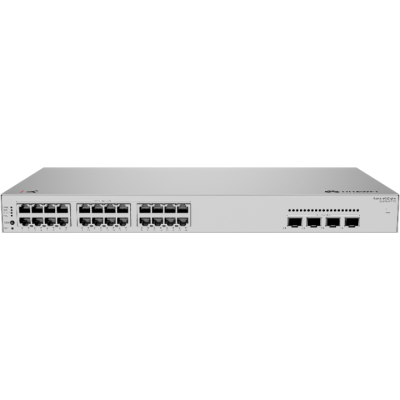

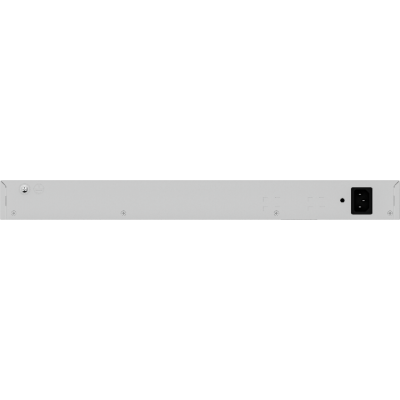

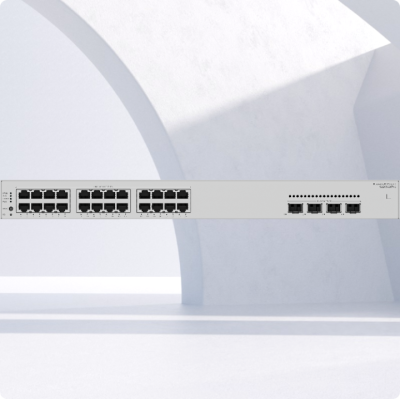

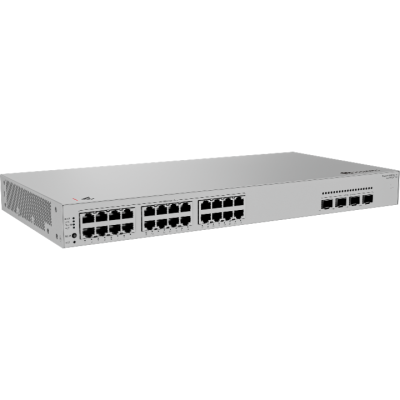

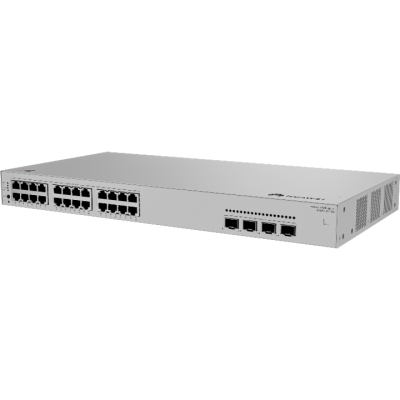

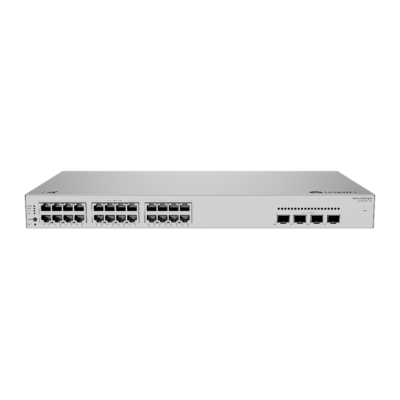

Huawei S220S-Series - S220S-24P4J Switch

Brand
 Huawei

Description
 Huawei S220S-Series : 24 x 10/100/1000BASE-T PoE+ Budget 400W ports，4 x 2.5GE SFP ports

SKU
 S220S-24P4J

Switching capacity
 68 Gbit/s

Packet forwarding rate
 51 Mpps

GE RJ45
 24 (PoE+) (1G/100M/10M)

2.5G SFP
 4 (2.5G/1G/100M)

Certification
 EMC certification Safety certification Manufacturing certification

Chassis material
 Metal

Static power consumption [W]
 18.74

Typical power consumption [W]
 33.32

Installation type
 Rack mounting,Desk mounting,Wall mounting

Maximum power consumption [W]
 - Without PoE: 38.58 W - Full PoE load: 482.55 W (PoE: 400 W)

Number of fans modules
 2

Power supply mode
 AC built-in

Input voltage range [V]
 - AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz - High-voltage DC input: 190 V DC to 290 V DC

Power supply surge protection [kV]
 Differential mode: ±6 kV; common mode: ±6 kV

Heat dissipation mode
 Air cooling for heat dissipation, intelligent fan speed adjustment

Dimensions
 without packaging (H x W x D) [mm(in.)]
 Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442 mm x 220 mm (1.72 in. x 17.40 in. x 8.66 in.)
 Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 227 mm
 (1.72 in. x 17.40 in. x 8.94 in.)

 Dimensions with packaging (H x W x D) [mm(in.)]
 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)

Weight
 without packaging [kg(lb)]
 2.8 kg (6.17 lb)

 with packaging [kg(lb)]
 3.71 kg (8.18 lb)

Warranty
 3 Years
