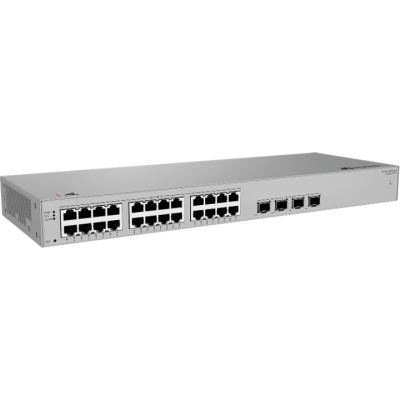

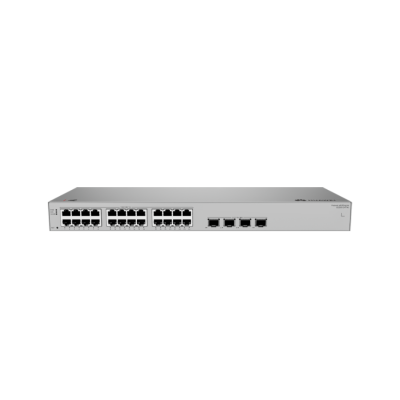

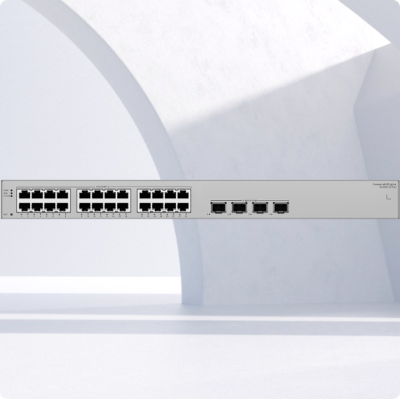

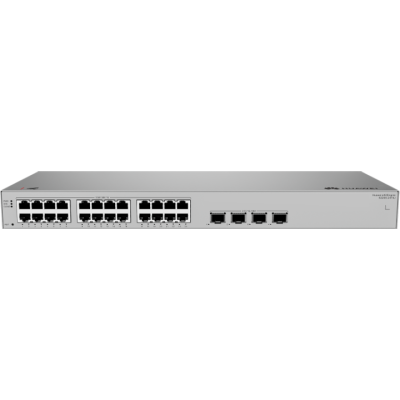

Huawei S220S-Series - S220S-24T4J Switch

Brand
 Huawei

Description
 Huawei S220S-Series : 24 x 10/100/1000BASE-T ports，4 x 2.5GE SFP ports

SKU
 S220S-24T4J

Switching capacity
 68 Gbit/s

Packet forwarding rate
 51 Mpps

GE RJ45
 24 (1G/100M/10M)

2.5G SFP
 4 (2.5G/1G/100M)

Certification
 EMC certification Safety certification Manufacturing certification

Chassis material
 Metal

Static power consumption [W]
 11.14

Typical power consumption [W]
 21.32

Installation type
 Rack mounting,Desk mounting,Wall mounting

Power supply mode
 AC built-in

Input voltage range [V]
 AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz

Power supply surge protection [kV]
 ±4 kV in differential mode and ±4 kV in common mode

Heat dissipation mode
 Natural heat dissipation

Dimensions
 without packaging (H x W x D) [mm(in.)]
 Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442 mm x 160 mm (1.72 in. x 17.40 in. x 6.30 in.)
 Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 167 mm (1.72 in. x 17.40 in. x 6.57 in.)

 Dimensions with packaging (H x W x D) [mm(in.)]
 90.0 mm x 550.0 mm x 260.0 mm (3.54 in. x 21.65 in. x 10.24 in.)

Weight
 without packaging [kg(lb)]
 1.97 (4.34)

 with packaging [kg(lb)]
 2.76 kg (6.08 lb)

Warranty
 3 Years
