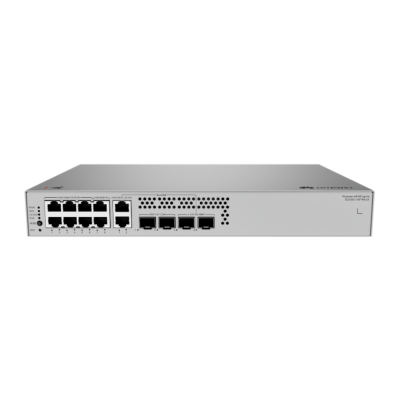

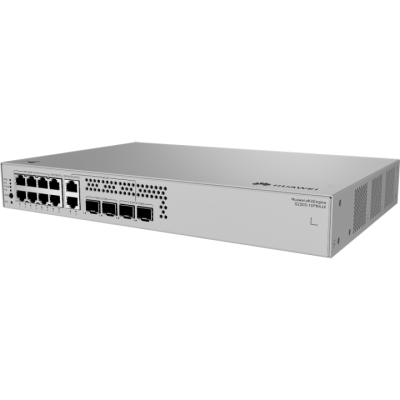

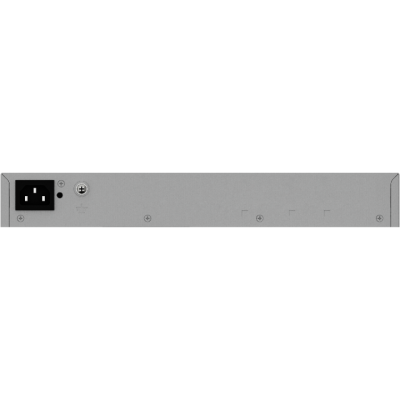

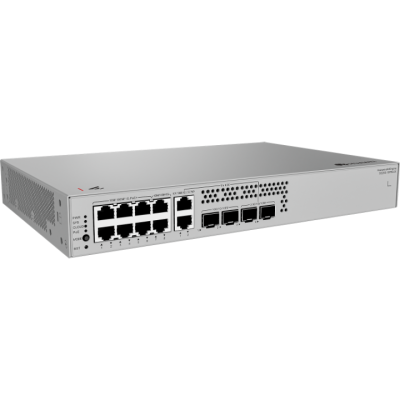

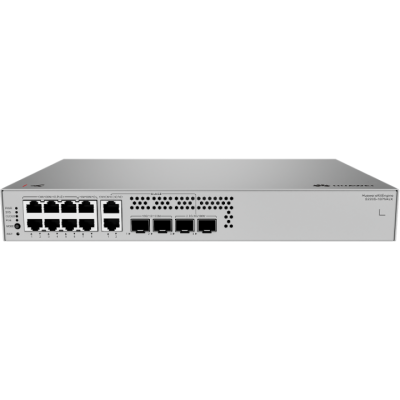

Huawei S220S-Series - S220S-10PN4JX Switch

Brand
 Huawei

Description
 Huawei S220S-Series : 6 x 10/100/1000BASE-T ports, 2 x 10/100/1000BASE-T ports, 2 x 10M/100M/GE/2.5GE BASE-T PoE+ Budget 128W ports (multi-GE ports), 2 x 10GE SFP+ ports, 2 x 2.5GE SFP port

SKU
 S220S-10PN4JX

Switching capacity
 76 Gbit/s

Packet forwarding rate
 57 Mpps

GE RJ45
 8 (6 PoE+) (1G/100M/10M)

2.5G SFP
 2 (2.5G/1G/100M)

2.5GE RJ45
 2 (PoE+) (2.5G/1G/100M/10M)

10G SFP+
 2 (10G/1G/100M)

PoE
 Supported

Maximum PoE power consumption [W]
 128

Certification
 EMC certification Safety certification Manufacturing certification

Chassis material
 Metal

Static power consumption [W]
 14.73

Typical power consumption [W]
 23.57

Maximum power consumption [W]
 - Without PoE: 24.03 W - Full PoE load: 162.36 W (PoE: 128 W)

Power supply mode
 AC built-in

Input voltage range [V]
 AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz

Power supply surge protection [kV]
 Differential mode: ±6 kV; common mode: ±6 kV

Heat dissipation mode
 Natural heat dissipation

Dimensions
 without packaging (H x W x D) [mm(in.)]
 Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320 mm x 210 mm (1.72 in. x 12.60 in. x 8.27 in.)
 Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 320 mm x 217 mm
 (1.72 in. x 12.60 in. x 8.54 in.)

 Dimensions with packaging (H x W x D) [mm(in.)]
 91.0 mm x 465.0 mm x 355.0 mm (3.58 in. x 18.31 in. x 13.98 in.)

Weight
 without packaging [kg(lb)]
 2.55 kg (5.62 lb)

 with packaging [kg(lb)]
 3.44 kg (7.58 lb)

Warranty
 3 Years

*ผิด ตก ยกเว้น Errors and omissions excepted (E&OE)*

หมายเหตุ  จำนวนสินค้าในสต๊อกมีการเปลี่ยนแปลงทุกวัน กรุณาตรวจสอบจำนวนสินค้า และราคาก่อนการสั่งซื้อนะคะ
