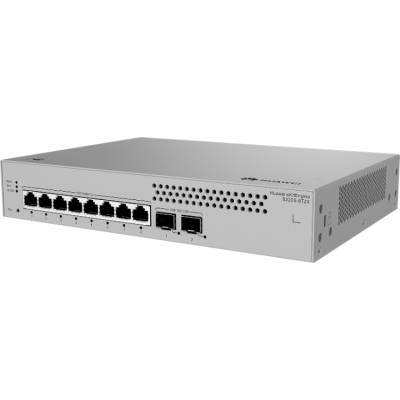

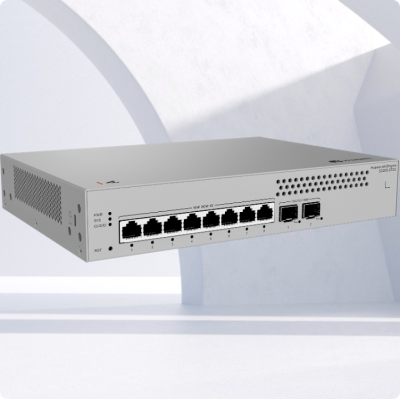

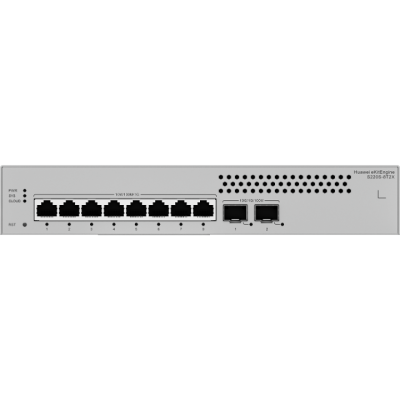

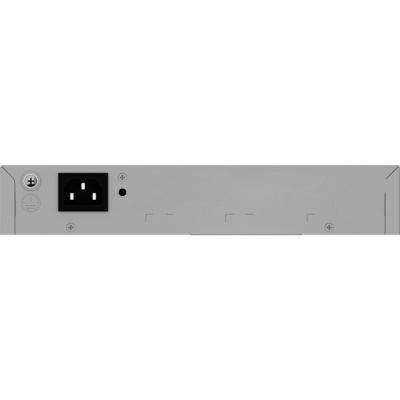

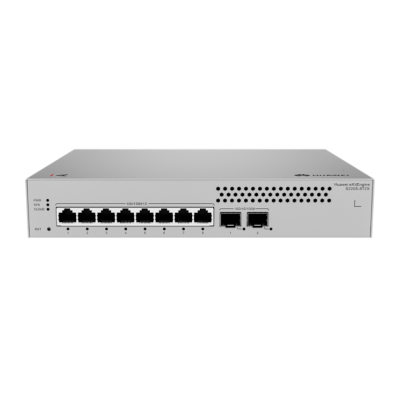

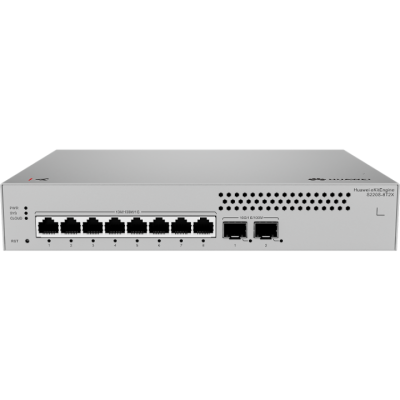

Huawei S220S-Series - S220S-8T2X Switch

Brand
 Huawei

Description
 Huawei S220S-Series : 8 x 10/100/1000BASE-T ports，2 x 10GE SFP+ ports

SKU
 S220S-8T2X

Switching capacity
 56 Gbit/s

Packet forwarding rate
 42 Mpps

GE RJ45
 8 (1G/100M/10M)

10G SFP+
 2 (10G/1G/100M)

Certification
 EMC certification Safety certification Manufacturing certification

Chassis material
 Metal

Static power consumption [W]
 5.18

Typical power consumption [W]
 10.31

Maximum power consumption [W]
 10.94

Power supply mode
 AC built-in

Input voltage range [V]
 AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz

Power supply surge protection [kV]
 Differential mode: ±6 kV; common mode: ±6 kV

Heat dissipation mode
 Natural heat dissipation

Dimensions
 without packaging (H x W x D) [mm(in.)]
 Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 250 mm x 180 mm (1.72 in. x 9.84 in. x 7.09 in.)
 Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 250 mm x 187 mm
 (1.72 in. x 9.84 in. x 7.36 in.)

 Dimensions with packaging (H x W x D) [mm(in.)]
 113.0 mm x 310.0 mm x 240.0 mm (4.45 in. x 12.20 in. x 9.45 in.)

Weight
 without packaging [kg(lb)]
 1.34 (2.95)

 with packaging [kg(lb)]
 2.07 kg (4.56 lb)

Warranty
 3 Years
