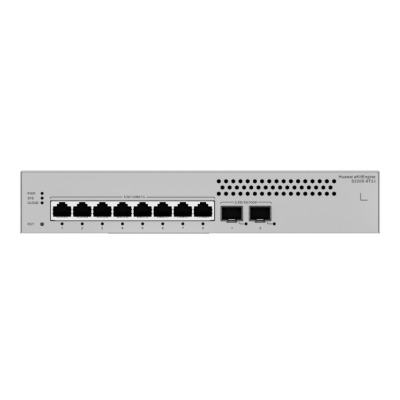

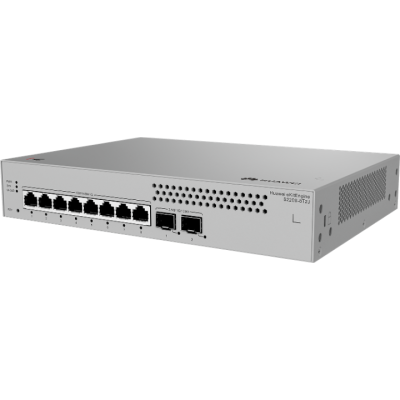

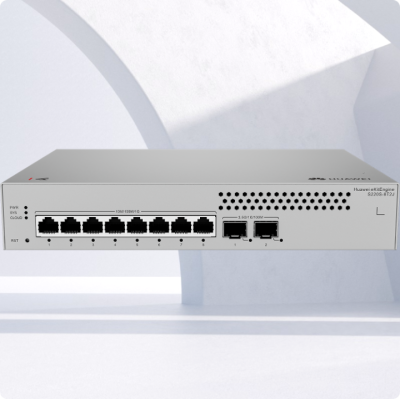

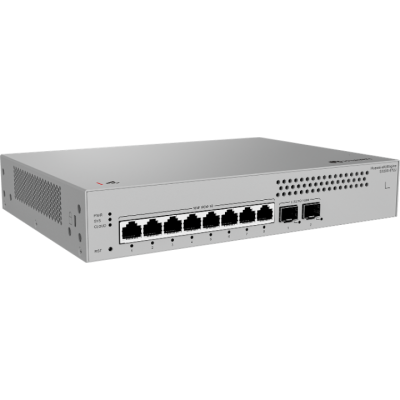

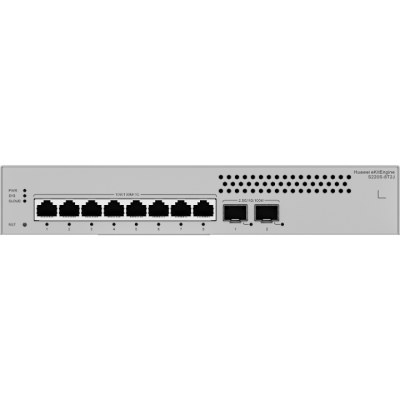

Huawei S220S-Series - S220S-8T2J Switch

Brand
 Huawei

Description
 Huawei S220S-Series : 8 x 10/100/1000BASE-T ports，2 x 2.5GE SFP ports

SKU
 S220S-8T2J

Chassis height [U]
 1

Installation type
 Rack mounting,Desk mounting,Wall mounting

Typical power consumption [W]
 16

Static power consumption [W]
 17

Static power consumption [W]
 5

100% power consumption [W]
 16

Maximum number of physical ports on the entire device
 26

Maximum number of GE ports
 26

Maximum number of FE ports
 26

Restriction on the operating temperature variation rate [°C(°F)]
 When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Long-term operating relative humidity
 5% RH to 95% RH (non-condensing)

Long-term operating altitude
 05000 m (016404 ft.)

Storage altitude
 0-5000 m (0-16404 ft.)

Power supply mode
 Power adapter

Rated input voltage
 AC input: 100240 V AC; 50/60 Hz

Input voltage range
 AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz

Dimensions without packaging (H x W x D) [mm(in.)]
 Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 160.0 mm (1.72 in. x 17.40 in. x 6.30 in.)
 Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 167.0 mm
 (1.72 in. x 17.40 in. x 6.57 in.)

 Dimensions with packaging (H x W x D) [mm(in.)]
 90.0 mm x 550.0 mm x 260.0 mm (3.54 in. x 21.65 in. x 10.24 in.)

Weight
 without packaging [kg(lb)]
 1.8 (3.97)

 with packaging [kg(lb)]
 2.3 (5.07)

Warranty
 3 Years
