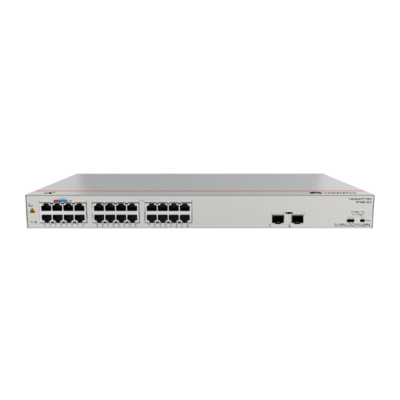

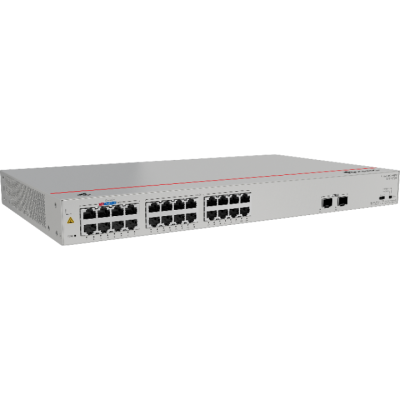

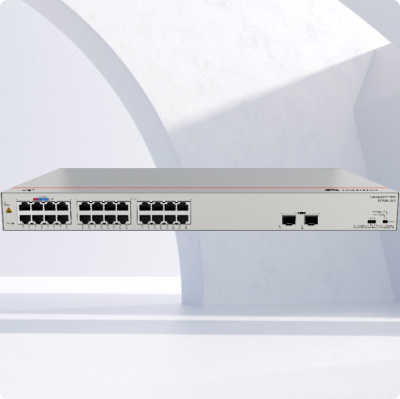

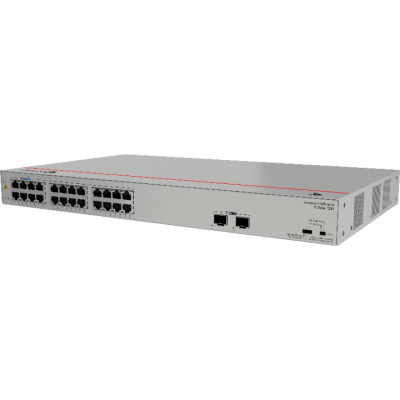

Huawei S110-Series - S110-24LP2SR Switch

Brand
 Huawei

Description
 Huawei S110-Series : 24 x 10/100/1000BASE-T ports PoE+ Budget 247W, 2 x GE SFP ports

SKU
 S110-24LP2SR

Switching capacity
 52 Gbit/s

Packet forwarding rate
 38.69 Mpps

GE RJ45
 24 (PoE+) (1G/100M/10M)

PoE
 Supported

10G SFP+
 4 (10G/1G)

PoE
 Supported

Maximum PoE power consumption [W]
 124

Certification
 EMC certification Safety certification Manufacturing certification

Chassis material
 Metal

Static power consumption [W]
 13

Installation type
 Rack mounting,Desk mounting,Wall mounting

Maximum power consumption [W]
 Without PoE: 24 W Full PoE load: 165 W (PoE: 124 W)

Power supply mode
 AC built-in

Input voltage range [V]
 AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz

Power supply surge protection [kV]
 Differential mode: ±6 kV; common mode: ±6 kV

Heat dissipation mode
 Natural heat dissipation

Dimensions
 Dimensions without packaging (H x W x D) [mm(in.)]
 Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 260.0 mm (1.72 in. x 17.40 in. x 10.24 in.)
 Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 267.0 mm (1.72 in. x 17.40 in. x 10.51 in.)

 Dimensions with packaging (H x W x D) [mm(in.)]
 90.0 mm x 555.0 mm x 400.0 mm (3.54 in. x 21.85 in. x 15.75 in.)

Weight
 Weight without packaging [kg(lb)]
 3.2 kg (7.1 lb)

 Weight with packaging [kg(lb)]
 3.7 kg (8.16 lb)

Warranty
 3 Years
