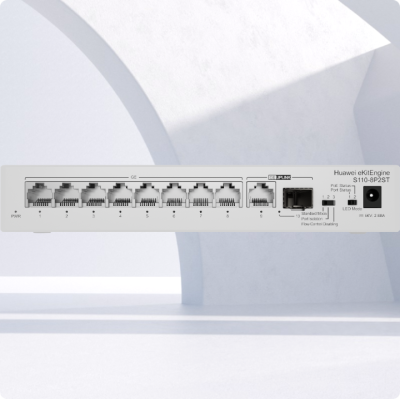

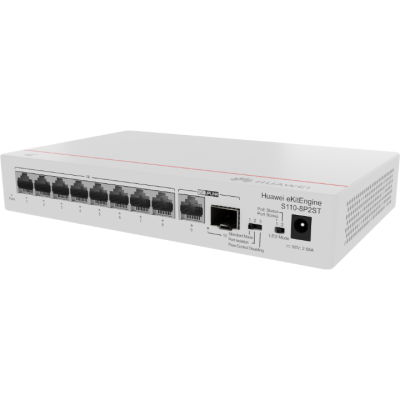

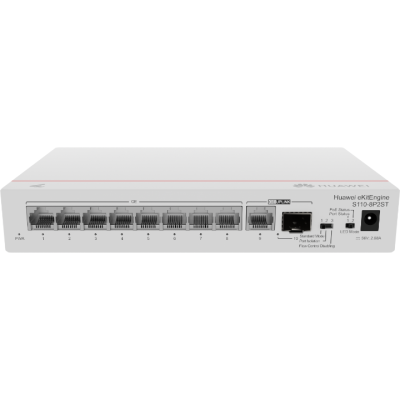

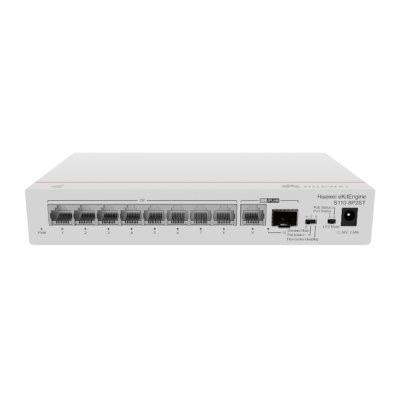

Huawei S110-Series - S110-8P2ST Switch

Brand
 Huawei

Description
 Huawei S110-Series : 8 x 10/100/1000BASE-T ports PoE+ Budget 124W, 1 x GE SFP port, 1 x 10/100/1000BASE-T port

SKU
 S110-8P2ST

Chassis height [U]
 0.8

Installation type
 Desk mounting,Wall mounting

Typical power consumption [W]
 11

Maximum power consumption [W]
 Without PoE: 11 W Full PoE load: 155 W (PoE: 124 W)

Static power consumption [W]
 4

100% power consumption [W]
 11

Maximum number of physical ports on the entire device
 10

Maximum number of GE ports
 10

Maximum number of FE ports
 10

Restriction on the operating temperature variation rate [°C(°F)]
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Long-term operating relative humidity [RH]
 5% RH to 95% RH (non-condensing)

Long-term operating altitude [m(ft.)]
 05000 m (016404 ft.)

Storage altitude [m(ft.)]
 0-5000 m (0-16404 ft.)

Maximum input current [A]
 2.68 A

Service port surge protection [kV]
 Common mode: ±4 kV

Power supply surge protection [kV]
 Differential mode: ±6 kV; common mode: ±6 kV

Heat dissipation mode
 Natural heat dissipation

PoE
 Supported

Maximum PoE power consumption [W]
 124

PoE+ power interfaces
 8

Full load PoE power consumption 15.4W (802.3af)
 8

Full load PoE power consumption 30W (802.3at)
 4

Certification
 EMC certification Safety certification Manufacturing certification

Power supply mode
 Power adapter

Rated input voltage [V]
 Power adapter input: 100240 V AC; 50/60 Hz Power adapter output: 56 V DC

Input voltage range [V]
 Power adapter input: 90 V AC to 264 V AC; 47 Hz to 63 Hz

Dimensions without packaging (H x W x D) [mm(in.)]
 Basic dimensions (excluding the parts protruding from the body): 35 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.)
 Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 36.5 mm x 210.0 mm x 131.7 mm (1.44 in. x 8.27 in. x 5.19 in.)

Dimensions with packaging (H x W x D) [mm(in.)]
 150.0 mm x 270.0 mm x 200.0 mm (5.91 in. x 10.63 in. x 7.87 in.)

Warranty
 3 Years
