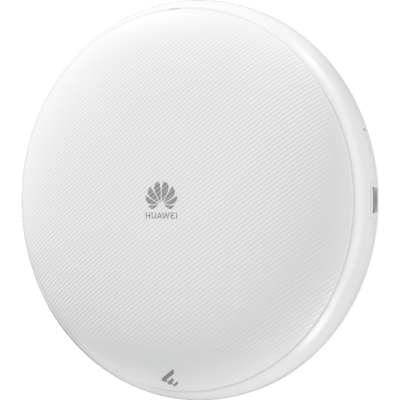

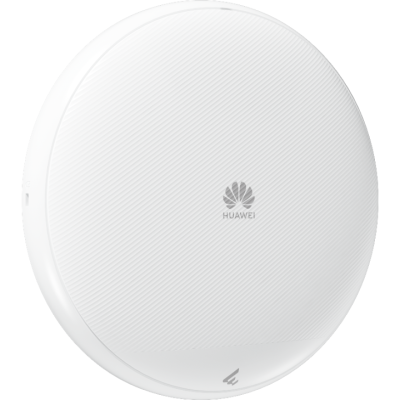

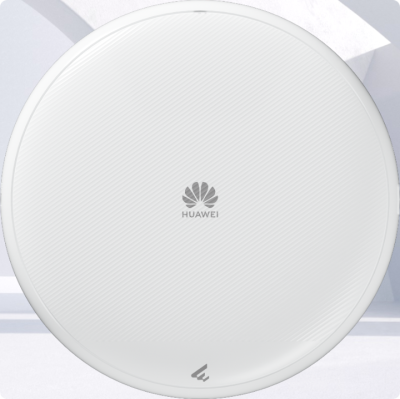

Huawei Indoor AP673 Access Point

Brand
 Huawei

Description
 Huawei Indoor AP673 Access Point

SKU
 AP673

Wi-Fi standard
 2.4 GHz: 802.11b/g/n/ax/be 5 GHz: 802.11a/n/ac/ac Wave 2/ax/be 6 GHz: 802.11a/ax/be

Installation Type
 Wall,Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod),Junction Box (86 mm/1-Gang 120 mm/Octagonal/2-Gang 120 mm)

Optimal Signal Distance (m)
 40

Device Rate
 13.66 Gbps

Max Number of Access Users
 1024

Recommended Number of Access Users
 300

Maximum number of physical ports on the entire device

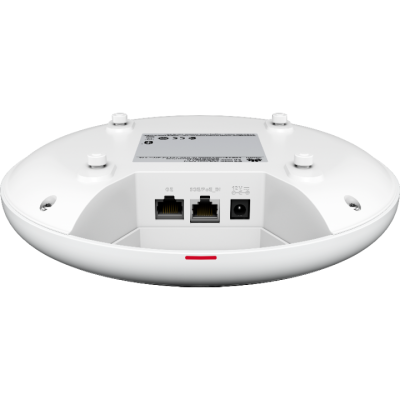

 5GE (RJ45) x 1, 100M/1000M/2500M/5000M auto-sensing GE (RJ45) x 1, 10M/100M/1000M auto-sensing

Radio number
 3

Maximum channel bandwidth [MHz]
 Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 80 MHz Radio 2 (6 GHz): 320 MHz

Maximum transmit power
 2.4 GHz: 20 dBm/chain 23 dBm (combined power) 5 GHz (2x2): 20 dBm/chain 23 dBm (combined power) 6 GHz (4x4): 20 dBm/chain 26 dBm (combined power)

MIMO spatial streams
 Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 Radio 2 (6 GHz): 4x4

Maximum power consumption [W]
 21.1 W (excluding USB)

Input voltage range [V]
 DC: 12 V ± 10% PoE: 802.3at/af

Radio interface
 Built-in smart antennas

Antenna gain
 2.4 GHz: 4 dBi/chain (peak gain) 2 dBi (combined gain) 5 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain) 6 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain)

Operating frequency band
 2.4GHz,5GHz,6GHz

Dimensions
 without packaging (H x W x D) [mm(in.)]
 Diameter x depth: 220 mm x 45 mm (8.66 in. x 1.77 in.)

 with packaging (H x W x D) [mm(in.)]
 72 mm x 260 mm x 255 mm (2.83 in. x 10.24 in. x 10.04 in.)

Weight
 without packaging [kg(lb)]
 0.745 kg (1.64 lb)

 with packaging [kg(lb)]
 1.230 kg (2.71 lb)

Warranty
 3 Years
