Huawei Wall plate AP266 Access Point

Brand
 Huawei

Description
 Huawei Wall plate AP266 Access Point

SKU
 AP266

Wi-Fi standard
 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax

Installation Type
 Desk,Wall,Ceiling (Gypsum Board),Junction Box (86 mm/1-Gang 120 mm/Octagonal)

Optimal Signal Distance (m)
 20

Device Rate
 2.975 Gbps

Service port surge protection
 PoE ports: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B Non-PoE ports: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B

Max Number of Access Users
 128

Recommended Number of Access Users
 64

Maximum number of physical ports on the entire device

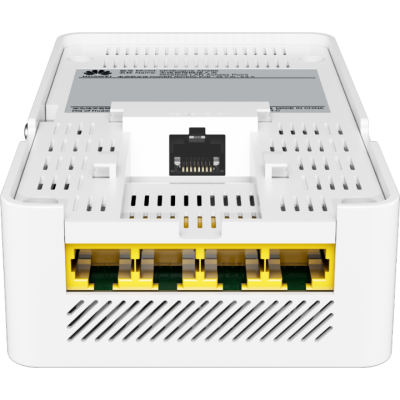

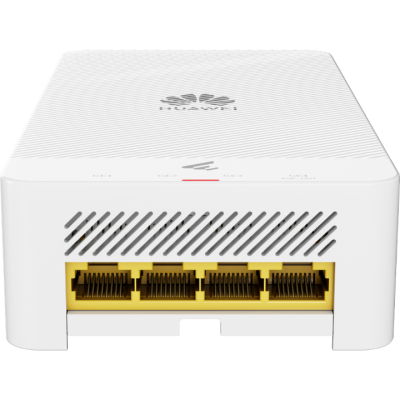

 GE (RJ45) x 5, 10M/100M/1000M auto-sensing

Radio number
 2

Maximum channel bandwidth [MHz]
 Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 160 MHz

Maximum transmit power
 2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power)

MIMO spatial streams
 Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2

Maximum power consumption [W]
 9.4 W (excluding PoE out)

Input voltage range [V]
 PoE: 802.3af

Radio interface
 Built-in smart antennas

Antenna gain
 2.4G: 4 dBi/chain (peak value) 2 dBi (combined gain) 5G: 4 dBi/chain (peak value) 1 dBi (combined gain)

Operating frequency band
 2.4GHz,5GHz

Dimensions
 without packaging (H x W x D) [mm(in.)]
 160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.)

 with packaging (H x W x D) [mm(in.)]
 187 mm x 108 mm x 68 mm (7.36 in. x 4.25 in. x 2.68 in.)

Weight
 without packaging [kg(lb)]
 0.23 kg (0.51 lb)

 with packaging [kg(lb)]
 0.42 kg (0.93 lb)

Warranty
 3 Years
