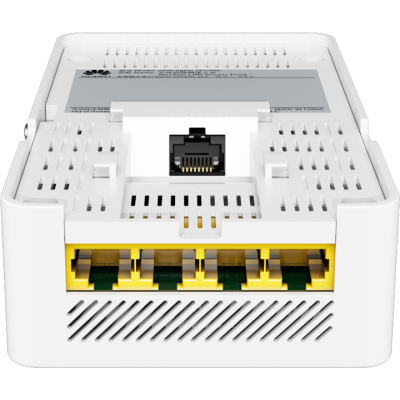

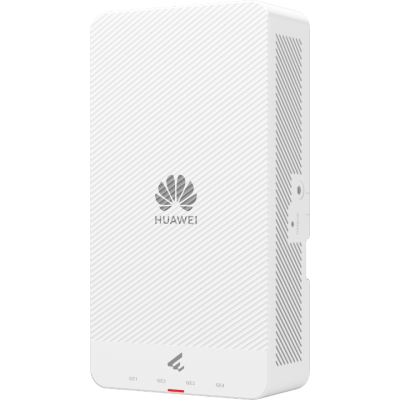

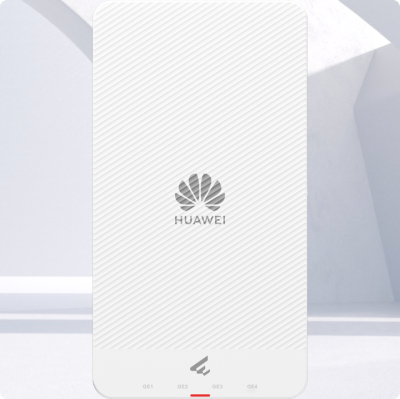

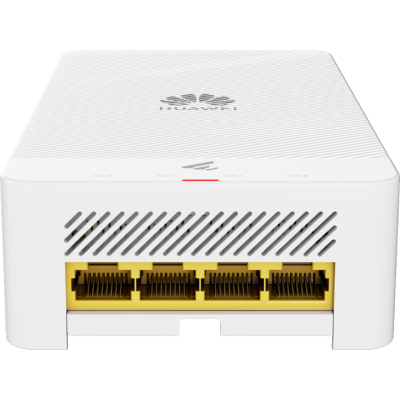

Huawei Wall plate AP265E Access Point

Brand
 Huawei

Description
 Huawei Wall plate AP265E Access Point

SKU
 AP265E

Wi-Fi standard
 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax

Installation Type
 Desk,Wall,Ceiling (Gypsum Board),Junction Box (86 mm/1-Gang 120 mm/Octagonal)

Optimal Signal Distance (m)
 20

Device Rate
 2.975 Gbps

Max Number of Access Users
 128

Recommended Number of Access Users
 64

Maximum number of physical ports on the entire device
 GE (RJ45) x 5, 10M/100M/1000M auto-sensing

Radio number
 2

Maximum channel bandwidth [MHz]
 Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 160 MHz

Maximum transmit power
 2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power)

MIMO spatial streams
 Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2

Maximum power consumption [W]
 9.4

Input voltage range [V]
 PoE: 802.3af

Radio interface
 Built-in smart antennas

Antenna gain
 2.4G: 4 dBi/chain (peak value) 2 dBi (combined gain) 5G: 4 dBi/chain (peak value) 1 dBi (combined gain)

Operating frequency band
 2.4GHz,5GHz

Dimensions
 without packaging (H x W x D) [mm(in.)]
 160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.)

 with packaging (H x W x D) [mm(in.)]
 187 mm x 108 mm x 68 mm (7.36 in. x 4.25 in. x 2.68 in.)

Weight
 without packaging [kg(lb)]
 0.23 kg (0.51 lb)

 with packaging [kg(lb)]
 0.42 kg (0.93 lb)

Warranty
 3 Years
