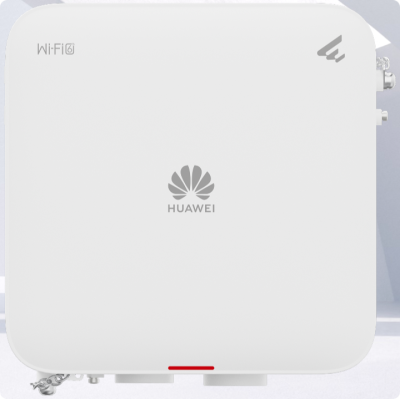

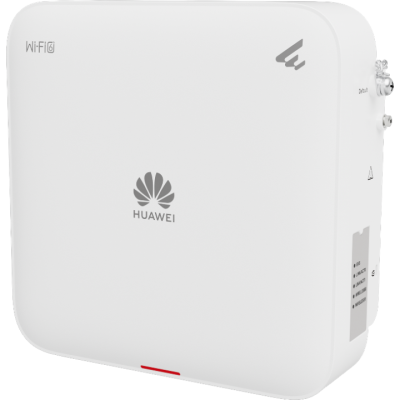

Huawei Out-door AP761 Access Point

Brand
 Huawei

Description
 Huawei Out-door AP761 Access Point

SKU
 AP761

Wi-Fi standard
 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax

Installation Type

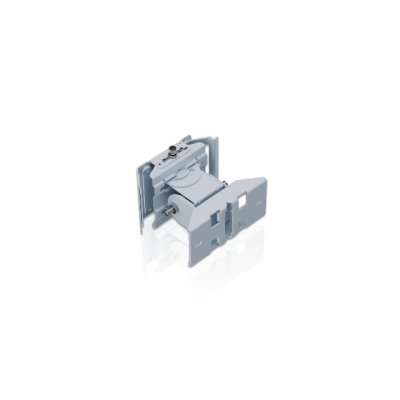

 Wall,Pole

Optimal Signal Distance (m)
 180

Device Rate
 1.775 Gbps

Max Number of Access Users
 1024

Recommended Number of Access Users
 120

Maximum number of physical ports on the entire device

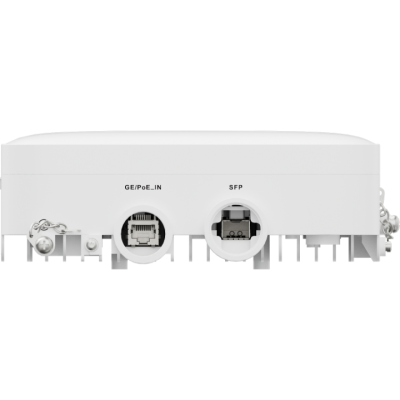

 GE (RJ45) x 1, 10M/100M/1000M auto-sensing GE optical port (SFP)

Radio number
 2

Maximum channel bandwidth [MHz]
 Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 80 MHz

Maximum transmit power
 2.4G: 28 dBm (Max) 5G: 27 dBm (Max) Note: This is the total MIMO radio power, which is the same as: 2.4G: 25 dBm/chain (Max) 5G: 24 dBm/chain (Max) BLE: < 10 dBm

MIMO spatial streams
 Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2

Maximum power consumption [W]
 17.7

Input voltage range [V]
 PoE: 802.3at/af

Radio interface
 Built-in directional antennas

Antenna gain
 2.4G: 10 dBi 5G: 11 dBi BLE: 5 dBi

Operating frequency band
 2.4GHz,5GHz

Dimensions
 without packaging (H x W x D) [mm(in.)]
 69 mm x 200 mm x 200 mm (2.72 in. x 7.87 in. x 7.87 in.)

 with packaging (H x W x D) [mm(in.)]
 160 mm x 470 mm x 390 mm (6.30 in. x 18.50 in. x 15.35 in.)

Weight
 without packaging [kg(lb)]
 1.91 kg (4.21 lb)

 with packaging [kg(lb)]
 3.73 kg (8.22 lb)

Warranty
 3 Years
