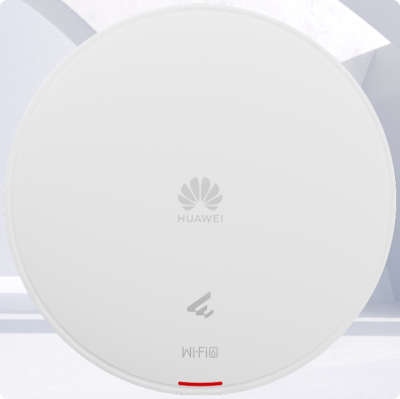

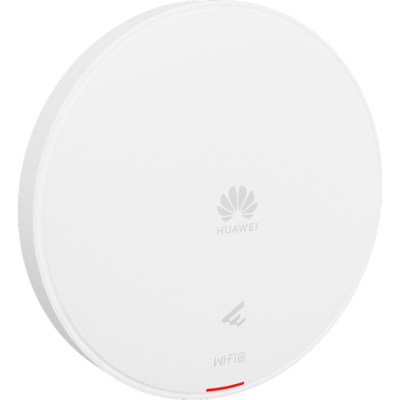

Huawei Indoor AP661 Access Point

Brand
 Huawei

Description
 Huawei Indoor AP661 Access Point

SKU
 AP661

Wi-Fi standard
 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax

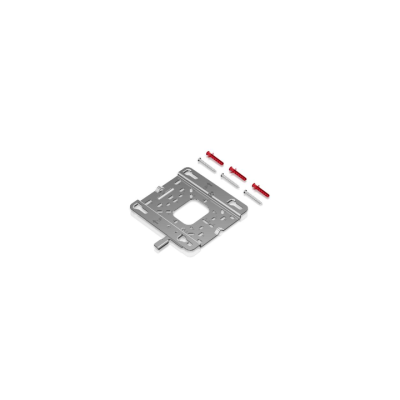

Installation Type
 Wall,Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod),Junction Box (86 mm/1-Gang 120 mm/Octagonal/2-Gang 120 mm)

Optimal Signal Distance (m)
 30

Device Rate
 6.575 Gbps

Max Number of Access Users
 1536

Recommended Number of Access Users
 300

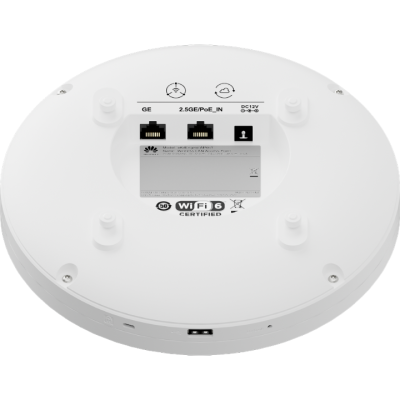

Maximum number of physical ports on the entire device
 2.5GE (RJ45) x 1, 100M/1000M/2.5G auto-sensing GE (RJ45) x 1, 10M/100M/1000M auto-sensing

Radio number
 3

Maximum channel bandwidth [MHz]
 Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz-H): 80 MHz Radio 2 (5 GHz-L): 160 MHz

Maximum transmit power
 2.4 GHz: 22 dBm/chain 25 dBm (combined power) 5 GHz (2x2): 20 dBm/chain 23 dBm (combined power) 5 GHz (4x4): 20 dBm/chain 26 dBm (combined power) BLE: < 10 dBm

MIMO spatial streams
 Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz-H): 2x2 (high frequency band: 54905850 MHz) Radio 2 (5 GHz-L): 4x4 (low frequency band: 51505330MHz)

Maximum power consumption [W]
 21.2 (excluding USB), 802.3at/af power supply

Input voltage range [V]
 DC: 12 V ± 10% PoE: 802.3at/af

Radio interface
 Built-in smart antennas

Antenna gain
 2.4G: 4 dBi/chain (peak value) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain) BLE: 4 dBi

Operating frequency band
 2.4GHz,5GHz

Dimensions
 without packaging (H x W x D) [mm(in.)]
 Diameter x depth: 220 mm x 50 mm (8.66 in. x 1.97 in.)

Weight
 Weight without packaging [kg(lb)]
 0 1.08 kg (2.38 lb)

Warranty
 3 Years
