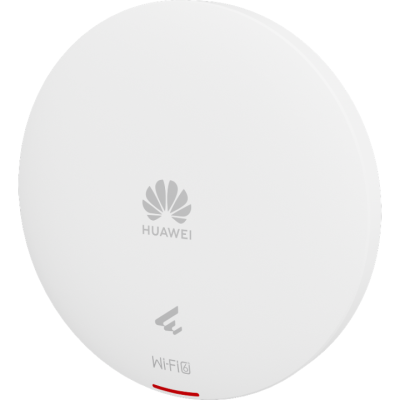

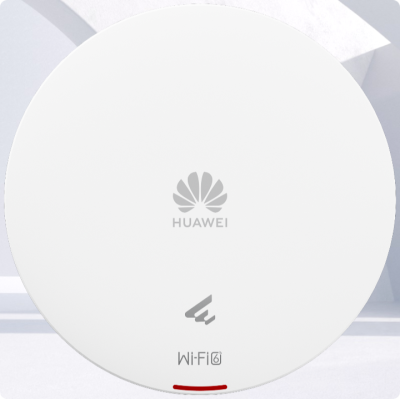

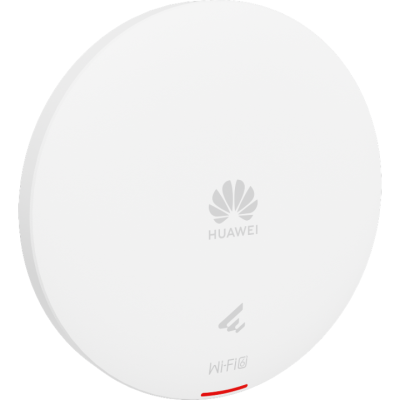

Huawei AP361 Access Point

Brand
 Huawei

Description
 Huawei AP361 Access Point

SKU
 AP361

Wi-Fi standard
 2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax

Installation Type

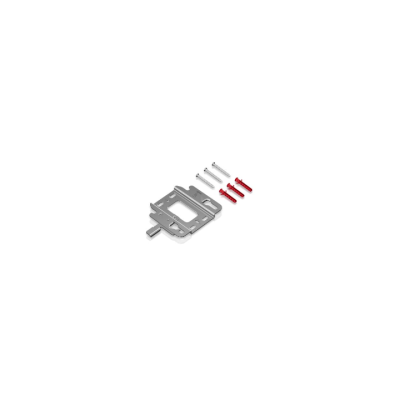

 Wall,Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod)

Optimal Signal Distance (m)
 20

Device Rate
 1.775 Gbps

Maximum number of physical ports on the entire device

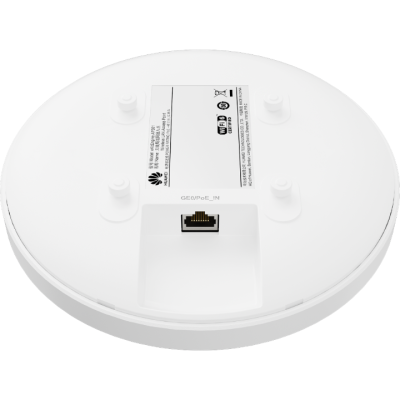

 GE (RJ45) x 1, 10M/100M/1000M auto-sensing

Radio number
 2

Maximum channel bandwidth [MHz]
 Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 80 MHz

Maximum transmit power
 2.4 GHz: 20 dBm/chain 23 dBm (combined power) 5 GHz: 20 dBm/chain 23 dBm (combined power)

MIMO spatial streams
 Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2

Maximum power consumption [W]
 9.4

Input voltage range [V]
 9.4

Input voltage range [V]
 PoE: 802.3af

Radio interface
 Built-in smart antennas

Antenna gain
 2.4G: 4 dBi/chain (peak) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain)

Operating frequency band
 2.4GHz,5GHz

Dimensions
 without packaging (H x W x D) [mm(in.)]
 Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.)

 with packaging (H x W x D) [mm(in.)]
 200 mm x 231 mm x 61 mm (7.87 in. x 9.09 in. x 2.40 in.)

Weight
 without packaging [kg(lb)]
 0.45 kg (0.99 lb)

 with packaging [kg(lb)]
 0.75 kg (1.65 lb)

Warranty
 3 Years
