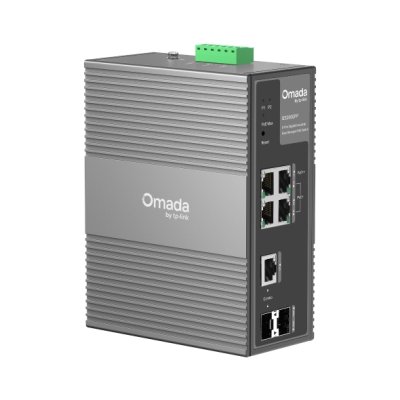

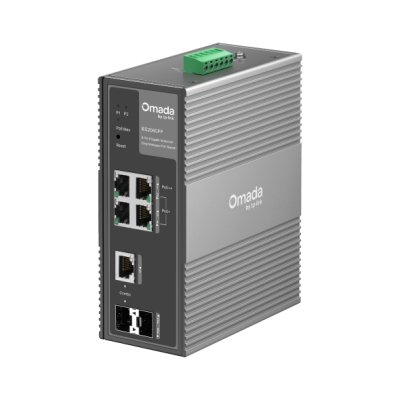

TP-Link (IES206GPP) Omada 6-Port Gigabit Industrial Easy Managed Switch with 3-Port PoE+ and 1-Port PoE++

Brand
 TP-Link

Description
 TP-Link (IES206GPP) Omada 6-Port Gigabit Industrial Easy Managed Switch with 3-Port PoE+ and 1-Port PoE++

SKU
 IES206GPP

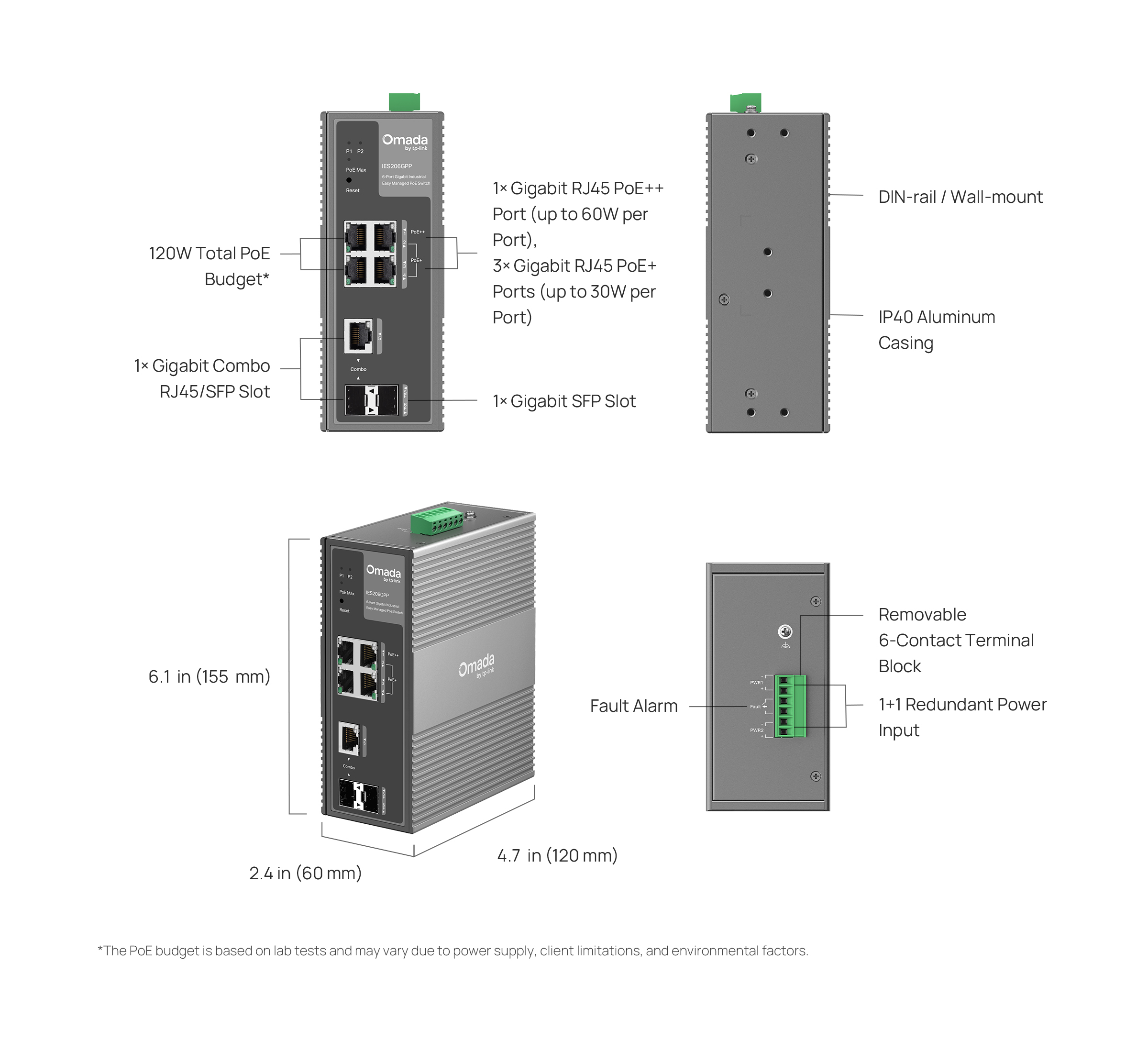

Hardware Features

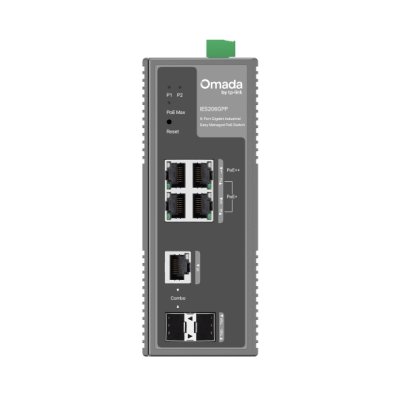

 Interface
 1× 10/100/1000 Mbps PoE++ RJ45 Ports
 3× 10/100/1000 Mbps PoE+ RJ45 Ports
 1× Gigabit SFP/RJ45 Combo Slot
 1× Gigabit SFP Slot
 Auto-Negotiation/Auto MDI/MDIX

 Fan Quantity : Fanless

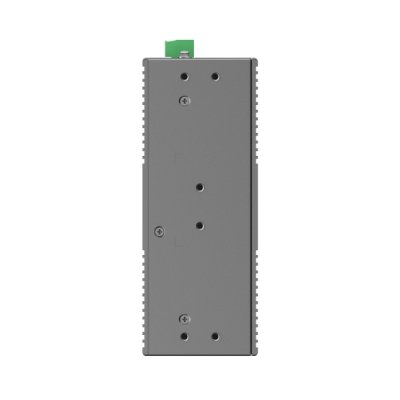

 Installation : DIN-rail mounting, Wall mounting

 PoE Ports (RJ45)
 Standard: 802.3af/at/bt compliant
 PoE++ Ports (802.3af/at/bt PoE): 1 Port, up to 60W per port
 PoE+ Ports (802.3af/at PoE): 3 Ports, up to 30W per port
 PoE Budget:
 - 60W (Input: 12V / 7.0A - 21V / 3.5A))
 - 120W (Input: 21V / 6.5A - 57V / 2.3A)

Performance
 Switching Capacity : 12 Gbps
 Packet Forwarding Rate : 8.93 Mpps
 MAC Address Table : 8K
 Packet Buffer Memory : 4 Mbit
 Jumbo Frame : 15 KB

Management Features
 Omada App : Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

 Centralized Management : Omada Cloud-Based Controller
                                     Omada Hardware Controller
                                     Omada Software Controller

 Cloud Access : Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
 Zero-Touch Provisioning : Yes. Requires the use of Omada Cloud-Based Controller

 Management Features
 Web-based GUI
 DHCP Client
 Cable Diagnostics
 Digital Diagnostic Monitoring (DDM)
 Automatic Device Discovery
 Batch Configuration
 Batch Firmware Upgrading
 Unified Configuration

Certification
 FCC, CE, RoHS

Power
 Power Supply

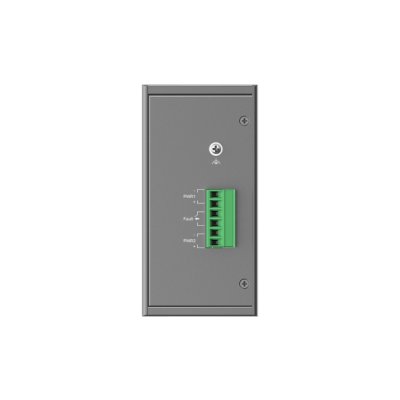

 12-57V 1+1 Redundant DC Power Input

Dimensions (W x D x H)
 6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm)

Warranty
 limited lifetime

Datasheet : Omada Industrial Easy Managed Switch
