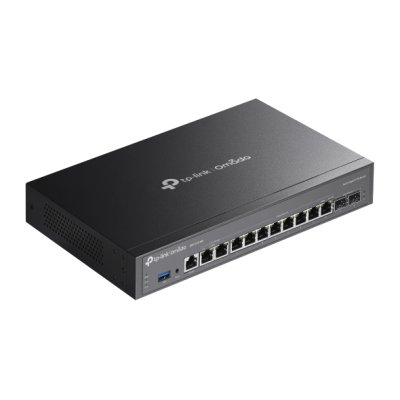

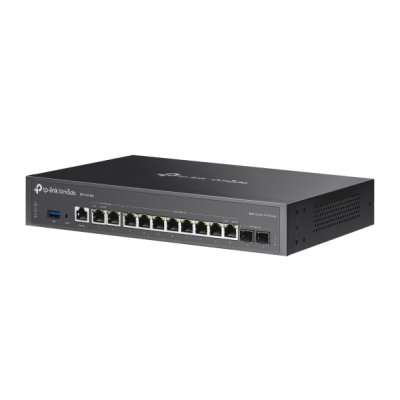

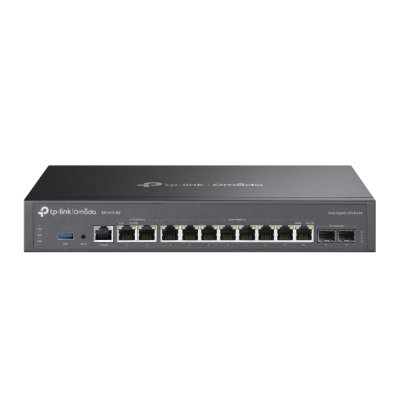

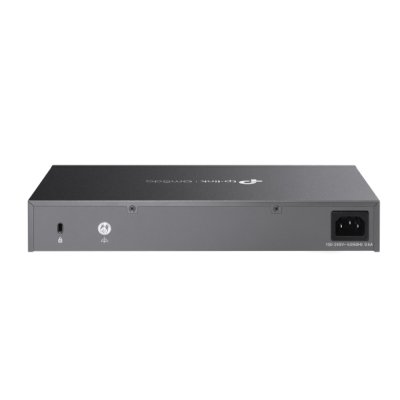

TP-Link (ER7412-M2) Omada Multi-Gigabit VPN Router

Brand
 TP-Link

Description
 TP-Link (ER7412-M2) Omada Multi-Gigabit VPN Router

SKU
 ER7412-M2

Hardware Features
 Standards and Protocols
 IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q
 TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP

 Proprietary Protocol
 TDMA Mode (with Pharos MAXtream enabled)

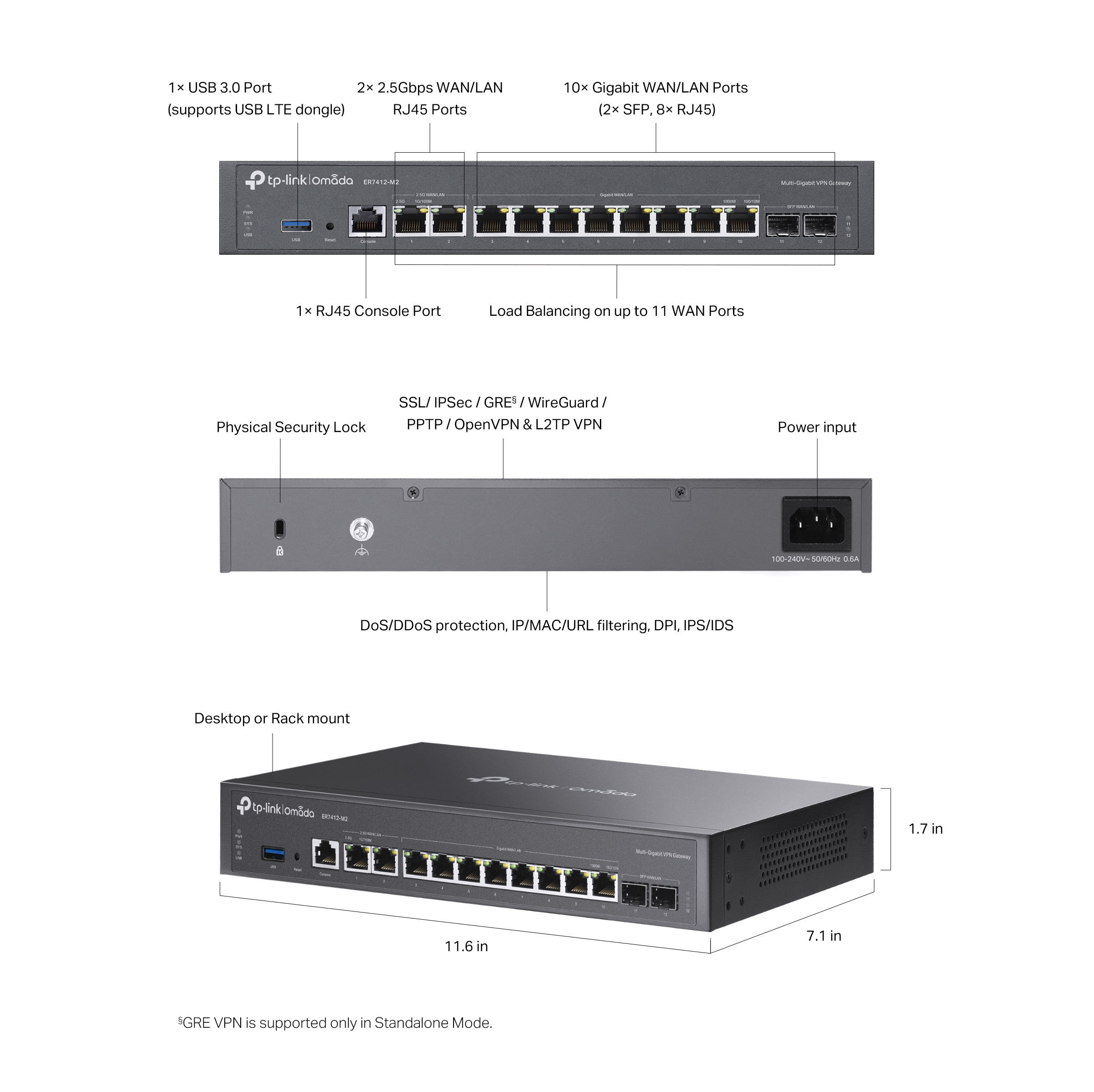

 Interface
 1× 2.5G RJ45 WAN/LAN Port
 1× 2.5G RJ45 WAN/LAN Port
 2× Gigabit SFP WAN/LAN Ports
 8× Gigabit RJ45 WAN/LAN Ports

 1× RJ45 Console Port
 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)

 Network Media
 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
 2500BASE-T: UTP category 5e, 6 cable (Max 100 m)

 Flash : 128MB NAND
 DRAM : 1 GB DDR4
 Protection : 4 kV surge protection
 Enclosure : Steel
 Mounting : Desktop
                Rackmountable

Performance
 IPS Throughput : 523Mbps
 DPI Throughput : 2.2Gbps
 GRE :  Unencrypted: 1153.0 Mbps, Encrypted: 559.2 Mbps
 WireGuard VPN : 771.6 Mbps
 Concurrent Session : 1,000,000
 New Sessions /Second : 7,000

Basic Functions
 WAN Connection Type
 Static IP/Dynamic IP
 PPPoE (supports MRU Configuration)
 PPTP
 L2TP
 Mobile Broadband: 4G/3G modem for backup via USB port

MAC Clone
 Modify WAN/LAN MAC Address

 DHCP
 DHCP Server
 DHCPv6 PD Server (only in Standalone Mode)
 DHCP Options Customization
 DHCP Address Reservation
 Multi-IP Interfaces
 Multi-Net DHCP

 IPv6 : StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
 VLAN : 802.1Q VLAN
 IPTV : IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Management Features
 Omada App : Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

 Centralized Management
 Omada Cloud-Based Controller
 Omada Hardware Controller
 Omada Software Controller

 Cloud Access : Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
 Service : Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

 Maintenance
 Web Management Interface
 Remote Management
 Export & Import Configuration
 SNMP v1/v2c/v3*
 Diagnostics (Ping & Traceroute)§
 NTP Synchronize§
 Port Mirroring
 CLI (only in Standalone Mode)
 Syslog Support

 Zero-Touch Provisioning : Yes. Requiring the use of Omada Cloud-Based Controller.

 Management Features
 Automatic Device Discovery*
 Batch Configuration*
 Batch Firmware Upgrading*
 Intelligent Network Monitoring*
 Abnormal Event Warnings*
 Unified Configuration*
 Reboot Schedule*

Certification
 CE, FCC

System Requirements
 Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11
 MAC OS, NetWare, UNIX or Linux

Dimensions (W x D x H)
 11.6×7.1×1.7 in (294×180×44 mm)

Warranty
 limited lifetime
