TP-Link (ER703WP-4G-Outdoor) Omada 4G+Cat6 AX3000 Outdoor/Indoor Gateway

Brand
 TP-Link

Description
 TP-Link (ER703WP-4G-Outdoor) Omada 4G+Cat6 AX3000 Outdoor/Indoor Gateway

SKU
 ER703WP-4G-Outdoor

4G
 LTE Band of EU:
 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/9 00/800/700/1450 MHz)
 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz)
 Carrier Aggregation:
 B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
 B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
 B5+B5/B7/B38/B40/B41
 B7+B7/B8/B20/B28/B32
 B8+B32/B38/B40/B41
 B20+B32/B38/B40
 B28+B32/B38/B40/B41
 B38+B38
 B40+B40
 B41+B41

 SIM Type
 1× Nano SIM Card

 Frequency
 Downlink: 300 Mbps;
 Uplink: 50 Mbps

Hardware Features

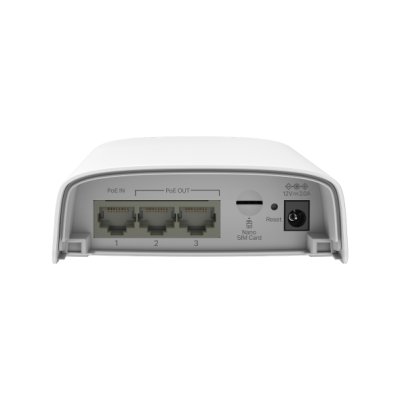

 Interface : 3 Gigabit WAN/LAN Ports
 Network Media : 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
                        100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
                        1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

 Wi-Fi Frequency & Signal Rate
 2.4 GHz: 574 Mbps
 5 GHz: 2402 Mbps (HE160)

 Flash : 256 MB NAND
 DRAM : 512 MB DDR4
 LED : 4G Signal, WLAN, WAN/LAN, SYS
 Antenna : Wi-Fi: Two 5GHz 4.0dBi & 2.4GHz 2.3 dBi dual-band build-in antennas
               LTE: Two 4.0dBi omnidirectional detachable antennas

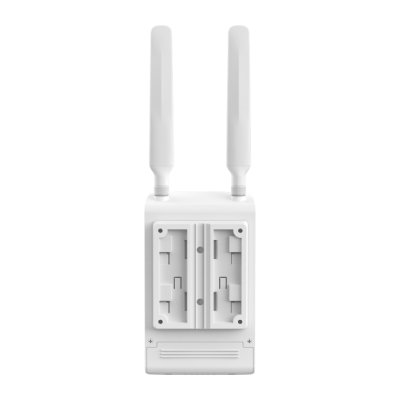

 Mounting : Pole/Wall-Mounting

Wireless Functions
 Advanced Features
 Seamless Roaming
 Mesh (with EAP that supports Mesh)
 OFDMA
 Beamforming
 MU-MIMO
 Rate Limit: Based on SSID/Client
 Airtime Fairness
 Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
 Multiple SSIDs: 16 in total (8 per radio)

 Guest Network : Support

Button
 Reset Button

Certification
 CE, FCC, RoHS

System Requirements
 Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11
 MAC OS, NetWare, UNIX or Linux

Power
 Power Supply
 802.3at/bt PoE; 12VDC / 2A Power Adapter

 Max. Power Consumption
 14.5W without PoE
 63W with PoE

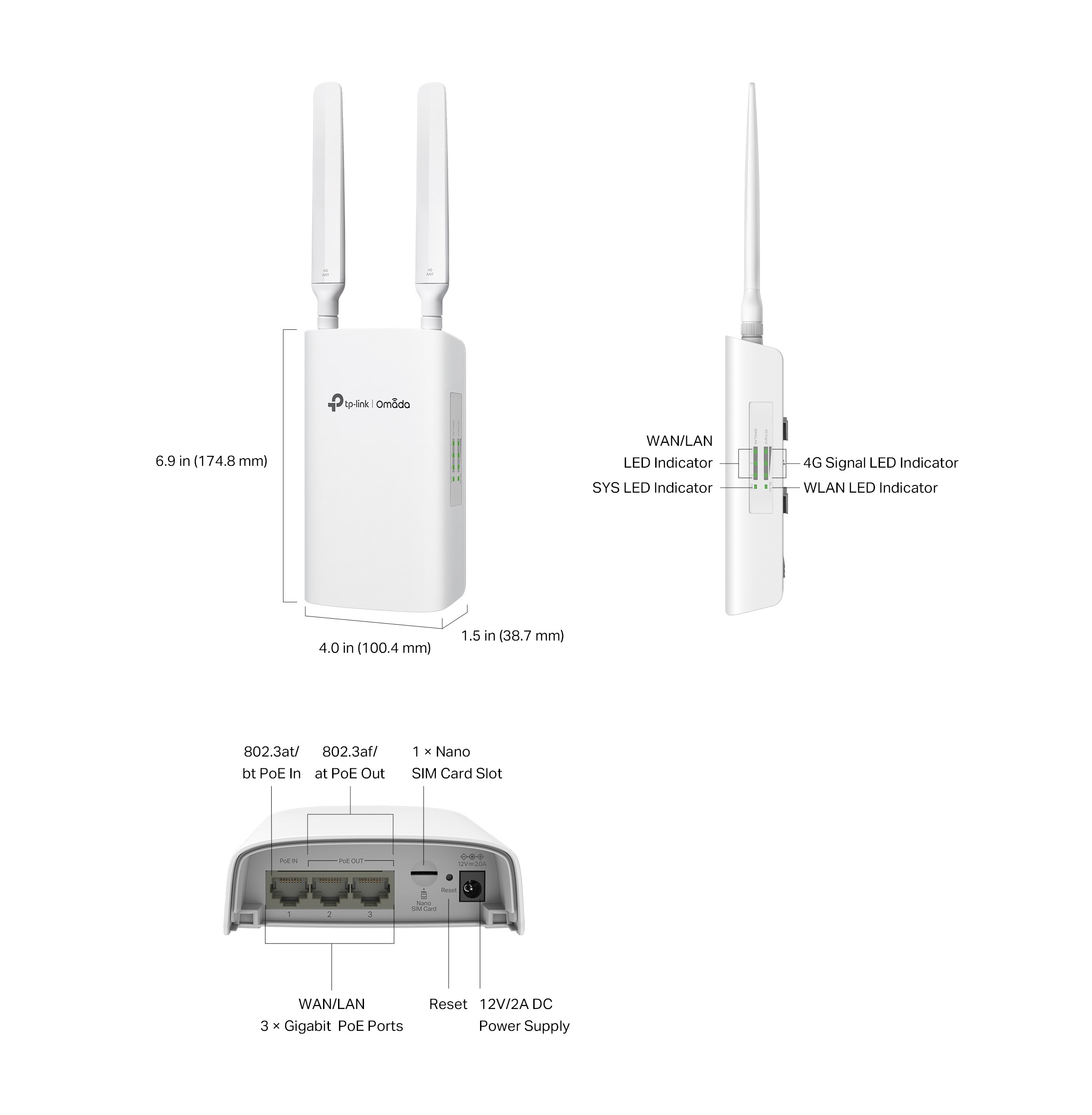

Dimensions ( W x D x H )
 4.0 × 1.5 i×6.9 in (100.4 × 38.7 × 174.8 mm) (Antenna dimensions are not included)

Warranty
 3 Years

Datasheet : 300Mbps Wireless N 4G LTE Outdoor Router
