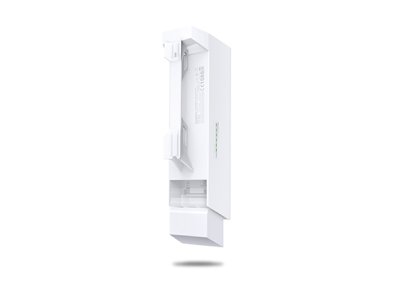

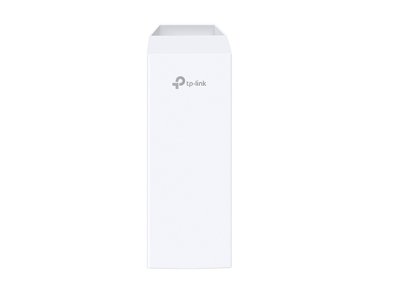

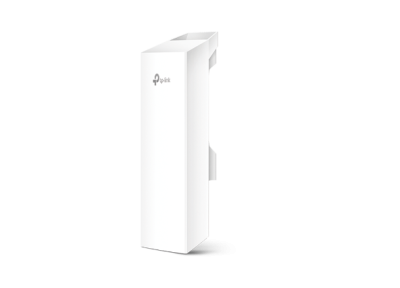

TP-Link (CPE210) 2.4 GHz 300 Mbps 9 dBi Outdoor CPE

Brand
 TP-Link

Description
 TP-Link (CPE210) 2.4 GHz 300 Mbps 9 dBi Outdoor CPE

SKU
 CPE210

Hardware Features
 Processor : Qualcomm Atheros 560MHz CPU, MIPS 74Kc
 Memory   : 64MB DDR2 RAM, 8MB Flash
 Interface : 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
               1 Grounding Terminal
               1 Reset Button
 Antenna : Built-in 9dBi 2x2 Dual-polarized Directional Antenna
               Beam Width: 65° (H-Plane) / 40° (E-Plane)
               Note: For more details, please refer to datasheet
 Protection : 15KV ESD Protection
                  6KV Lightning Protection
 Enclosure : Outdoor ASA stabilized plastic material
                 IPX5 waterproof Certification

Wireless Features
 Wireless Standards
 IEEE 802.11b/g/n (with Pharos MAXtream disabled)

 Proprietary Protocol
 TDMA Mode (with Pharos MAXtream enabled)

 Wireless Speeds
 Up to 300Mbps (40MHz,Dynamic)
 Up to 144.4Mbps (20MHz,Dynamic)
 Up to 72.2Mbps (10MHz,Dynamic)
 Up to 36.1Mbps (5MHz,Dynamic)

Frequency
 2.4~2.483GHz
 Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.

 Transmission Power
 25dBm/316mw (Adjustable power by 1dBm)
 Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

Poe Adapter Features
 Interfaces : 1 AC Jack with Earth Ground
                 1 10/100Mbps Shielded Ethernet Port (Power + Data)
                 1 10/100Mbps Shielded Ethernet Port (Data)
 Button : Remote Reset Button
 Power Status LEDs : Green
 Input : 100-240VAC, 50/60Hz
 Output : V2.0: 24VDC, 0.6A Max
             V3.0: 24VDC, 0.5A Max
             V3.20: 24VDC, 0.25A Max
             +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
 Certifications : CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

Certification
 CE, FCC, RoHS, IPX5

Dimensions (W x D x H)
 85.8 x 43.9 x 29.7 mm

Warranty
 3 Years

Datasheet : Pharos CPE Series CPE210

*ผิด ตก ยกเว้น Errors and omissions excepted (E&OE)*
