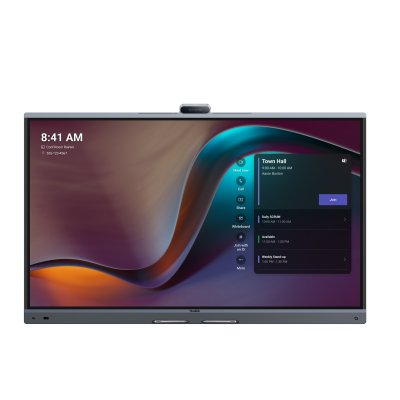

Yealink MeetingBoard 65 Pro for Small and Medium Rooms, Manager Office (MB65Pro-A02)

Brand
 Yealink

Description
 Yealink MeetingBoard 65 Pro for Small and Medium Rooms,  Manager Officepanel (MB65Pro-A02)

SKU
 MB65Pro-A02

65" All-in-one and Interactive Meeting Device

System Overview
 Operating System: Android 13.0
 Storage
 - Memory: 8GB
 - Flash: 64GB
 CPU: 4 cores at 2.2GHz + 4 cores at 2.0GHz
 AI Computing Power: 13.2T FLOPS

Display
 Size
 - MeetingBoard 65 Pro: 65 inch
 Anti-glare panel
 Resolution: 3840 x 2160
 Color Gamut: 72% NTSC/99% sRGB
 Color Depth: 1.07G (10bit)
 Contrast Ratio: 1200:1
 Brightness: 400 cd/㎡
 Refresh Rate: 60 Hz
 Viewing Angle: 178°(H)/178°(V)
 System wake-up: Motion sensor

Touch
 Touch Technology: Infrared
 Touch Height: 1.5 mm
 Touch Accuracy: ±1 mm
 Touch Points: 20 points
 Touch latency: 21 ms（Measured under yealink whiteboard）
 Four-level stylus

Camera
 Max Resolution: Built-in triple 50MP camera
 Image Sensor: Sony Sensor X3
 Viewing angle: Wide-angle DFOV 110° HFOV 98.2° VFOV 66°
 PTZ type: Electronic pan-tilt
 Zoom/Digital zoom: 16X hybrid zoom by triple-camera system
 Max resolution: 3840 x 2160
 Max frame rate: 60Hz
 Video output resolution: 3840 x 2160
 Autofocus: Supported
 Swappable optical zoom camera module:
 - MB-12X Pro:
 - 8MP, Sony image sensor
 - 12x optical zoom
 - Lens angle: DFOV 90°, HFOV 80°, VFOV 49°
 - Horizontal rotation: ±100°
 - Vertical rotation: 0°/-90°
 AI Smart Framing:
 - Auto framing
 - Speaker tracking
 - Picture-in-picture (PIP)
 - IntelliFocus
 - Video fence

Speakers
 Speakers:
 - Stereo Speakers
 Frequency response: 90~20KHz
 Sensitivity: 87±3 dB SPL@0.5m, 1W
 Sampling rate: 48KHz
 Expansion output: Supports RCA output
 THD (Total Harmonic Distortion): at 20W, 1KHz, <5%
 Rated impedance: tweeter-4ohm，full-range speaker-8ohm
 Rated power: 30W
 Max power: 36W

Microphones
 Built-in 16 MEMS microphone array
 Pickup distance: 12 meters full-duplex
 Signal-to-noise ratio: 70dB@1KHz
 Max sound pressure level: 130dB SPL
 Equivalent noise level: 24dB SPL
 Dynamic range: 24-130dB SPL
 Sensitivity: -38±1dBV/Pa
 Frequency response: 20Hz~20KHz
 Sampling rate: 48KHz
 Bit depth: 24-bit
 Expansion input: supports RCA input

Video Resolution
 Lens resolution: supports up to 4K30fps
 Content sharing: supports up to 4K60fps (HDMI In) locally, and up to 4K15fps in meetings

Network
 Wi-Fi 6
 - 2.4G & 5G dual-band, 802.11a/b/g/n/ac/ax
 - 2x2 MIMO
 Bluetooth 5.1
 TCP/IP (IPv4/IPv6), DHCP/Static IP
 HTTPS secure web access

Power Supply
 Power Consumption
 MeetingBoard 65 Pro
 - Max: 243W
 - Typical: 141W
 Power adapter: 100-240V~50/60Hz
 USB output: 5V~0.5A

Dimensions and weight
 Packaging dimensions (W × D × H) 1660 x 220 x 1045 mm
 Bare device dimensions(W × D × H) 1484 x 91 x 955 mm
 With stand dimensions(W × D × H) 1484 x 795 x 1887 mm

VESA hole specs
 600 x 400 mm

Weight
 Gross weight 50 kg (110.2 lbs)
 Net weight 40 kg (88.2 lbs)

Warranty
 24 months
