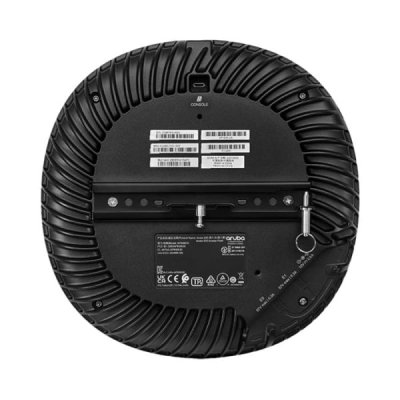

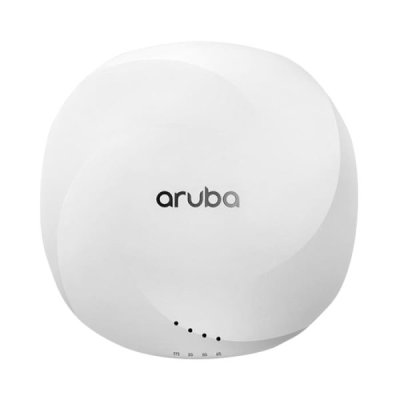

Aruba AP-635 Access Point (R7J27A)

Brand
 Aruba

Description
 Aruba AP-635 (RW) Campus Access Point

SKU
 R7J27A

Model
 HPE Aruba Networking AP-635 (RW) Tri-radio 2x2:2 802.11ax Wi-Fi 6E Internal Antennas Campus Access Point

Interface
 E0, E1: Two Ethernet wired network ports (RJ-45)
 Dual-radio, 2.4GHz and 5GHz (dual concurrent) 802.11ax 2×2 MIMO
 - Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX
 - 2.5Gbps speed complies with NBase-T and 802.3bz specifications
 - POE-PD: 48Vdc (nominal) 802.3at/bt POE (class 4 or higher)
 - 802.3az Energy Efficient Ethernet (EEE)
 - Link aggregation (LACP) support between both network ports for redundancy and increased capacity
 DC power interface: 12 Vdc (nominal, +/ 5%), accepts 2.1 mm/5.5 mm center-positive circular plug with 9.5 mm length
 USB 2.0 host interface (Type A connector)
 Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio

Wi-Fi Radio Specifications
 2×2 MIMO with peak antenna gain of 4.6dBi in 2.4GHz, 7.0dBi in 5GHz and 6.3dBi in 6GHz

Wi-Fi Antennas
 Internal antenna

Power sources
 Maximum (worst-case) power consumption (without / with a USB device attached):
 DC powered: 20.7W / 26.4W
 POE powered: 23.8W / 29.4W
 This assumes that up to 5W is supplied to the attached USB device
 Maximum (worst-case) power consumption in idle mode: 8.7W / 14.2W (DC) or 11.7W / 17.2W (POE)
 Maximum (worst-case) power consumption in deep-sleep mode: 1.1W (DC) or 1.9W (POE)

Mounting
 Optional

Basic dimension W x H x L (cm)
 22 x 22 x 5

Weight (kg.)
 1.3

Warranty
 Limited Lifetime
