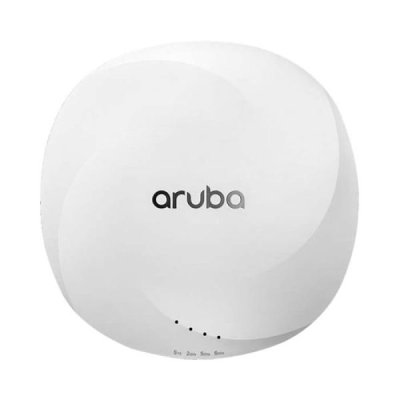

Aruba AP-615 Access Point (R7J49A)

Brand
 Aruba

Description
 Aruba AP-615 (RW) Campus Access Point

SKU
 R7J49A

Model
 HPE Aruba Networking AP-615 (RW) Dual-radio Tri-band 2x2:2 802.11ax Wi-Fi 6E Internal Antennas Campus Access Point

Interface
 RJ-45 :Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX, 2.5Gbps speed complies with NBase-T and 802.3bz specifications, POE-PD: 48Vdc (nominal) 802.3af/at POE (class 3 or higher), 802.3az Energy Efficient Ethernet (EEE)
 DC power interface: 12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length
 DC power interface: 12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length
 USB 2.0 host interface (Type A connector) Capable of sourcing up to 1A / 5W to an attached device
 Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio

Wi-Fi Radio Specifications
 Dual-radio, 2.4GHz and 5GHz (dual concurrent) 802.11ax 2×2 MIMO

Wi-Fi Antennas
 Integrated downtilt omni-directional antennas for 2×2 MIMO with peak antenna gain of 2.8dBi in 2.4GHz, 4.5dBi in 5GHz and 4.5dBi in 6GHz

Power sources
 Maximum (worst-case) power consumption (without / with a USB device attached):
 DC powered: 12.5W/18.2W
 POE powered: 14.7W/20.9W
 This assumes that up to 5W is supplied to the attached USB device
 Maximum (worst-case) power consumption in idle mode: 5.6W/11.0W (DC) or 6.9W/12.9W (POE)

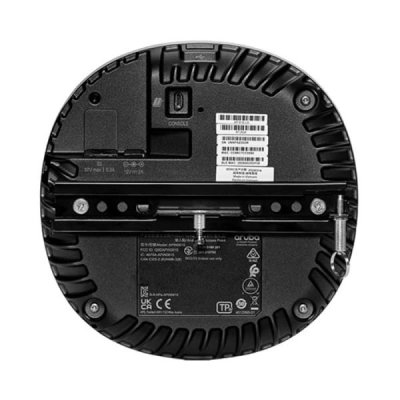

Mounting
 A mounting bracket has been pre-installed on the back of the AP.

Basic dimension W x H x L (cm)
 20 x 20 x 5

Weight (kg.)
 0.52

Warranty
 Limited Lifetime
