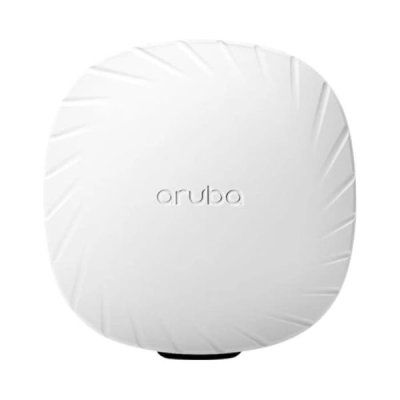

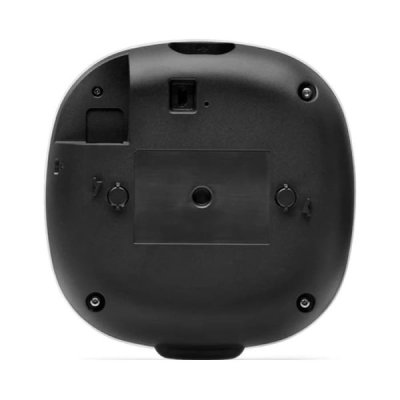

Aruba AP-503 Campus Access Point (R8M98A)

Brand
 Aruba

Description
 Aruba AP-503 (RW) Campus Access Point

SKU
 R8M98A

Model
 Aruba Access Point-503 (RW) Dual Radio 2×2:2 802.11ax Wi-Fi 6 Campus Access Point

Interface
 RJ-45 : Auto-sensing link speed (10/100/1000BASE-T) and MDI/MDX, POE-PD: 48Vdc (nominal) 802.3af POE (class 3 or higher), 802.3az Energy Efficient Ethernet (EEE) USB 2.0 host interface (Type A connector) Capable of sourcing up to 100mA / 500mW to an attached device

Wi-Fi Radio Specifications
 Dual-radio, 2.4GHz and 5GHz (dual concurrent) 802.11ax 2×2 MIMO

Wi-Fi Antennas
 Integrated downtilt omni-directional antennas for 2×2 MIMO with peak antenna gain of 1.7dBi in 2.4GHz and 4.8dBi in 5GHz.

Power sources and consumption
 Maximum (worst-case) power consumption: 10.9W

Mounting
 A generic mount bracket to attach the AP-503 to suspended ceiling rails ships with the AP.

Basic dimension W x H x L (cm)
 18.3 x 19.3 x 6.3

Weight (kg.)
 0.5

Warranty
 Limited Lifetime
