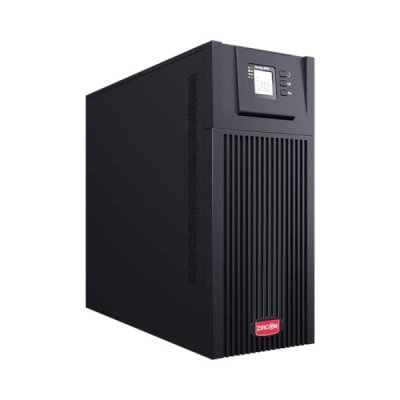

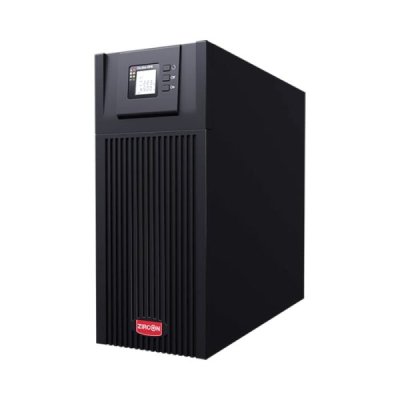

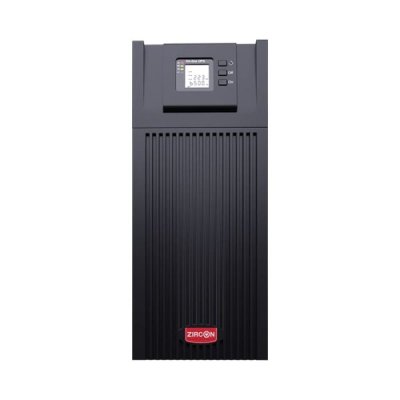

Zircon UPS True Online ZC-MP 1:1p/ 10kVA/9kW/ Tower type (ZC-MP-2Y_10kVA/9kW)

Brand
 Zircon

Description
 Zircon True Online UPS :ZC-MP 1:1p/ 10kVA/9kW/ Tower type

SKU
 ZC-MP-2Y_10kVA/9kW

Specifications
Rating
VA                                         10000VA
WATT                                     9000W

Input
Input mode                              3phase 4 wires and ground
Power Factor                            0.99
Rated voltage                           380/400/415VAC (settable)+/-25%
Rated frequency                       50Hz/60Hz (settable)+/-10%
Bypass Voltage Range               Max:+5%, +10% or +15%, default +5%
Bypass Voltage Range               Min:-20%, 30% or -45%, default -45%
THDI                                       5%(100% non-linear load)

Output
Output TYPE                            Single phase & Ground
Output Precition                       1.0%
Voltage distortion (THD)             Less than 2% at 100% linear lode
Voltage distortion (THD)             Less than 5% at 100% non- linear lode
Rated voltage                           220/230/240VAC+/-2%
Rating frequency                      50Hz/60Hz+/-0.1%
Peak value factor                      3:1
 Efciency at normal                    90%

Battery
Battery Number                        16/18/20/20pcs (settable)
Charge model                          Boost charge or oat charge auto switch
Charge Time                            Boost charge up to 20Hr(Max)
Charge Current (A)                    1A (S), 6A (H)

Transfer Time
0ms

Display
Height                                    655
Wight                                     255
Depth                                     590

Weight (kg)
 40kg(H)

Warranty
 2 Years
