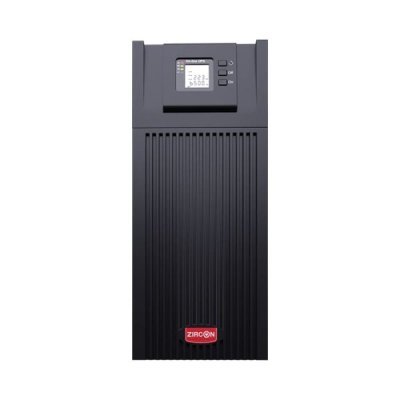

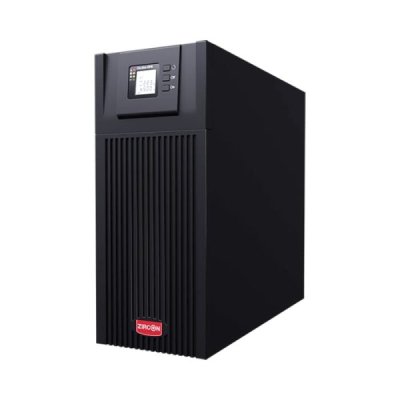

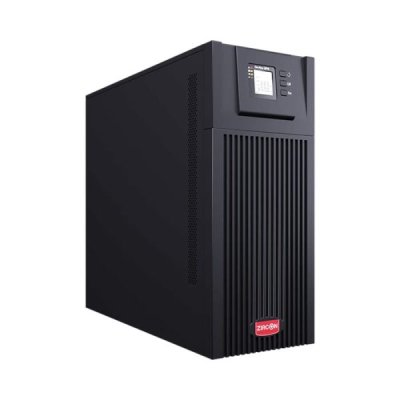

Zircon UPS ZC-MP 1:1p/ 6kVA/5.4kW/ Tower type (ZC-MP-2Y_6kVA/5.4kW)

Brand
 Zircon

Description
 Zircon True Online UPS : ZC-MP 1:1p/ 6kVA/5.4kW/ Tower type

SKU
 ZC-MP-2Y_6kVA/5.4kW

Specifications
Rating
VA                                         6000VA
WATT                                     5400kW

Input
Phase                                     Single Phase & Ground
Rated Voltage                          220/230VAC +/- 25%
Voltage Range                         140-290V*
Frequency Range                      40Hz-70Hz (settable) +/- 0.1%
Power Factor                            >0.99
Current THDi                            5% at 100% non-linear load
Bypass Voltage Range               Max, voltage; +5% (optional +5%, +10%, +25%)
                                             Min. voltage:-45% (oplional -20%,-30%, -45%)
                                             Frequency protection range: +/-10%
ECO Range                              same as the bypass
Hamonic Current                       <5% ( 100% non-linear load )

Output
Phase                                     Single Phase & Ground
Rated Voltage                          220/230VAC
Power Factor                            0.9
Voltage Regulation                    +/- 1%
Frequency - Utility Mode            1%,2%,4%,5%,10% of the rated frequency (optional)
               - Battery Mode          50Hz +/- 0.1% Hz
Crest Factor                             3:1
THD                                        < 2% with Linear Load
                                             < 5% with non  Linear Load
Wave Form                              Pure Sine Wave

Efficiency
AC Mode ( Full Load )                Up to 90%
​Battery  Mode ( Full Load )         >88%
ECO Mode ( Full Load )              >94%

Battery
Voltage                                   192/216/240 Vdc
Capacity (Standard Unit)             12V/9Ah
Back up Time                           15-30 min (Depend on load), Estimated remaining time display on the LCD
Recharge Time to 90%               4-6 Hours
Charging current -Standard        1A (S), 6A (H)
 Battery Number                       16/18/20 pcs (Settable)
Battery Socket                         Anderson Like PowerPole Modular Connectors

Transfer Time
Utility to Battery; 0ms, Utility to Bypass <4ms

ALARM
Audible & Visual                       Line Failure, Battery Low, Overload, System Fault

Display
Status LED & LCD                      Load/Battery/Input/Output/Operating Mode information
Reading on the LCD                  Load/Battery/Input/Output/Operating Mode information

Physical
Dimension(WxHxD) mm              250 x 655 x 590
Weight (kg)                              70kg
Input Connection                      hardwired
Output Connection                   hardwired
External Battery Connection       Anderson like PowerPole Modular connectors

Communication Interface
Smart RS232/USB Port                Support Windows Family, Linux, FreeDSB, etc.
Communication slot                   SNMP Card (independent to RS232)
RJ 45                                      Built-in Power Surge, Lightning Protection Device

Environment
Operating Temperature              0 °C - 40 ° C
Storage Temperature                 -25  °C - +55 °C
Humidity                                 0-90% non-condensing
Attitude                                  <1500 m. (derating while > 1500m)
Noise                                      <50 dB (at 1 meter)

Standard
Safty                                       CE

Warranty
 2 Years

*ผิด ตก ยกเว้น Errors and omissions excepted (E&OE)*
