TP-Link TL-SG1210MPE - 10-Port Gigabit Easy Smart Switch with 8-Port PoE+ (TL-SG1210MPE)

Brand
 TP-Link

Description

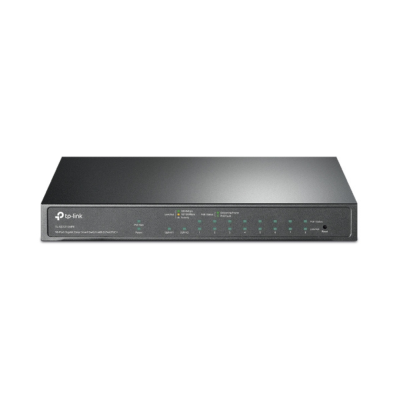

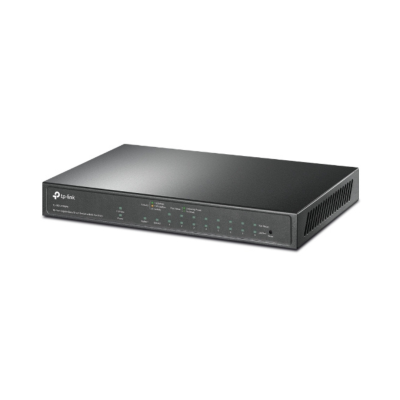

 TP-Link TL-SG1210MPE - 10-Port Gigabit Easy Smart Switch with 8-Port PoE+

SKU
 TL-SG1210MPE

Model
 TL-SG1210MPE

Hardware Features
Standards and Protocols
 IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
 IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z

Interface
 9× 10/100/1000 Mbps RJ45 Ports
 1× 1000 Mbps Combo SFP/RJ45 Port
 AUTO Negotiation/AUTO MDI/MDIX

 Network Media
 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
 EIA/TIA-568 100Ω STP (maximum 100m)
 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
 EIA/TIA-568 100Ω STP (maximum 100m)
 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
 EIA/TIA-568 100Ω STP (maximum 100m)

 Fan Quantity
 Fanless

Power Supply
 External Power Adapter (Output: 53.5 VDC/2.43 A)

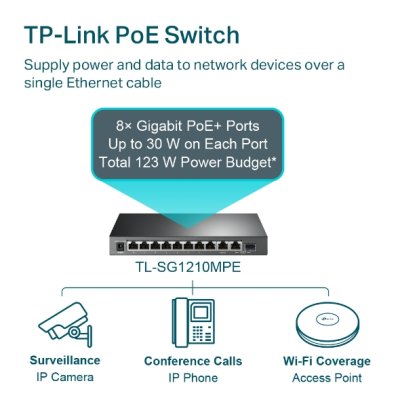

PoE Ports (RJ45)
 Standard: 802.3 af/at compliant
 PoE Ports: Port 1- Port 8
 PoE Power Budget: 123 W

Packet Forwarding Rate
 14.88 Mpps

Mac Address Table
 4 K

Jumbo Frame
 16 KB

Switching Capacity
 20 Gbps

Certification
 FCC, CE, RoHS

Max Power Consumption
 7.66 W (220V / 50Hz with no PD connected)
 141.54 W (220V / 50Hz with 123 W PD connected)

Max Heat Dissipation
 26.12 BTU/h (220V / 50Hz with no PD connected)
 482.65 BTU/h (220V / 50Hz with 123 W PD connected)

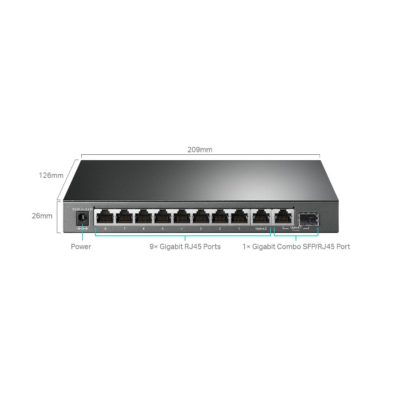

Dimensions ( W x D x H )
 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

Warranty
 Limited Lifetime

Daasheet : 10-Port Gigabit Easy Smart Switch with 8-Port PoE+
