Blackmagic Design ATEM Mini Extreme ISO

Brand
 Blackmagic

Description
 Blackmagic Design ATEM Mini Extreme ISO

SKU
 AtemMiniExtremeISO

  ATEM Mini Extreme ISO มีฟีเจอร์ครบทุกอย่างของ ATEM Mini Extreme และยังสามารถ บันทึกวิดีโอ H.264 แยก 9 สตรีมแบบเรียลไทม์ ทำให้สามารถจับภาพ ทั้ง 8 สัญญาณขาเข้าแบบ Clean Feed รวมถึง วิดีโอโปรแกรม ได้ด้วย นอกจากนี้ยังมีการ บันทึกไฟล์โปรเจกต์ของ DaVinci Resolve ทำให้สามารถสร้างโปรเจกต์ขึ้นใหม่และแก้ไขภายหลังได้

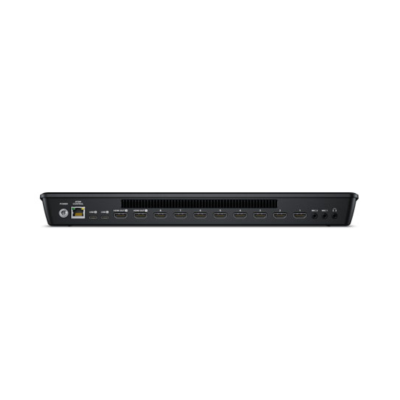

Connections
 Total Video Inputs
 8

 Total Outputs
 4

 Total Aux Outputs
 2

 Total Audio Inputs
 2 x 3.5mm stereo mini jack.

Total Audio Outputs
 1 x 3.5mm stereo mini jack.

 Timecode Connection
 None

 HDMI Video Inputs
 8 x HDMI type A, 10-bit HD switchable.
 2 channel embedded audio.

 Video Input Re-Sync
 On all 8 HDMI inputs.

 Frame Rate and Format Converters
 On all 8 HDMI inputs.

 HDMI Program Outputs
 2

 Ethernet
 Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.

 Computer Interface
 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.

Standards
 HD Video Input Standards
 720p50, 720p59.94, 720p60
 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60

 HD Video Output Standards
 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

 Video Streaming Standards
 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

 Ultra HD Video Standards
 None

 Video Sampling
 4:2:2 YUV

 Color Precision
 10-bit

 Color Space
 Rec 709

 HDMI Input Resolutions from Computers
 1280 x 720p 50Hz, 59.94Hz and 60Hz
 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz
 1920 x 1080i 50, 59.94Hz and 60Hz

 Colorspace Conversion
 Hardware based real time.

Audio
 Audio Mixer
 11 input x 2 channel mixer.
 Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
 Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.

 Analog Input
 Unbalanced stereo

 Analog Input Delay
 Up to 8 frames

 Input Impedance
 1.8k

 Max Input Level
 +6dBV

 Mic Plug In Power
 Available on both 3.5mm mini jack connections.

Streaming
 Direct Streaming
 ATEM Mini Pro supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USBC.

Recording
 Direct Recording Video and Audio
 USB-C 3.1 Gen 1 expansion port can record directly to external media.

 Video Recording
  8 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.
 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.

 Audio Recording
 10 x 2 channel audio inputs recorded as separate 24bit 48KHz .wav files. Including 2 x analog 2 channel audio inputs and 8 x HDMI 2 channel embedded audio inputs.

 Switching
 Program switching recorded as a DaVinci Resolve project .drp file.

 Media Format
 Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.

Control

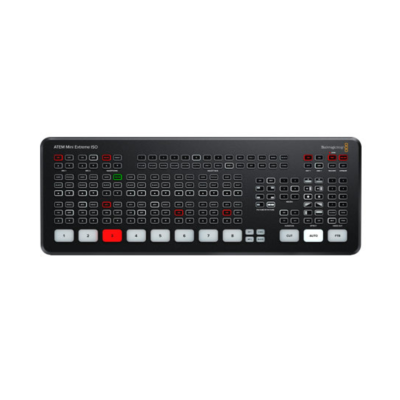

 Control Panel
 Built in control panel.
 Supports optional hardware panel.
 ATEM Software Control Panel for Mac and Windows included for free.

 Control Panel Compatibility
 Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel.
 ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.

 Control Panel Connection
 Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro also supports direct USB-C connection. Ethernet or USB-C used for updating the software.

Software
 Software Updates
 Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.

 Configuration
 Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.

Operating Systems
 Mac 14.0 Sonoma, Mac 15.0 Sequoia or later.
 Windows 10 and 11.

Power Requirements
 Power Supply
 1 x External 12V power supply.

 Power Usage
 36W

Warranty
 1 Year carry in
