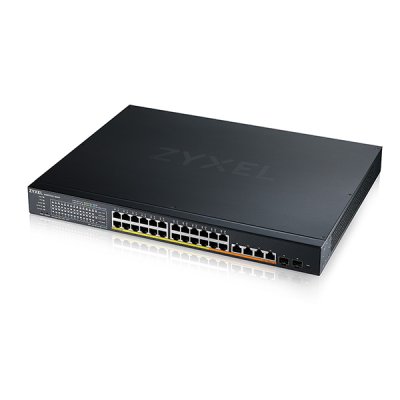

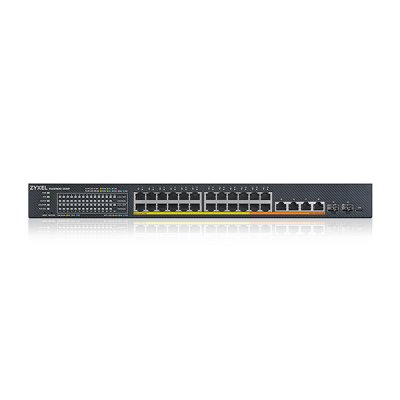

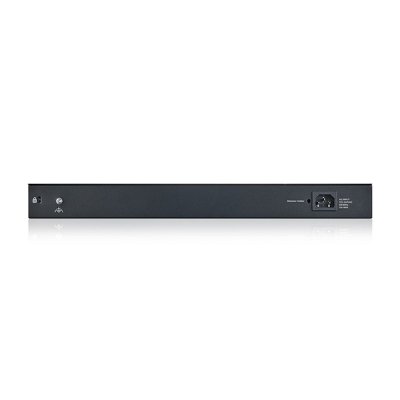

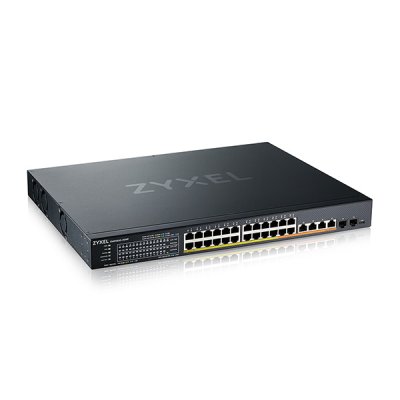

Zyxel XMG1930 Series 24-port L2 PoE Switch 22xPoE+/8xPoE++ (XMG1930-30HP)

Brand
 Zyxel

Description
 Zyxel XMG1930 Series 24-port L2 PoE Switch 22xPoE+/8xPoE++

SKU
 XMG1930-30HP

Product name
 24-port 2.5G Multi-Gig Lite-L3 Smart Managed PoE++/PoE+ Switch with 6 10G Uplink


Switch class
 Smart Managed

Standard
 IEEE 802.3z 1000BASE-X*
 IEEE 802.3ab 1000BASE-T Ethernet*
 IEEE 802.3an 10G BASE-T Ethernet*
 IEEE 802.3bz 2.5GBASE-T/5GBASE-T*
 IEEE 802.3ae 10 Gbit/s Ethernet over fiber*
 IEEE 802.3af PoE*
 IEEE 802.3at PoE plus*
 IEEE 802.3bt (60 W) PoE over 4 pair*
 IEEE 802.3x flow control
 IEEE 802.3ad LACP aggregation*
 IEEE 802.1D Spanning Tree Protocol (STP)*
 IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)*
 IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
 IEEE 802.1p Class of Service (CoS) prioritization*
 IEEE 802.1X port authentication*

Performance
 Switching capacity : 240 Gbps
 Forwarding rate (Mpps) : 178.5
 Packet buffer (byte) : 2 MB
 MAC address table : 16 K
 Jumbo frame (byte) : 12 K
 L3 forwarding table : 512 IPv4 entries; Max. 512 IPv6 entries
 Routing table : 32
 VLAN routing : Yes
 IP interface (IPv4/IPv6) : 32/32
 Flash/RAM : 32 MB/256 MB

PoE
 PoE ports : 28
 Total PoE budget (watts) : 700
 IEEE 802.3bt (PoE+) : Port 1 - 20
 IEEE 802.3bt (PoE++, 60 W) : 100M/1G/2.5G: Port 21 24, 1G/2.5G/5G/10G: Port 25 - 28

Certifications
 Safety : LVD, BSMI Safety
 EMC : FCC Part 15 (Class A), CE EMC (Class A), BSMI EMC
 RoHS

Power Supply
 Input : 100 - 240 V AC, 50/60 Hz
 Max. power consumption (watts) : 864.1
 Min. power consumption (watts) : 47.8

Dimension (W x D x H) (mm/in.)
 441 x 330 x 44/17.36 x 12.99 x 1.73

Weight (kg/lb.)
 4.85/10.69

Warranty
 3 Years

Datasheet : Zyxel XMG1930 Series
