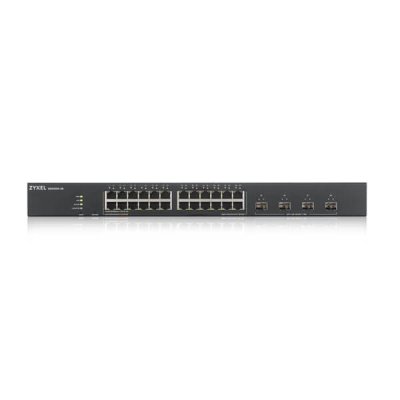

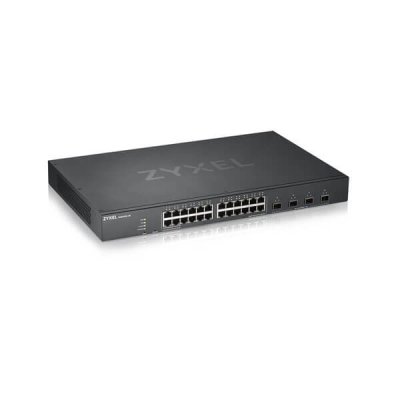

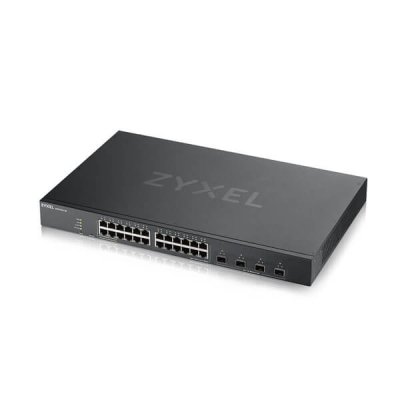

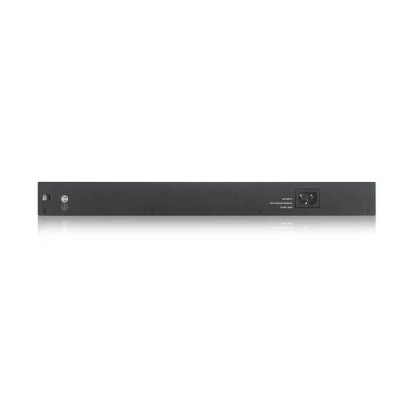

Zyxel XGS1930 Series 24-port GbE Smart Managed Switch with 4 SFP+ Uplink (XGS1930-28)

Brand
 Zyxel

Description
 Zyxel XGS1930 Series 24-port GbE Smart Managed Switch with 4 SFP+ Uplink

SKU
 XGS1930-28

Product name
 24-port GbE Lite-L3 Smart Managed Switch with 4 10G Uplink

Switch class
 Smart Managed

Standard
 IEEE 802.3 10BASE-T Ethernet*
 IEEE 802.3u 100BASE-TX Ethernet*
 IEEE 802.3ab 1000BASE-T Ethernet*
 IEEE 802.3z 1000BASE-X*
 IEEE 802.3ae 10-Gigabit Ethernet Over Fiber*
 IEEE 802.3af PoE*
 IEEE 802.3at PoE Plus*
 IEEE 802.3az EEE*
 IEEE 802.3x flow control* (support on Nebula Cloud mode from ZyNOS 5.00)l
 IEEE 802.3ad LACP aggregation*
 IEEE 802.1D Spanning Tree Protocol (STP)*
 IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)*
 IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
 IEEE 802.1p Class of Service (CoS) prioritization*
 IEEE 802.1X port authentication*

Performance
 Switching capacity : 120 Gbps
 Forwarding rate (Mpps) : 95.2
 Packet buffer (byte) : 1.5 MB
 MAC address table : 16 K
 Jumbo frame (byte) : 9K
 L3 forwarding table : Max. 512 IPv4 entries; Max. 512 IPv6 entries
 Routing table : 32
 VLAN routing : Yes
 IP interface (IPv4/IPv6) : 32/32
 Flash/RAM : 32MB/512MB

PoE
 PoE ports : -
 Total PoE budget (watts) : -
 High power PoE 802.3at : -

Certifications
 Safety : LVD, BSMI
 EMC : FCC Part 15 (Class A), CE EMC (Class A), BSMI EMC
 RoHS : Level A

Power Supply
 Input : 100 - 240 V AC,50/60 Hz
 Min. power consumption (watts) Without any port connection : 12.4
 Max. power consumption (watts) All ports full load without PoE : 24.6
 Max. power consumption (watts) All ports full load with PoE : -

Dimension (W x D x H) (mm/in.)
 441 x 270 x 44/17.36 x 10.63 x 1.73

Weight (kg/lb.)
 3.4/7.5

Warranty
 3 Years

Datasheet : Zyxel XGS1930 Series
