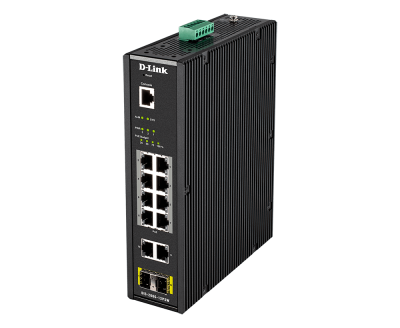

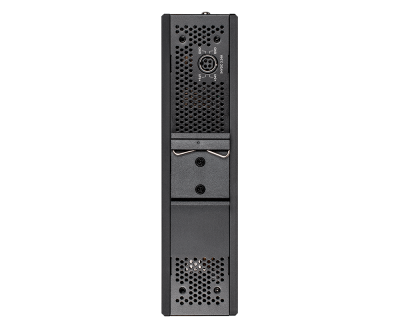

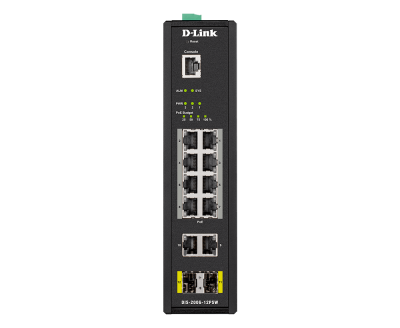

D-Link DIS-200G-12PSW, 12-port Gigabit Industrial Smart Managed Switch

Brand
 D-Link

Description
 D-Link DIS-200G-12PSW, 12-port Gigabit Industrial Smart Managed Switch

SKU
 DIS-200G-12PSW

Hardware Version
 A1

Number of Ports
 8 x 10/100/1000BASE-T PoE ports
 2 x 10/100/1000BASE-T ports
 2 x SFP ports
 1 x RJ-45 Console port

Port Functions
 IEEE 802.3 for Ethernet
 IEEE 802.3u for Fast Ethernet
 IEEE 802.3ab for Gigabit Ethernet
 IEEE 802.3z for Gigabit fiber
 IEEE 802.3af/at Power over Ethernet (DIS-200G-12PS/DIS-200G-12PSW)
 IEEE 802.3az-compliant

Media Interface Exchange
 Auto-MDI/MDIX adjustment for all twisted pair ports

Performance
 Switching Capacity : 24 Gbps
 Maximum Forwarding Rate : 17.85 Mpps
 MAC Address Table Size : Up to 8K entries
 Transmission Method : Store-and-forward

PoE
 PoE Standards : IEEE 802.3af/at
 PoE Capable Ports : Ports 1 to 8
 PoE Power Budget : Max. 240 W

MTBF
 156,452 hours

Certifications
 CE, FCC, BSMI

Power Input

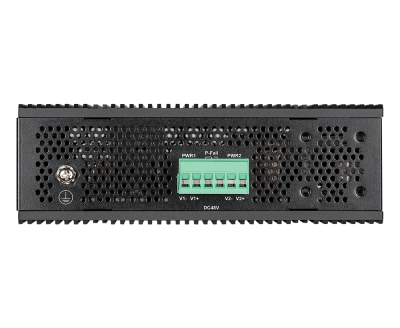

 48 to 54 V DC terminal block dual input
 54 V DC 4-pin DIN single power input

Power Consumptions
 Maximum: 260 W (PoE on)
 Maximum: 10.8 W (PoE off)
 Standby: 7.02 W

Dimensions (L x W x H)
 210 x 171.2 x 53 mm (8.27 x 6.74 x 2.09 in)

Weight
 1.76 kg (3.88 lbs)

Warranty
 5 Years

Datasheet : DIS-200G Series Layer 2 Gigabit Industrial Smart Managed Switches
