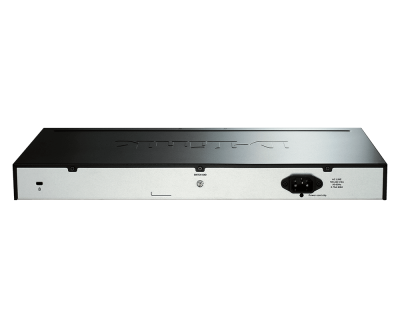

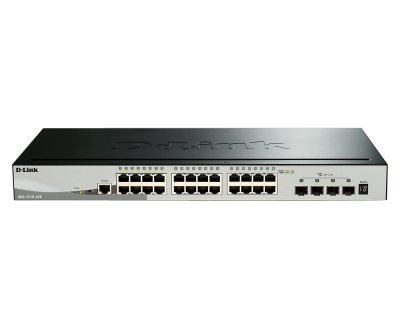

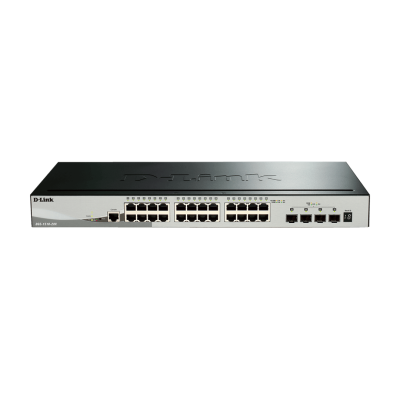

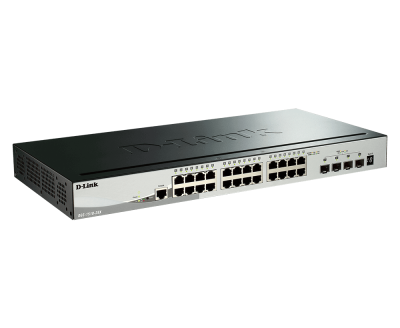

D-Link DGS-1510-28X, 28-port Gigabit Layer 3 Lite Stackable Smart Managed Switch with 4-port 10G Uplinks

Brand
 D-Link

Description
 D-Link DGS-1510-28X, 28-port Gigabit Layer 3 Lite Stackable Smart Managed Switch with 4-port 10G Uplinks

SKU
 DGS-1510-28X

Hardware Version
 A1

Size
 19 standard rack width, 1U height

Interfaces
 24 x 10/100/1000 Mbps
 4 x 10G SFP+

Port Standards & Functions
 IEEE 802.3 10BASE-T Ethernet
 IEEE 802.3u 100BASE-TX Fast Ethernet
 IEEE 802.3ab 1000BASE-T Gigabit Ethernet
 IEEE 802.3ae 10 Gigabit Ethernet
 IEEE 802.3x Flow Control for full-duplex mode, auto-negotiation

Network Cables
 UTP Cat. 5, Cat. 5e (100 m max.)
 EIA/TIA-568 100-ohm STP (100 m max.)

Duplex Mode
 Full/half-duplex for 10/100 Mbps and full-duplex for 1000 Mbps speed

Media Interface Exchange
 Auto or configurable MDI/MDIX

Switching Fabric
 128 Gbps

Transmission Method
 Store-and-forward

MAC Address Table
 Up to 16,384 entries per device

MAC Address Update
 Up to 512 static MAC entries
 Enable/disable auto-learning of MAC addresses

Maximum Packet Forwarding Rate
 95.24 Mpps

Packet Buffer Memory
 1.5 MB per device

DRAM Size
 256 MB

Flash Memory
 32 MB

PoE
 PoE Standards :  IEEE 802.3af/at
 PoE-Capable Ports : Ports 1 to 24: Up to 30 W
 PoE Power Budget : PoE Power Budget

Operating Temperature
 -5 to 50 ˚C (23 to 122 ˚F)

Certifications
 CE, FCC, C-Tick, VCCI, BSMI, CCC, IPv6
 Ready Logo Phase 2

Max Power Consumption
 22.3 W

Standby Power Consumption
 15.2 W

MTBF
 516,593 hours

Physical & Environment
 AC Input : 100 to 240 VAC 50/60 Hz internal universal power supply

Dimensions (L x W x H)
 440 x 210 x 44 mm (17.36 x 8.26 x 1.73 in)

Weight
 2.00 kg (4.41 lbs)

Warranty
 5 Years

Datasheet : DGS-1510 Series Gigabit Stackable Smart Managed Switches with 10G Uplinks
