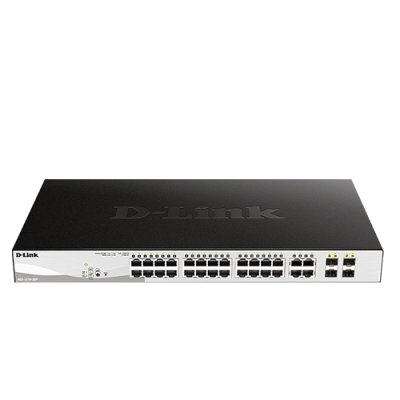

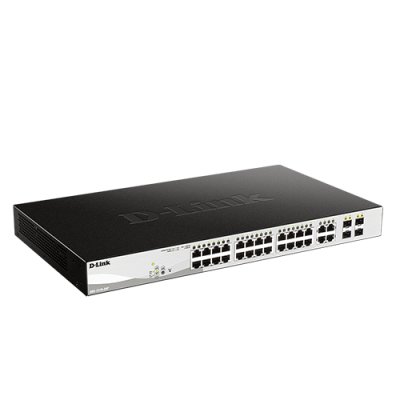

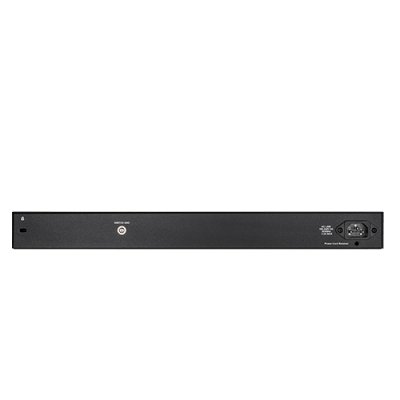

D-Link DGS-1210-28P, 28-port Gigabit Smart Managed PoE (193W) Switch with 4-port Gigabit Combo Uplinks

Brand
 D-Link

Description
 D-Link DGS-F1010P-E, 28-port Gigabit Smart Managed PoE (193W) Switch with 4-port Gigabit Combo Uplinks

SKU
 DGS-1210-28P,

Hardware Version
 F2

Interfaces
 24 10/100/1000BASE-T PoE
 4 100/1000 Mbps GbE/ SFP combo ports

Port Standards
 IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
 IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
 IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic
 IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
 IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic
 IEEE 802.3az Energy Efficient Ethernet (EEE)
 IEEE 802.3x Flow Control
 IEEE 802.3af/at compliance (for PoE ports)

Network Cables
 UTP Cat. 5, Cat. 5e (100 m max.)

Duplex Mode
 Full/Half-duplex for 10/100 Mbps
 Full-duplex for 1000 Mbps

Media Interface Exchange
 Auto MDI/MDIX adjustment for all twisted-pair ports

Switching Fabric
 56 Gbps

Transmission Method
 Transmission

MAC Address Table
 8K entries

Static MAC Addresses
 256 entries

Maximum 64 Byte Packet Forwarding Rate
 41.7 Mpps

Packet Buffer Memory
 4.1 Mbits

CPU Speed
 DDR3 128 MB

Flash Memory
 32 MB

PoE
 PoE Capable Ports :  Ports 1 to 24
 Power Budget) : 193 W

Operating Temperature
 -5 to 50°C (23 to 122°F)

Certifications
 EMI: CE Class A, VCCI Class A, FCC Class A, BSMI, CCC
 Safety: CB, UL, BSMI, CCC

Power Input
 100 to 240 V AC 50/60 Hz internal universal power supply

Max Power Consumption
 263.9 W/100 V
 247.4 W/240 V

Standby Power Consumption
 19.6 W/100 V
 16.6 W/240 V

MTBF
 469,262 hours

Dimensions (L x W x H)
 440 x 250 x 44 mm (17.32 x 9.84 x 1.73 in)

Weight
 3.75 kg (8.27 lbs)

Warranty
 5 Years

Datasheet : DGS-1210 Series Smart Managed Switches
