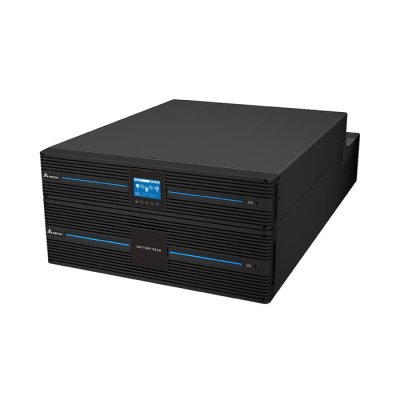

Delta UPS RT-Series 10 KVA/ 10 KW(3U) LCD RACKMOUNT (RT-10K_2Y)

Brand
 Delta

Description
 Delta UPS RT-Series 10 KVA/ 10 KW(3U) LCD RACKMOUNT
 Include External Battery Pack(3U), 1 strings of 12V9Ahx20pcs (No rail Kit)

SKU
 RT-10K_2Y

Power Rating                                             10000Watts / 10000VA

Input
Nominal Voltage                                         200/208/220/230/240 Vac, 1P2W+PE
Voltage Range                                            100 ~ 280V (Single phase, 2-wire + G)                                                            100 ~ 175V with linear de-rating 50 ~ 100%
Frequency                                                 40-70 Hz
Power Factor                                              > 0.99 (100% load)
iTHD                                                         < 3%
Input connection                                         Input terminal x 1

Output
Nominal Voltage                                         200/208/220/230/240 Vac, 1P2W+PE
Voltage e Regulation                                   ±1%
Frequency                                                 50/60Hz ±0.05Hz
Power Factor                                              Unity
Voltage Harmonic Distortion                         2% (linear load)
Overload Capability                                     105%: continuous; 106 ~ 125%, 5 min.; 126 ~ 150%, 1 min.; > 150%: 500ms

Receptacle
Standard Runtime Mode                                C13x6, C19x4, Terminal x 1
                                                               Load bank: C19x1
Extended Runtime Model                              Terminal x 1
                                                               Load bank: Terminal x 1
Communication Interface
Display                                                      Graphical and multi-lingual LCD
Port                                                          MINI Slot x 1, Parallel Port** x 2, USB Port x 1, RS232 Port*** x 1, RS485 Port x 1, REPO/ROO Port x 1,Dry Contact x 4

Environment
 Operating Temperature                               0 ~ 55° C****
 Relative Humidity                                       5 ~ 95% (non-condensing)

Battery Voltage
Standard Runtime Model                               240 Vdc
Extended Runtime Model                              144 Vdc*, 192 ~ 264 Vdc

Charger Current
 Standard Runtime Model                              1.5A (default)
 Extended Runtime Model                             Up to 8A

Dimensions (W x D x H)
 Standard Runtime Model 440 x 665 x 176 mm
 Extended Runtime Model 440 x 430 x 88.2 mm

Weight
 Standard Runtime Model 54 kg
 Extended Runtime Model 10.9 kg

Warranty
 2 Years Onsite ทั่วประเทศ ติดตั้งฟรี
