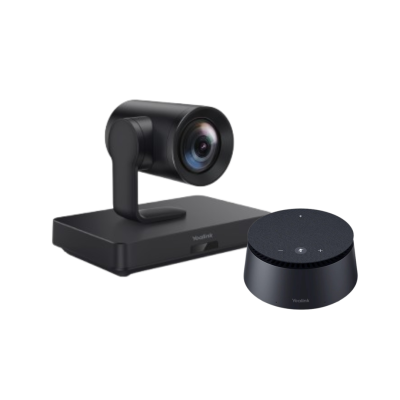

Yealink UVC85-BYOD (UVC85-BYOD-200)

Brand
 Yealink

Description
 Yealink UVC85-BYOD BYOD  Room  System  for  Medium  Rooms (UVC85-BYOD-200)

SKU
 UVC85-BYOD-200

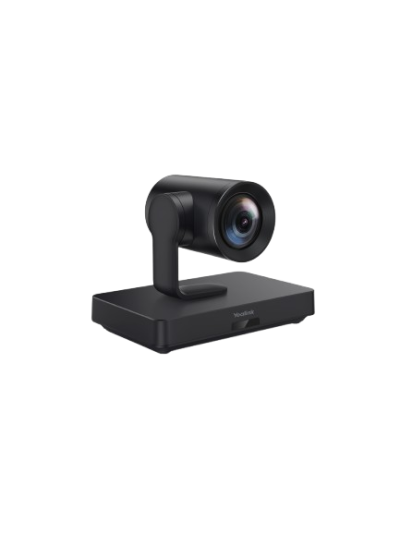

UVC85
 Camera
 8MP Camera
 90° DFOV, 80° HFOV, 50° VFOV
 9 preset positions
 Mechanical PTZ
 Pan: ±100°
 Tilt: +30°, -90°
 36x HD zoom, 12x optical zoom, 3x digital zoom
 Maximum video output resolution: 4K
 Autofocus
 Effective focal length: f=3.4mm-40.4mm
 Aperture: F/1.8-F/3.6
 Exposure: Auto/Manual
 White Balance: Auto Tracking/Manual/One-Push
 Shutter Speed: 1/60~1/10000 sec

AI Features
 Auto-Framing

Physical Interfaces
 1x USB3.0 USB-B port (PC interface)
 1x USB2.0 USB-A port
 1x Internet port
 1x VCH port
 1x HDMI out port
 1x 3.5mm line in port
 1x 3.5mm line out port
 1x DC 48V power port
 1x security lock slot
 1x reset hole

Power Supply
 Average power consumption: 15.45W
 Power adapter: AC 100~240V input, DC 48V/0.7A

 Power input:
 DC power adapter: DC 48V/0.7A - PoE power
 Supports standard PoE power supply (802.3at)

 Power output:
 USB power supply: Not supported

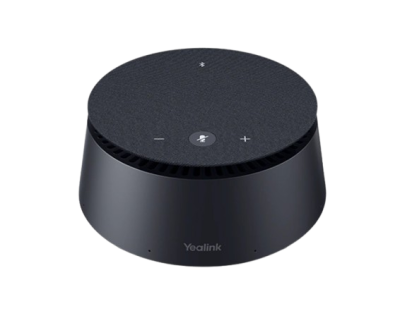

CP50
Microphone
 Built-in 8-microphone array
 Pickup distance: 6m
 Signal-to-noise ratio: 71.8dB SPL @1kHz, A-wighted
 Maximum sound pressure level: 122dB SPL @1KHz, THD<1%
 Sensitivity: -38dB±1dB @ 1KHz (0dB = 1V/Pa)
 Frequency response: 100Hz~12KHz
 Sampling rate: 48KHz
 Bit depth: 16bit

Speaker
 Built-in 1 x 4W speaker
 Frequency Response: 100-20kHz
 Sensitivity: 100dB SPL ± 3dB @0.1m, 1W
 Maximum Power: 6W
 Rated Power: 4W
 Sampling Rate: 48kHz
 Sound Emission Angle (-6dB Attenuation): 120° @2kHz
 Total Harmonic Distortion (THD): THD at 1W, 1kHz < 1%
 Rated Impedance: 4ohms

Audio Cascading
 When equipped with a standard 48V0.7A power supply, the CP50 can cascade up to 3 CPE40 units
 With an optional 48V2A power supply, the CP50 can cascade up to 7 CPE40 units.

Audio Technology
 360° omnidirectional pickup
 Full-duplex technology
 Automatic gain control

 Second-generation AI intelligent audio technology:
 - Intelligent noise cancellation
 - Intelligent echo cancellation
 - Intelligent reverberation cancellation

Hardware Interfaces
 Interface
 - 1×DC48V power interface
 - 1×Codec port: Connects to UVC cameras (e.g., UVC85) or VC main units (e.g., MeetingEye 500)
 - 1×Audio port: Connects to CPE40
 - 1×Type-C port: Connects to a computer

 Wireless
 - Wireless Bluetooth 5.0, stable transmission distance of 10m (unobstructed environment)

Warranty
 24 months
