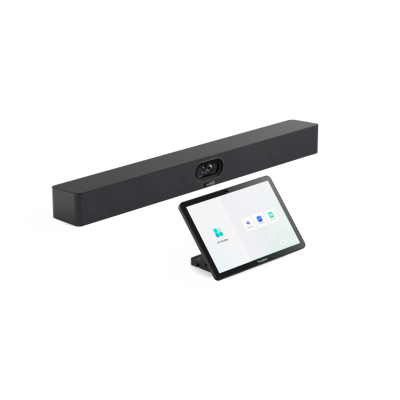

Yealink MeetingBar A40, Touch Console CTP25 (A40-031)

Brand
 Yealink

Description
 Yealink MeetingBar A40, Touch Console CTP25 (A40-031)

SKU
 A40-031

Leading  Platform  Collaboration  Bar  for  small  to  medium  rooms
 1x A40  all-in-one  Collaboration  bar,  power  adapter,  wallmount  bracket  and  cables
 1x CTP25  touch  console,  PD  power  adapter，Desktop  stand  and  cables

MeetingBar A40
System
 Operating System: Android 13

Camera
 Maximum pixels: 2*48MP pixels
 6x digital zoom
 Maximum resolution: 4K
 Video output resolution: 4K30fps, 1080P60fps
 High dynamic range imaging: 10-bit
 Number of cameras: 2

 Intelligence Features
 - IntelliFocus
 - Auto Framing
 - Speaker Tracking
 - People counting
 - Picture in Picture
 - Smart Gallery (Zoom only)

Speakers
 Built-in 2 x 10W speakers
 Maximum sound pressure level: 112dBSPL 10W@0.1m
 Frequency response: 100-16kHz Sensitivity: 86dB SPL @ 1W @ 0.5 meter
 Sampling rate: 48kHz
 Sound emission angle: Forward-facing
 Total Harmonic Distortion (THD): at 10W, 1kHz, ＜5%
 Rated impedance: 4 ohms
 Maximum power: 12W
 Rated power: 10W

Microphones
 Built-in 8 MEMS microphone array
 6-meter pickup distance, 4-meter high-quality pickup distance
 Signal-to-noise ratio: 72dB
 Maximum sound pressure level: 130dBSPL (whole device), 100dBSPL (individual microphone)
 Dynamic range: 28-100dBSPL
 Sensitivity: -38dBV/pa
 Frequency response: 100-20kHz
 Sampling rate: 48K32bit
 Bit depth: 32-bit

Resolution
 Portrait resolution: up to 4K30fps
 Bandwidth requirement: 10Mbps or more

Content sharing
 Up to 4K15 in General Mode
 Teams: 1080p in meeting, 4K local sharing
 Zoom: 1080p

Ports
 1x USB2.0 USB-A port
 2x USB-C port
 1x Ethernet port
 1x Yealink VCH port (RJ-45)
 1x 3.5mm Line-in & Line-out port
 1x Power port
 1x Security lock slot
 1x Reset slot
 2x HDMI-out

Dimensions and weight (W × D × H)
 MeetingBar A40: 650 × 62 × 80 mm
 N.W/CTN: 5.540 kg
 G.W/CTN: 6.086kg

CTP25
Display
 Screen: 10.1 inch
 Display Type: IPS
 Resolution: 1280 x 800
 Contrast ratio: 1000:1
 Brightness: 350 cd/㎡ (typical)
 Viewing angle (horizontal/vertical): 178°(H)/178°(V)
 Touchpoints: Multi-points capacitive touch support
 Anti-glare Anti-fingerprint

Audio
 Built-in Ultrasound Unit

Wireless
 Wi-Fi 6 802.11a/b/g/n/ac/ax, Bluetooth 5.0

Network
 VLAN, 802.1P/Q, and Diffserv, 802.1X, and LLDP-MED, HTTPS

Power
 Power Consumption: - Standby: 5 W - Average: 7.3 W - Peak: 15.2 W
 Power Adapter: 65W PD
 PoE: IEEE 802.3af and above

Dimensions and weight
 Dimension: 242.95 × 27.50 × 161.95 mm
 Weight: 0.683 kg

Warranty
 24 months

(Teams/zoom/Device mode)
